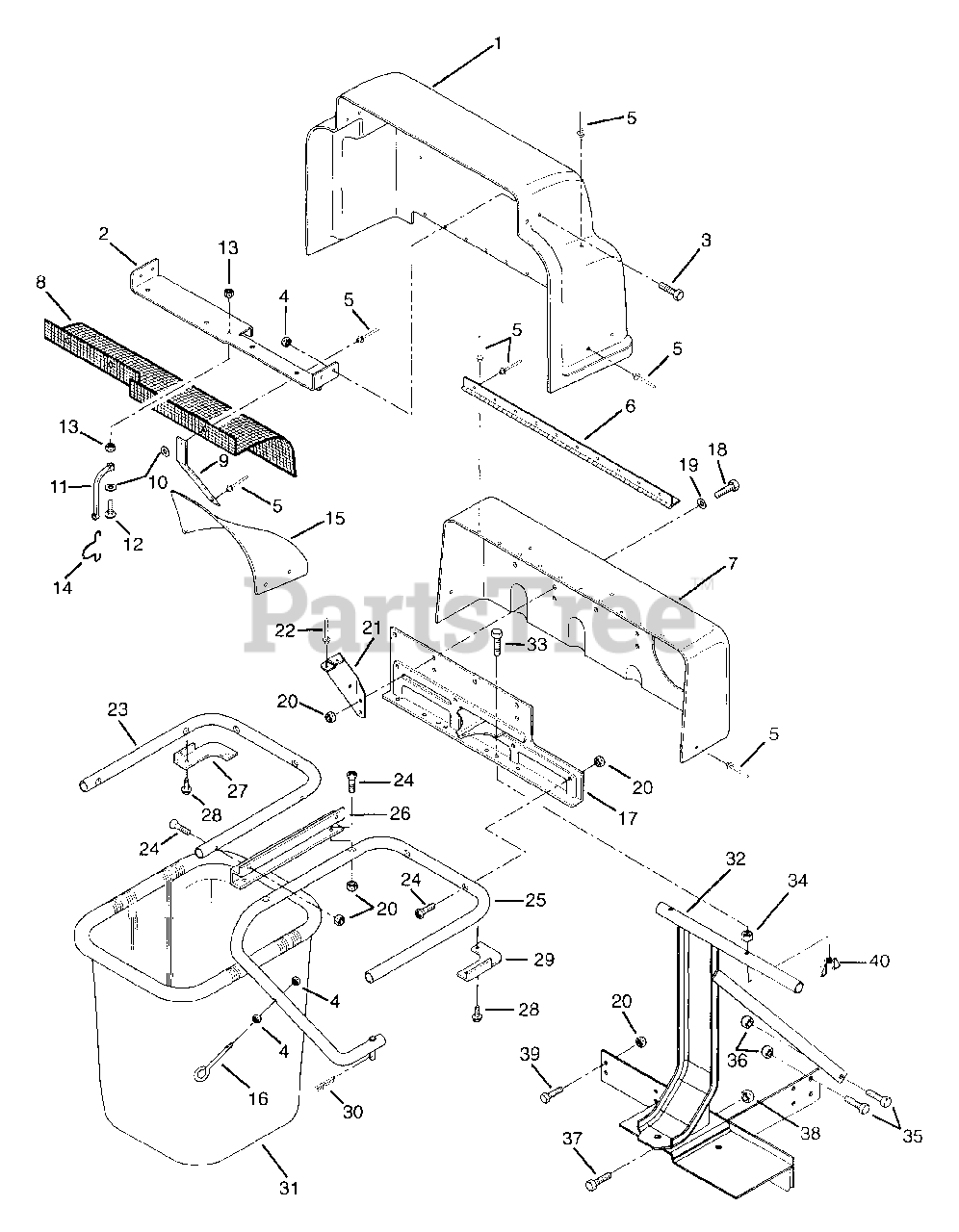

815004 - Ariens EZR 40" 2-Bucket Grass Bagger (SN: 000101 & Above) Bagger Parts Diagram

EZR 40" 2-Bucket Grass Bagger

Bagger Parts Diagram

  • Title

1

Ariens 52705600

HINGED COVER W/DECALS

$

$

Not available

2

Ariens 02730600

COVER BRACKET

$

$

Not available

3

Ariens 05902800

BLT-HEX .25-20X.50 PL GR2
(Superseded to 05947900)

$0.99

$

In Stock, Qty 20+

0

4

Ariens 06504000

NUT-LK-CTR .250-20 PL
(Superseded to 06529700)

$0.99

$

In Stock, Qty 20+

0

5

Ariens 06802500

RVT-POP .187X.402 DOME ST

$1.49

$

In Stock, Qty 10

0

6

Ariens 02725300

HINGE

$

$

Not available

7

Ariens 52705700

STATIONARY COVER

$

$

Not available

8

Ariens 02730500

SCREEN

$

$

Not available

9

Ariens 02731100

BRACE

$

$

Not available

10

Ariens 06406800

WSHR-FL-STL .194X.492X.047 PL
(Superseded to 06444400)

$1.99

$

Usually ships in 4-12 days

0

11

Ariens 07507500

BATTERY STRAP

$14.99

$

Usually ships in 4-12 days

0

12

Ariens 06101600

SCR-MCH 10-24X.88 SLRH PL
(Superseded to 06119200)

$

$

Not available

13

Ariens 06504100

NUT-LK TOP 10-24 PL

$

$

Not available

14

Ariens 02738100

HOOK

$6.99

$

In Stock, Qty 5

0

15

Ariens 02731200

BAFFLE

$

$

Not available

16

Ariens 02432700

EYEBOLT
(Superseded to 02440100)

$10.99

$

Usually ships in 4-12 days

0

17

Ariens 02745800

MOUNTING BRACKET

$

$

Not available

18

Ariens 05903400

BLT-HEX .31-18X.88 PL GR2
(Superseded to 05947800)

$2.49

$

In Stock, only 2 left!

0

19

Ariens 06407900

WSHR-FL-STL .344X1.125X.063PL
(Superseded to 06425500)

$2.49

$

In Stock, only 2 left!

0

20

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

21

Ariens 02725200

BRACE

$

$

Not available

22

Ariens 06803800

RVT-POP.187X.527 DOME ST

$1.49

$

In Stock, Qty 20+

0

23

Ariens 02724600

CENTER TUBE
(Superseded to 02724651)

$44.99

$

Usually ships in 4-12 days

0

24

Ariens 06105200

SCR-MCH .31-18X1.50 CROVCNTRS
(Superseded to 06119100)

$

$

Not available

25

Ariens 02724800

RIGHT TUBE

$

$

Not available

26

Ariens 02724700

TUBE BRACKET

$

$

Not available

27

Ariens 02725100

LH CORNER BRACKET

$

$

Not available

28

Ariens 07401400

SCR-TAP .312-18X.50 HWH PL TR
(Superseded to 07411500)

$1.49

$

In Stock, Qty 20+

0

29

Ariens 02725000

RH CORNER BRACKET

$

$

Not available

30

Ariens 06701000

PIN-HAIR INT .08X.38X1.42 YWZC
(Superseded to 06700224)

$2.49

$

Usually ships in 4-12 days

0

31

Ariens 02724400

GRASS BAGGER BASKET

$79.99

$

Usually ships in 4-12 days

0

32

Ariens 01531600

BAGGER FRAME
(Superseded to 01586951)

$

$

Not available

33

Ariens 05921500

BLT-HEX .31-18X1.50 GR2 YWZC

$2.49

$

Usually ships in 4-12 days

0

34

Ariens 06501500

NUT-HEX .312-18
(Superseded to 06529200)

$0.99

$

In Stock, Qty 10

0

35

Ariens 05903800

BLT-HEX .38-16X1.25 GR5
(Superseded to 05958000)

$1.49

$

In Stock, Qty 20+

0

36

Ariens 06513500

NUT-LK-NYL .375-16 PL
(Superseded to 06535800)

$2.49

$

In Stock, only 3 left!

0

37

Ariens 05947100

@BLT-HEX .50-13X1.00 GR5 YWZC
(Superseded to 05901715)

$2.49

$

In Stock, Qty 7

0

38

Ariens 06504600

NUT-LK-CTR .50-13
(Superseded to 06536300)

$3.99

$

In Stock, only 2 left!

0

39

Ariens 05946900

@BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

40

Ariens 06511300

NUT-WING W/INSERT .312 - 18
(Superseded to 06537100)

$5.99

$

In Stock, only 1 left!

0
