815003 - Gravely Snow Head for ZT Series (SN: 000101 - 000499) Mount Kit PN 61511000 Parts Diagram

Snow Head for ZT Series

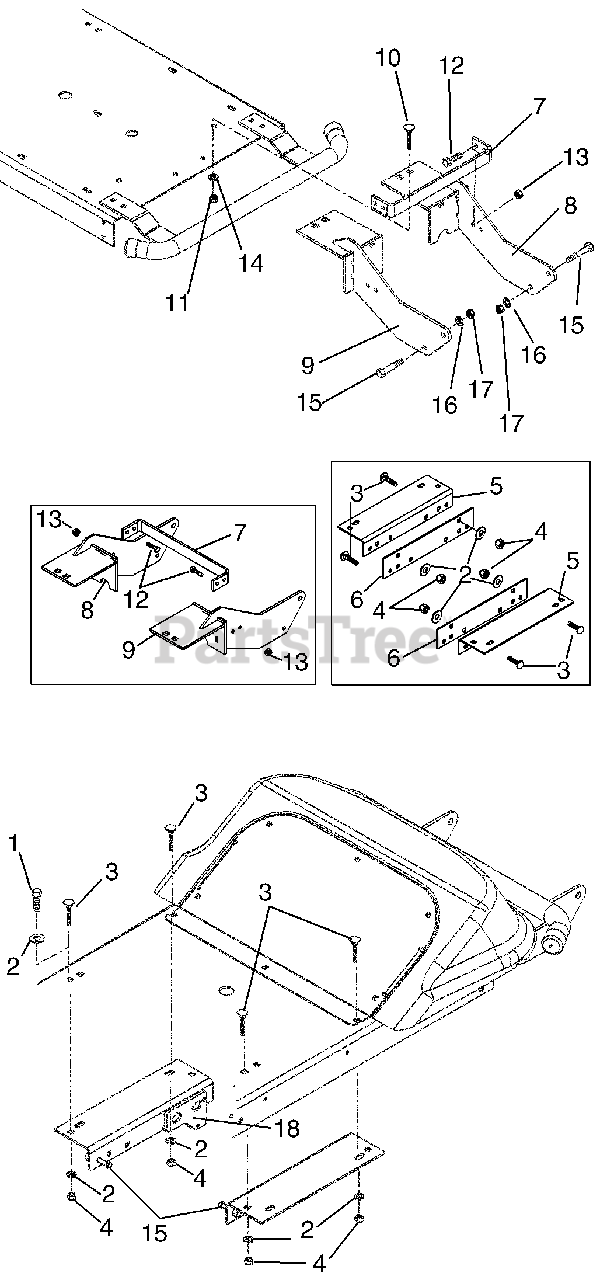

Mount Kit PN 61511000 Parts Diagram

  • Title

Gravely 61511000

Mount Kit

$

$

Not available

1

43001

Bolt-Hex .38-16 x 1.00

Note: Item 1 and two (2) of item 2 are used only on models 915008,009,010.

$

$

Not available

2

43070

Washer, .38

Note: Item 1 and two (2) of item 2 are used only on models 915008,009,010.

$

$

Not available

3

Gravely 43350

Bolt, Carriage .38-16 x 1.00 Grade 5

$

$

Not available

4

Gravely HA21362

Nut, .38-16 Lock (Nylock)

Note: (Nylock)

$

$

Not available

5

Gravely 24688

Bracket, Frame

$

$

Not available

6

Gravely 24687

Bracket, Extension

Note: (Models w/ 48" deck)

$

$

Not available

7

Gravely 24686

Bracket, Hitch

$

$

Not available

8

Gravely 64057

Assembly, Attachment Plate, Left Hand

$

$

Not available

9

Gravely 64056

Assembly, Attachment Plate, Right Hand

$

$

Not available

10

Gravely 47660

Bolt, Carriage .50-13 x 1.50 Grade 5

$

$

Not available

11

Gravely 712-0206

Nut, Hex .50-13

$

$

Not available

12

Gravely 43063

Bolt, Hex .312-18 x 1.00 Grade 5

$

$

Not available

13

Gravely 47810

Nut, Hex .312-18 Nylock

$

$

Not available

14

Gravely 43353

Washer, Lock Spring .50

$

$

Not available

15

Bolt, Shoulder, 3/8"

Bolt, Shoulder, 3/8"

Note: In Main Bag

$

$

Not available

16

Washer, Lock, 3/8"

Washer, Lock, 3/8"

Note: In Main Bag

$

$

Not available

17

Nut, Lock, 3/8"

Nut, Lock, 3/8"

Note: In Main Bag

$

$

Not available

18

Hanger Bracket

Hanger Bracket

Note: In Main Bag

$

$

Not available

47788

Reflector

Note: Not Shown

$

$

Not available
