815003 - Ariens EZR Snow Thrower Attachment (SN: 000101 & Above) Mount Kit PN 61511000 Parts Diagram

EZR Snow Thrower Attachment

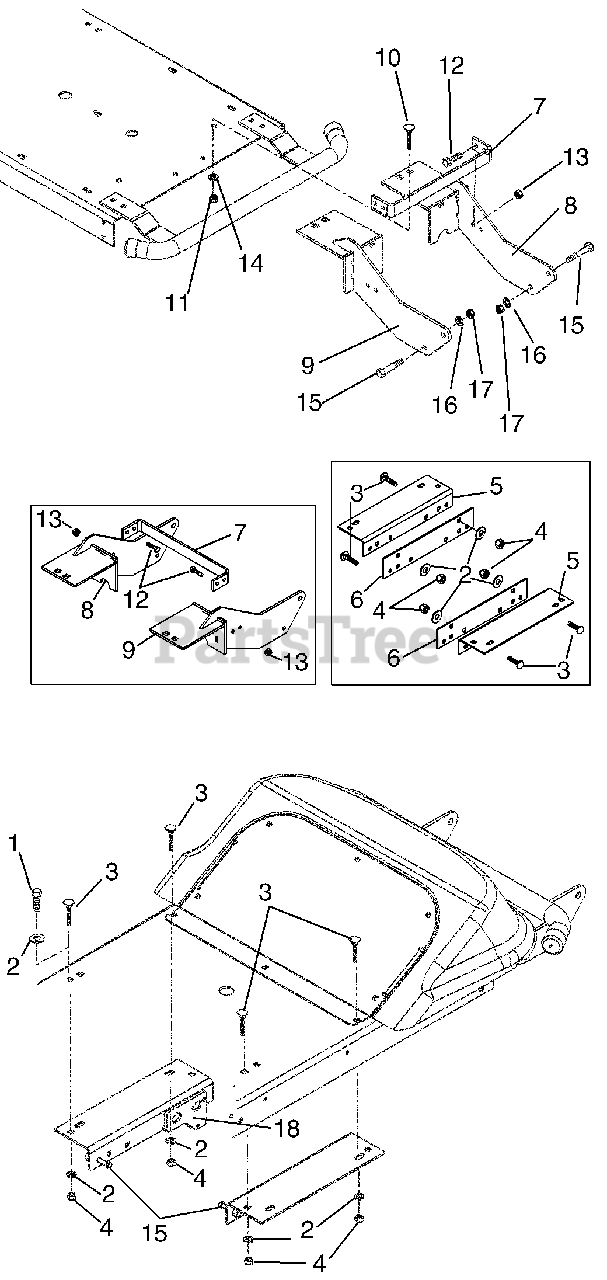

Mount Kit PN 61511000 Parts Diagram

  • Title

Ariens 61511000

MOUNT BRACKETRY - SNOW BLOWER

Note: (615-11000 - Agri-Fab Part Number)

$

$

Not available

1

Ariens 43001

Bolt-Hex .38-16 x 1.00

Note: Item 1 and two (2) of item 2 are used only on models 915008,009,010.

$

$

Not available

2

Ariens 43070

Washer, .38

Note: Item 1 and two (2) of item 2 are used only on models 915008,009,010.

$

$

Not available

3

Ariens 43350

Bolt, Carriage .38-16 x 1.00 Grade 5

Note: Agri-Fab Part Number

$

$

Not available

4

Ariens HA21362

Nut, .38-16 Lock (Nylock)

Note: Agri-Fab Part Number

$

$

Not available

5

Ariens 24688

Bracket, Frame

Note: Agri-Fab Part Number

$

$

Not available

6

Ariens 24687

Bracket, Extension

Note: (Models w/ 48" deck)

$

$

Not available

7

Ariens 24686

Bracket, Hitch

Note: Agri-Fab Part Number

$

$

Not available

8

Ariens 06405700

WSHR-FL-STL .323X.625X.062 PL
(Superseded to 06436700)

Note: Agri-Fab Part Number

$1.49

$

In Stock, only 2 left!

0

9

Ariens 06405600

WSHR-FL-STL .505X.880X.072 PL
(Superseded to 06436600)

Note: Agri-Fab Part Number

$3.99

$

Usually ships in 4-12 days

0

10

Ariens 47660

Bolt, Carriage .50-13 x 1.50 Grade 5

Note: Agri-Fab Part Number

$

$

Not available

11

Ariens 712-0206

Nut, Hex .50-13

Note: Agri-Fab Part Number

$

$

Not available

12

Ariens 43063

Bolt, Hex .312-18 x 1.00 Grade 5

Note: Agri-Fab Part Number

$

$

Not available

13

Ariens 47810

Nut, Hex .312-18 Nylock

Note: Agri-Fab Part Number

$

$

Not available

14

Ariens 43353

Washer, Lock Spring .50

Note: Agri-Fab Part Number

$

$

Not available

15

Bolt, Shoulder, 3/8"

Note: In Main Bag

$

$

Not available

16

Washer, Lock, 3/8"

Note: In Main Bag

$

$

Not available

17

Nut, Lock, 3/8"

Note: In Main Bag

$

$

Not available

18

Hanger Bracket

Note: In Main Bag

$

$

Not available

18

Ariens 00272000

REFLECTOR,TAIL(AGRI-FAB)

Note: (47788 - Agri-Fab Part Number) Not Shown

$

$

Not available
