815 (590-815-100) - Cub Cadet Hydraulic Valve Kit Accessory Valve Kit Parts Diagram

Hydraulic Valve Kit

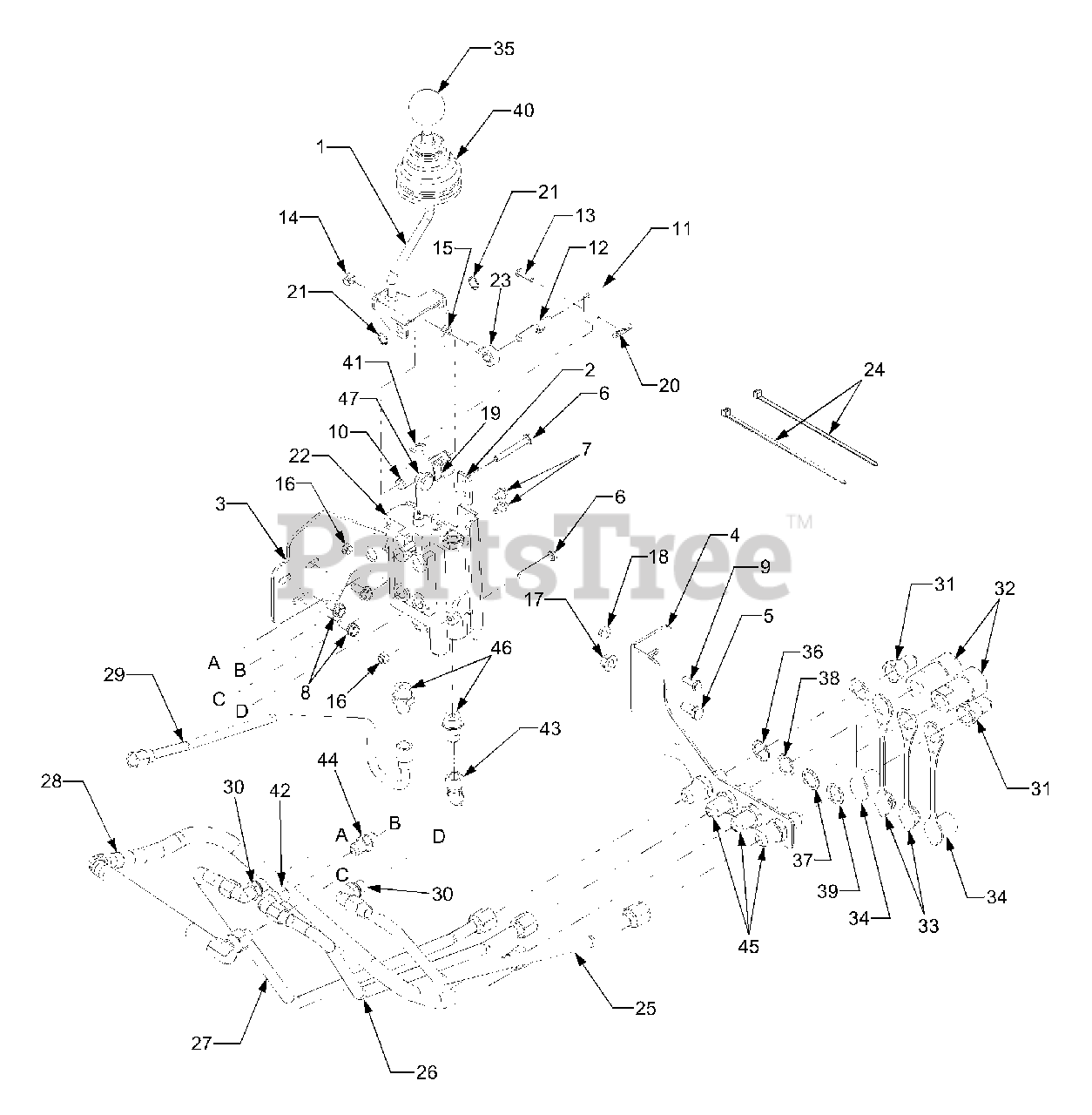

Accessory Valve Kit Parts Diagram

  • Title

1

Cub Cadet 603-04064

Handle Assembly, Valve
(Superseded to 603-04064A)

$

$

Not available

2

Cub Cadet 603-0813

Bracket Assembly,Pivot
(Superseded to 603-0813A)

$41.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 703-05101-0637

Bracket, Valve Mounting

$

$

Not available

4

Cub Cadet 703-05102-0637

Bracket, Fitting Mount

$

$

Not available

5

Cub Cadet 710-0216

Screw, Hex Cap, 3/8-16 x .75 GR5

$4.49

$

In Stock, Qty 16

0

6

Cub Cadet 710-0501

Screw, Hex Cap , 1/4-20, 2.00, Gr5

$7.49

$

Usually ships in 3-6 days

0

7

Cub Cadet 710-0599

Screw, Hex Wash. Hd. Tapp 1/4-20 x .50

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 710-1260A

Screw, Hex Wash. Hd. Tapp 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 710-3015

Screw, Hex Cap 1/4-20 x .75 GR5

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet 711-1611

Shaft, Valve Pivot

$61.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 711-1624

Link, Valve Spool
(Superseded to 711-1624A)

$

$

Not available

12

Cub Cadet 711-1637

Stud, Ball Joint Pivot

$33.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 711-1642

Pin, Clevis, .199 x .8125

$

$

Not available

14

Cub Cadet 712-0237

Nut, Hex Lock, 5/16-24

$4.99

$

In Stock, only 4 left!

0

15

Cub Cadet 712-0256

Nut, Jam, 5/16-24, Gr2

$

$

Not available

16

Cub Cadet 712-0324

Nut, Hex Nylon Lock, 1/4-20, Gr8

$3.99

$

In Stock, Qty 16

0

17

Cub Cadet 712-0431

Nut, Hex Flange Lock, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

18

Cub Cadet 712-3027

Nut, Hex Flange Lock, 1/4-20
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 18

0

19

Cub Cadet 713-3000

Link, Chain
(Superseded to 913-3000)

$

$

Not available

20

Cub Cadet 714-0104

Pin, Internal Cotter

$4.49

$

In Stock, Qty 20+

0

21

Cub Cadet 716-0865

Ring, Snap

$4.49

$

In Stock, only 1 left!

0

22

Cub Cadet 718-3140

Valve, Control

$1039.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 723-0488

Ball Joint, .3125 Id x 5/16-24
(Superseded to WM-489089)

$

$

Not available

24

Cub Cadet 725-0157

Tie, Cable

$3.99

$

In Stock, only 2 left!

0

25

Cub Cadet 727-04034

Tube, Hydraulic - Bucket Return

$

$

Not available

26

Cub Cadet 727-04035

Tube, Hydraulic - Bucket Lift

$

$

Not available

27

Cub Cadet 727-04036

Tube, Hydraulic - Boom Lift

$

$

Not available

28

Cub Cadet 727-04037

Hose, Hydraulic - Boom Return

$101.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 727-04038

Tube, Hydraulic - Valve Return

$

$

Not available

30

Cub Cadet 727-3012

Fitting, 90° 6-6 Orb

$26.99

$

In Stock, only 4 left!

0

31

Cub Cadet 727-3224

Coupling, Male Hydraulic, 3/8-18

$118.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 727-3225

Coupling, Female Hydr. 3/8-18

$89.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 727-3261

Plug, Hydraulic Coupler - Male

$

$

Not available

34

Cub Cadet 727-3262

Plug, Hydraulic Coupler - Female

$

$

Not available

35

Cub Cadet 731-3353

Knob, 1.625 Dia x 3/8-16 Thd

$

$

Not available

36

Cub Cadet 731-3374

Washer, Indicator - Red

$11.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 731-3375

Washer, Indicator - Yellow

$

$

Not available

38

Cub Cadet 731-3376

Washer, Indicator - Green

$

$

Not available

39

Cub Cadet 731-3377

Washer, Indicator - Blue

$

$

Not available

40

Cub Cadet 735-0696

Joystick Boot

$

$

Not available

41

Cub Cadet 736-0141

Washer, Spring, .45 x .75 x .015
(Superseded to 936-0141)

$6.99

$

Usually ships in 3-6 days

0

42

Cub Cadet 737-04033

Fitting, 90 Degree, 6 -6 Swivel
(Superseded to 937-04033)

$

$

Not available

43

Cub Cadet 737-04052

Fitting, 45 Degree, 6 -6 Swivel

$

$

Not available

44

Cub Cadet 737-3125

Fitting, Straight - 6 Orb

$

$

Not available

45

Cub Cadet 737-3129

Fitting, Bulkhead 3/4-16 x 3/8-18

$

$

Not available

46

Cub Cadet 737-3132

Fitting, Straight - 6 -8 Orb

$

$

Not available

47

Cub Cadet 750-0845

Spacer, .34 ID x .5 OD x .31
(Superseded to 750-0808)

$

$

Not available
