81271 (Z 3500 HLX) - Lawn-Boy Precision Zero-Turn Mower (SN: 280000001 - 280999999) (2008) STARTER ASSEMBLY KAWASAKI FH641V-AS31 Parts Diagram

Precision Zero-Turn Mower

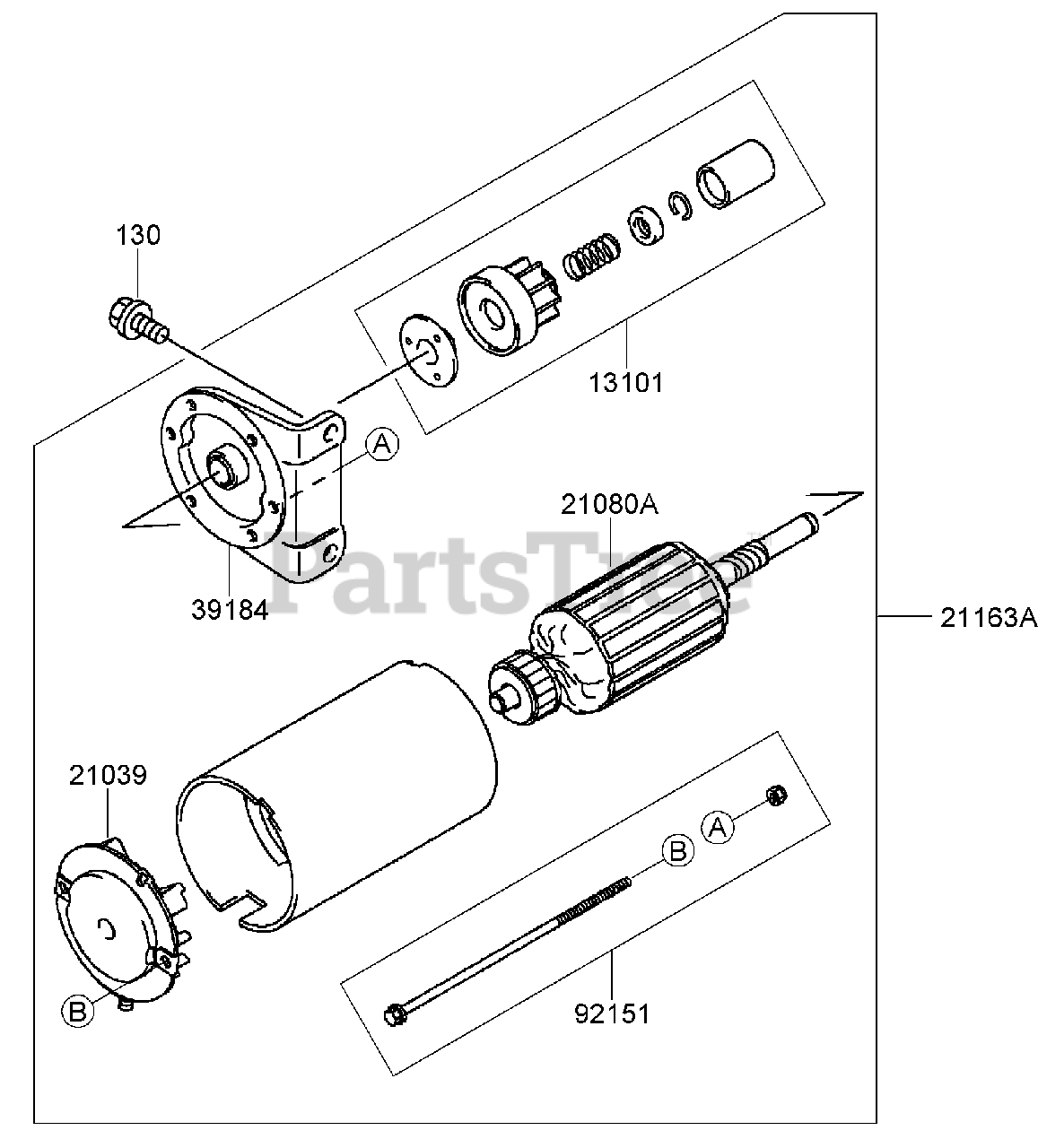

STARTER ASSEMBLY KAWASAKI FH641V-AS31 Parts Diagram

  • Title
13101

Lawn-Boy 13101-7003

GEAR ASM

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

21039

Lawn-Boy 21039-7004

Brush

Note: Obtain parts from www.kawpowerepc.com

$

$

Currently unavailable

21080A

Lawn-Boy 21080-7005

ARMATURE

Note: Obtain parts from www.kawpowerepc.com

$

$

Currently unavailable

21163A

Lawn-Boy 21163-7022

STARTER-ELECTRIC

Note: Obtain parts from www.kawpowerepc.com

$

$

Currently unavailable

39184

Lawn-Boy 39184-7004

BRACKET ASM

Note: Obtain parts from www.kawpowerepc.com

$

$

Currently unavailable

92151

Lawn-Boy 92151-7013

Bolt

Note: Obtain parts from www.kawpowerepc.com

$

$

Currently unavailable

130

Lawn-Boy 130B0816

Bolt-Flanged (8X16)

Note: Obtain parts from www.kawpowerepc.com

$

$

Currently unavailable
