81271 (Z 3500 HLX) - Lawn-Boy Precision Zero-Turn Mower (SN: 280000001 - 280999999) (2008) PISTON AND CRANKSHAFT ASSEMBLY KAWASAKI FH641V-AS31 Parts Diagram

Precision Zero-Turn Mower

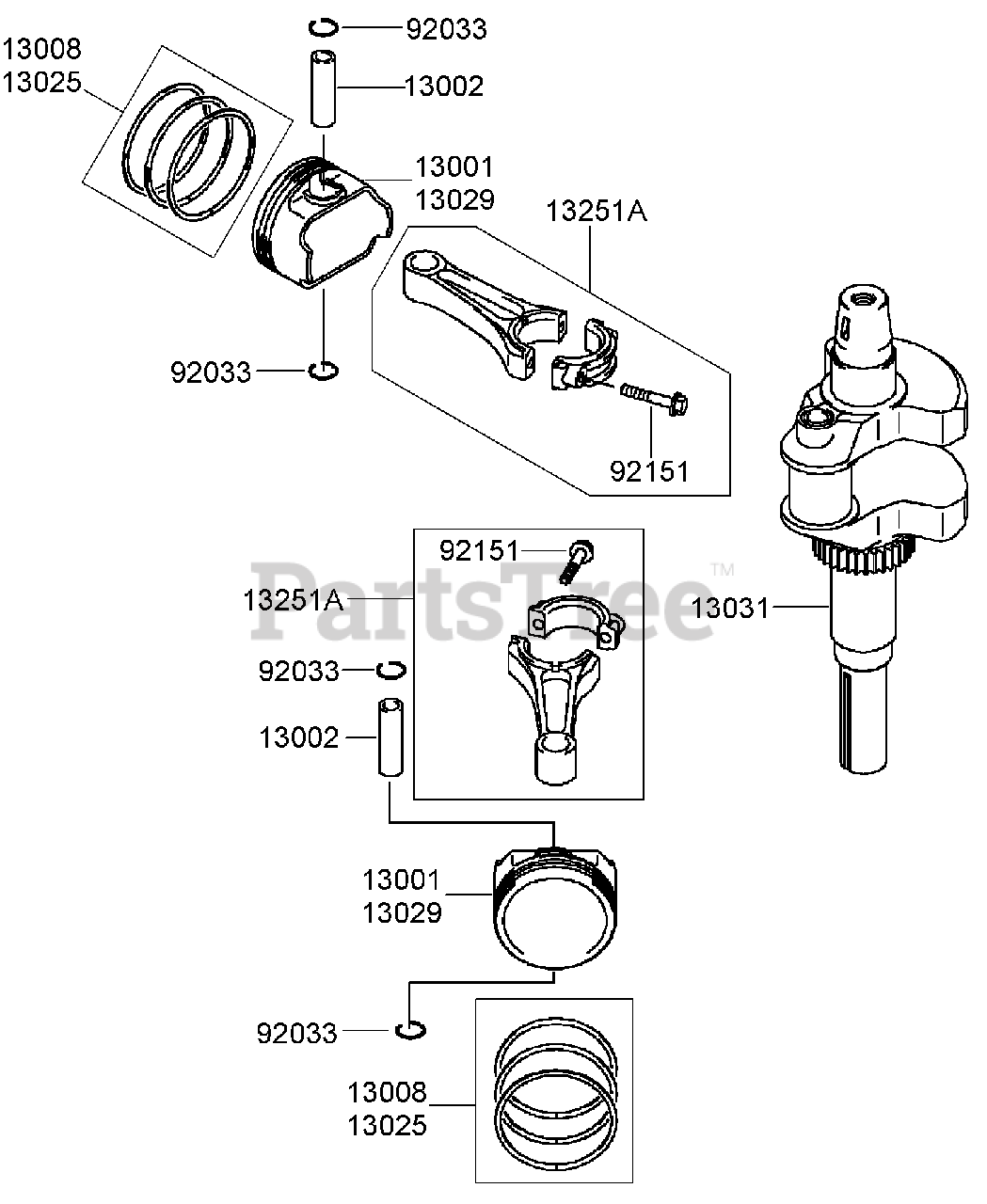

PISTON AND CRANKSHAFT ASSEMBLY KAWASAKI FH641V-AS31 Parts Diagram

  • Title
13001

Lawn-Boy 13001-7007

Piston-Engine

Note: Obtain parts from www.kawpowerepc.com

$

$

Currently unavailable

13002

Lawn-Boy 13002-7001

Pin-Piston

Note: Obtain parts from www.kawpowerepc.com

$

$

Currently unavailable

13008

Lawn-Boy 13008-6058

Piston Ring Set

Note: Obtain parts from www.kawpowerepc.com

$

$

Currently unavailable

13025

Lawn-Boy 13025-7002

Piston Ring Set (L, 0.50)

Note: Obtain parts from www.kawpowerepc.com

$

$

Currently unavailable

13029

Lawn-Boy 13029-7003

Piston-Engine (L, 0.50)

Note: Obtain parts from www.kawpowerepc.com

$

$

Currently unavailable

13031

Lawn-Boy 13031-7048

CRANKSHAFT

Note: Obtain parts from www.kawpowerepc.com

$

$

Currently unavailable

13251A

Lawn-Boy 13251-7016

CONNECTING ROD ASM

Note: Obtain parts from www.kawpowerepc.com

$

$

Currently unavailable

92033

Lawn-Boy 92033-7002

Ring-Snap

Note: Obtain parts from www.kawpowerepc.com

$

$

Currently unavailable

92151

Lawn-Boy 92151-7017

BOLT (6X35)

Note: Obtain parts from www.kawpowerepc.com

$

$

Currently unavailable
