81271 (Z 3500 HLX) - Lawn-Boy Precision Zero-Turn Mower (SN: 280000001 - 280999999) (2008) HYDRO DRIVE ASSEMBLY Parts Diagram

Precision Zero-Turn Mower

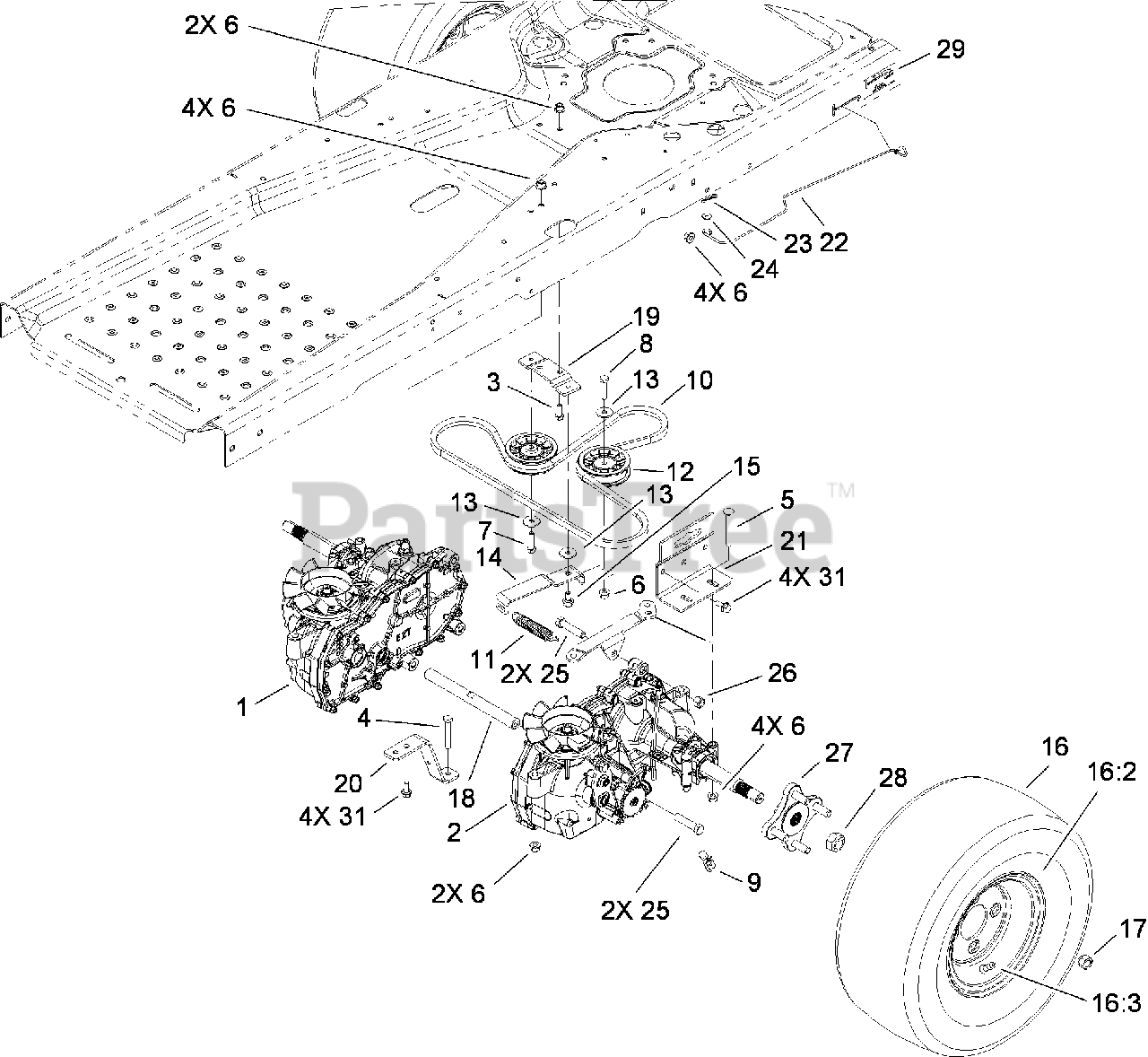

HYDRO DRIVE ASSEMBLY Parts Diagram

  • Title
1

Lawn-Boy 110-6771

HYDRO-RH
(Superseded to 120-5501)

$1860.99

$

Usually ships in 3-6 days

0

2

Lawn-Boy 110-6770

HYDRO-LH
(Superseded to 120-5500)

$1860.99

$

Usually ships in 3-6 days

0

3

Lawn-Boy 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

4

Lawn-Boy 322-11

SCREW-HH
(Superseded to 120-9738)

$1.49

$

In Stock, Qty 20+

0

5

Lawn-Boy 3230-9

SCREW-CARR

$3.99

$

In Stock, Qty 5

0

6

Lawn-Boy 104-8300

NUT-FLANGE, NI

$1.49

$

In Stock, Qty 20+

0

7

Lawn-Boy 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

8

Lawn-Boy 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

9

Lawn-Boy 110-6677

CLIP-SPRING

$2.49

$

In Stock, only 2 left!

0

10

$30.99

$

In Stock, Qty 7

0

11

Lawn-Boy 63-1590

SPRING-IDLER

$19.99

$

Usually ships in 3-6 days

0

12

Lawn-Boy 110-6775

PULLEY-IDLER

$35.99

$

In Stock, Qty 5

0

13

Lawn-Boy 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 9

0

14

Lawn-Boy 110-1925

ARM-IDLER

$24.99

$

In Stock, only 1 left!

0

15

Lawn-Boy 37-8771

BOLT-SHOULDER

$5.49

$

In Stock, only 3 left!

0

16

Lawn-Boy 115-2485

WHEEL AND TIRE ASM

$526.99

$

Usually ships in 3-6 days

0

16:2

Rim-Wheel

Note: Not serviced separately

$

$

Not available

16:3

Lawn-Boy 232-27

STEM-VALVE
(Superseded to 5108)

$6.99

$

In Stock, Qty 17

0

16:4

Lawn-Boy 232-37

TUBE

Note: Not illustrated

$33.99

$

In Stock, only 1 left!

0

17

Lawn-Boy 242-50

NUT-LUG

$1.99

$

In Stock, Qty 20+

0

18

Lawn-Boy 110-6807

SHAFT-CROSS

$43.99

$

In Stock, only 4 left!

0

19

Lawn-Boy 110-1926

PLATE-PIVOT

$12.99

$

Usually ships in 3-6 days

0

20

Lawn-Boy 110-6806-03

STRAP-TORQUE

$15.99

$

In Stock, only 1 left!

0

21

Lawn-Boy 110-6878-03

SUPPORT-HYDRO

$

$

Not available

22

Lawn-Boy 110-6787

ROD-BYPASS

$15.99

$

In Stock, only 2 left!

0

23

Lawn-Boy 1-806003

PIN-COTTER, HAIR

$1.49

$

In Stock, Qty 20+

0

24

Lawn-Boy 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

25

Lawn-Boy 324-8

SCREW-HH

$5.99

$

In Stock, Qty 20+

0

26

Lawn-Boy 3296-48

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

27

$

$

Not available

28

$5.49

$

Usually ships in 3-6 days

0

29

Lawn-Boy 114-8532

DECAL-TRANSPORT, LH

$4.99

$

Usually ships in 3-6 days

0

30

Lawn-Boy 114-8531

DECAL-TRANSPORT, RH

Note: Not illustrated

$4.99

$

Usually ships in 3-6 days

0

31

Lawn-Boy 3234-47

SCREW-HHF

$2.99

$

In Stock, Qty 17

0
