81271 (Z 3500 HLX) - Lawn-Boy Precision Zero-Turn Mower (SN: 280000001 - 280999999) (2008) ENGINE AND CLUTCH ASSEMBLY Parts Diagram

Precision Zero-Turn Mower

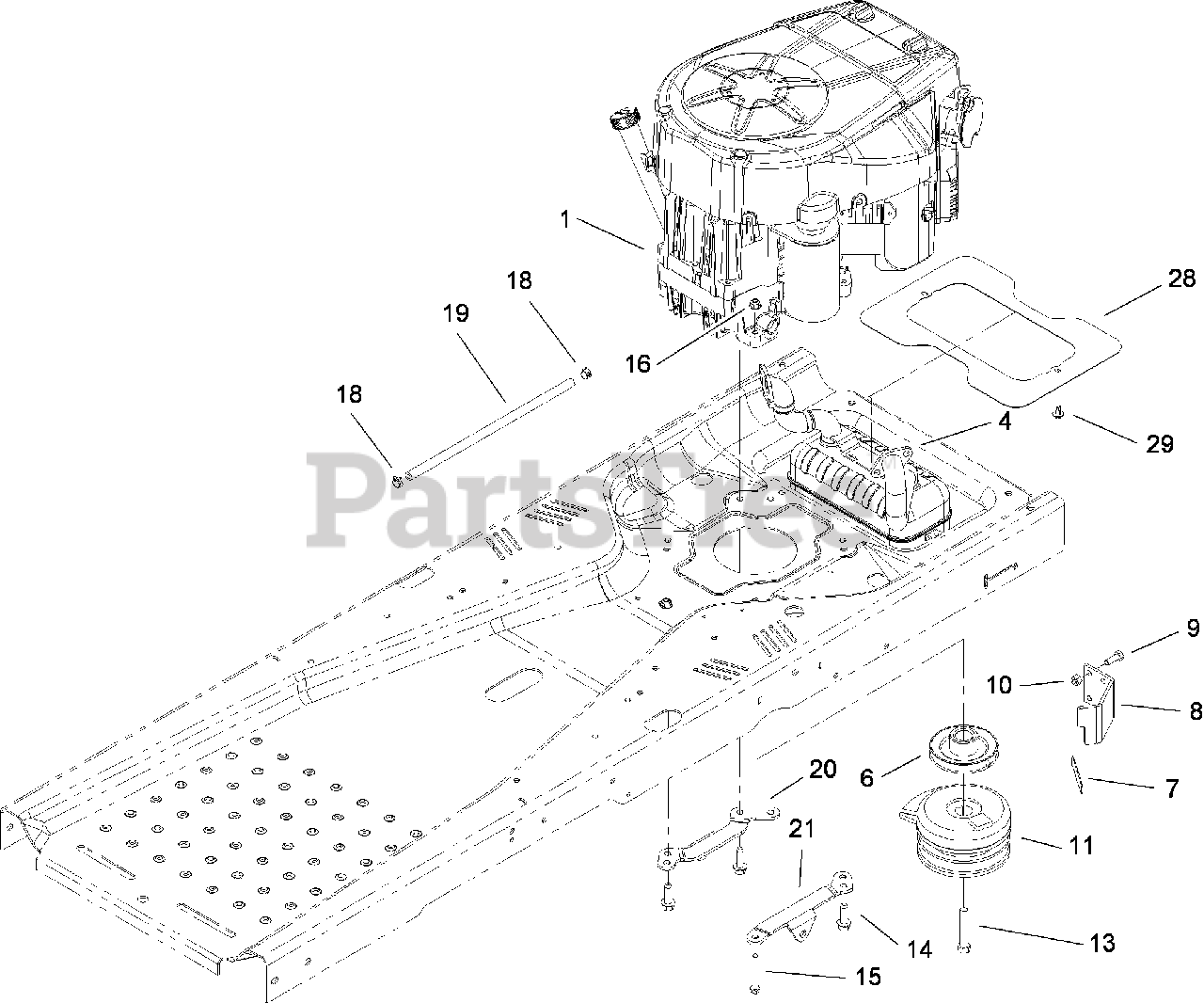

ENGINE AND CLUTCH ASSEMBLY Parts Diagram

  • Title

1

ENGINE-KAWASAKI, FH641V-AS31

Note: Not serviced separately Obtain parts from www.kawpowerepc.com

$

$

Not available

4

Lawn-Boy 112-4023

MUFFLER-KAWASAKI TWIN

$219.99

$

Usually ships in 3-6 days

0

6

Lawn-Boy 114-1622

PULLEY-ENGINE

$135.99

$

Usually ships in 3-6 days

0

7

Lawn-Boy 112-4033

BUMPER-PAD

$7.99

$

Usually ships in 3-6 days

0

8

Lawn-Boy 110-6896

STOP-CLUTCH

$12.99

$

Usually ships in 3-6 days

0

9

Lawn-Boy 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

10

Lawn-Boy 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

11

Lawn-Boy 110-6766

CLUTCH-ELECTRIC, PTO

$573.99

$

Usually ships in 3-6 days

0

13

Lawn-Boy 3212-11

SCREW-HH

$8.49

$

In Stock, only 2 left!

0

14

Lawn-Boy 32144-109

SCREW

$4.99

$

In Stock, only 3 left!

0

15

Lawn-Boy 322-9

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

16

Lawn-Boy 104-8300

NUT-FLANGE, NI

$1.49

$

In Stock, Qty 20+

0

18

Lawn-Boy 2412-98

CLAMP

$1.49

$

In Stock, Qty 20+

0

19

Lawn-Boy 112-9836

HOSE-FUEL

$24.99

$

Usually ships in 3-6 days

0

20

Lawn-Boy 110-6798

SUPPORT-HYDRO, RH

$29.99

$

In Stock, Qty 16

0

21

Lawn-Boy 110-6799

SUPPORT-HYDRO, LH

$29.99

$

In Stock, Qty 17

0

28

Lawn-Boy 114-8544

SHIELD-HEAT
(Superseded to 114-8544-03)

$19.99

$

In Stock, only 4 left!

0

29

Lawn-Boy 46-8560

SCREW-HHF

$1.99

$

In Stock, Qty 20+
