81271 (Z 3500 HLX) - Lawn-Boy Precision Zero-Turn Mower (SN: 280000001 - 280999999) (2008) CONTROL EQUIPMENT ASSEMBLY KAWASAKI FH641V-AS31 Parts Diagram

Precision Zero-Turn Mower

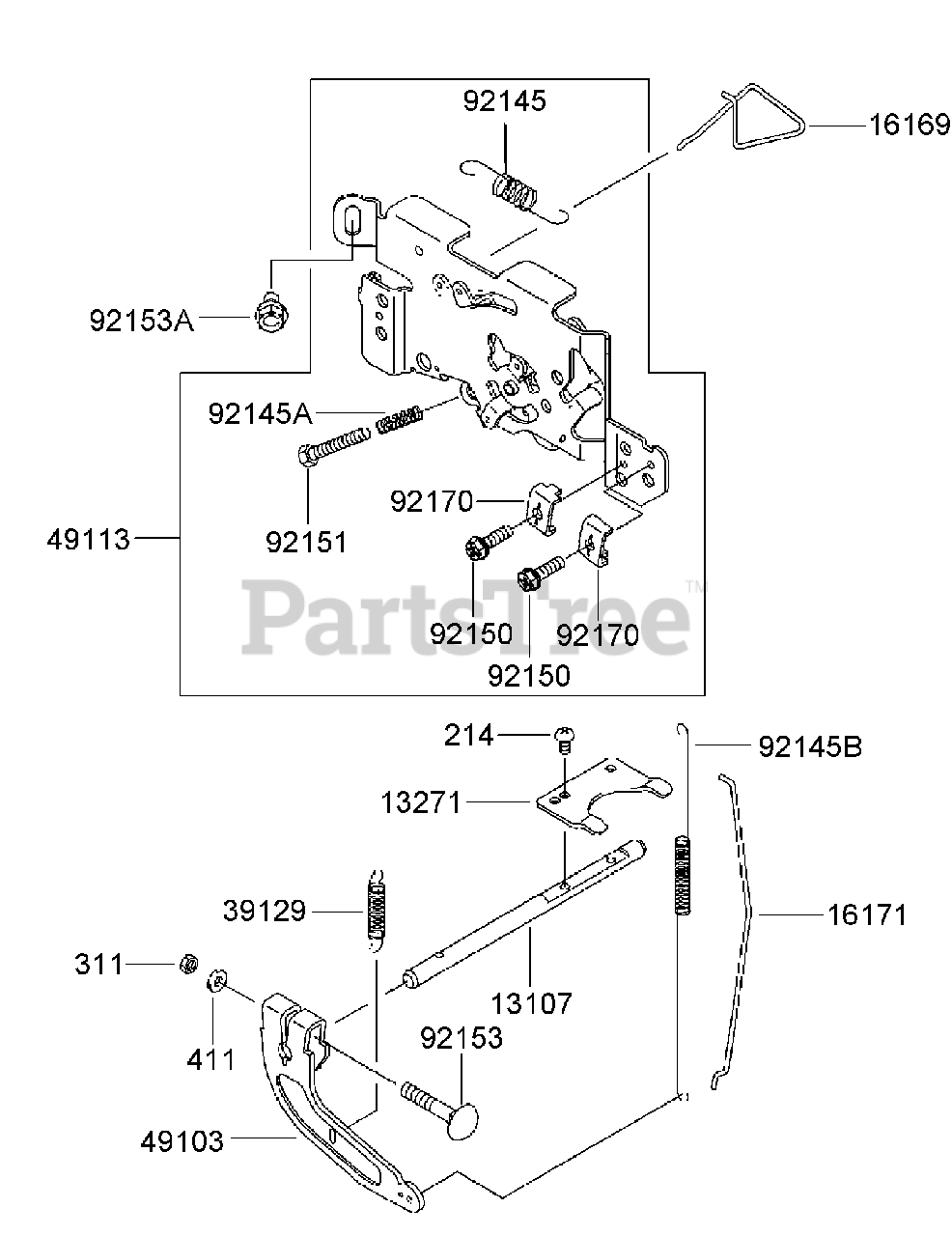

CONTROL EQUIPMENT ASSEMBLY KAWASAKI FH641V-AS31 Parts Diagram

  • Title
13107

Lawn-Boy 13107-7013

Shaft

Note: Obtain parts from www.kawpowerepc.com

$

$

Currently unavailable

13271

Lawn-Boy 13271-7032

PLATE

Note: Obtain parts from www.kawpowerepc.com

$

$

Currently unavailable

16169

Lawn-Boy 16169-7006

Link-Choke

Note: Obtain parts from www.kawpowerepc.com

$

$

Currently unavailable

16171

Lawn-Boy 16171-7004

Link

Note: Obtain parts from www.kawpowerepc.com

$

$

Currently unavailable

39129

Lawn-Boy 39129-7004

Spring-Governor

Note: Obtain parts from www.kawpowerepc.com

$

$

Currently unavailable

49103

Lawn-Boy 49103-7004

Arm-Governor

Note: Obtain parts from www.kawpowerepc.com

$

$

Currently unavailable

49113

Lawn-Boy 49113-7017

Panel-Control

Note: Obtain parts from www.kawpowerepc.com

$

$

Currently unavailable

92145

Lawn-Boy 92145-7004

Spring

Note: Obtain parts from www.kawpowerepc.com

$

$

Currently unavailable

92145A

Lawn-Boy 92145-7005

Spring

Note: Obtain parts from www.kawpowerepc.com

$

$

Currently unavailable

92145B

Lawn-Boy 92145-7034

SPRING

Note: Obtain parts from www.kawpowerepc.com

$

$

Currently unavailable

92150

Lawn-Boy 92150-2182

BOLT (5X18)

Note: Obtain parts from www.kawpowerepc.com

$

$

Currently unavailable

92151

Lawn-Boy 92151-7014

Bolt (5x30)

Note: Obtain parts from www.kawpowerepc.com

$

$

Currently unavailable

92153

Lawn-Boy 92153-7033

BOLT (6X35)

Note: Obtain parts from www.kawpowerepc.com

$

$

Currently unavailable

92153A

Lawn-Boy 92153-7043

BOLT (6X12)

Note: Obtain parts from www.kawpowerepc.com

$

$

Currently unavailable

92170

Lawn-Boy 92170-7001

Clamp

Note: Obtain parts from www.kawpowerepc.com

$

$

Currently unavailable

214

Lawn-Boy 214B0408

SCREW-PAN (4X8)

Note: Obtain parts from www.kawpowerepc.com

$

$

Currently unavailable

311

Lawn-Boy 311B0600

NUT-HEX (6mm)

Note: Obtain parts from www.kawpowerepc.com

$

$

Currently unavailable

411

Lawn-Boy 411B0600

Washer-Plain (6mm)

Note: Obtain parts from www.kawpowerepc.com

$

$

Currently unavailable
