81271 (Z 3500 HLX) - Lawn-Boy Precision Zero-Turn Mower (SN: 280000001 - 280999999) (2008) 50 INCH DECK SPINDLE AND BELT DRIVE ASSEMBLY Parts Diagram

Precision Zero-Turn Mower

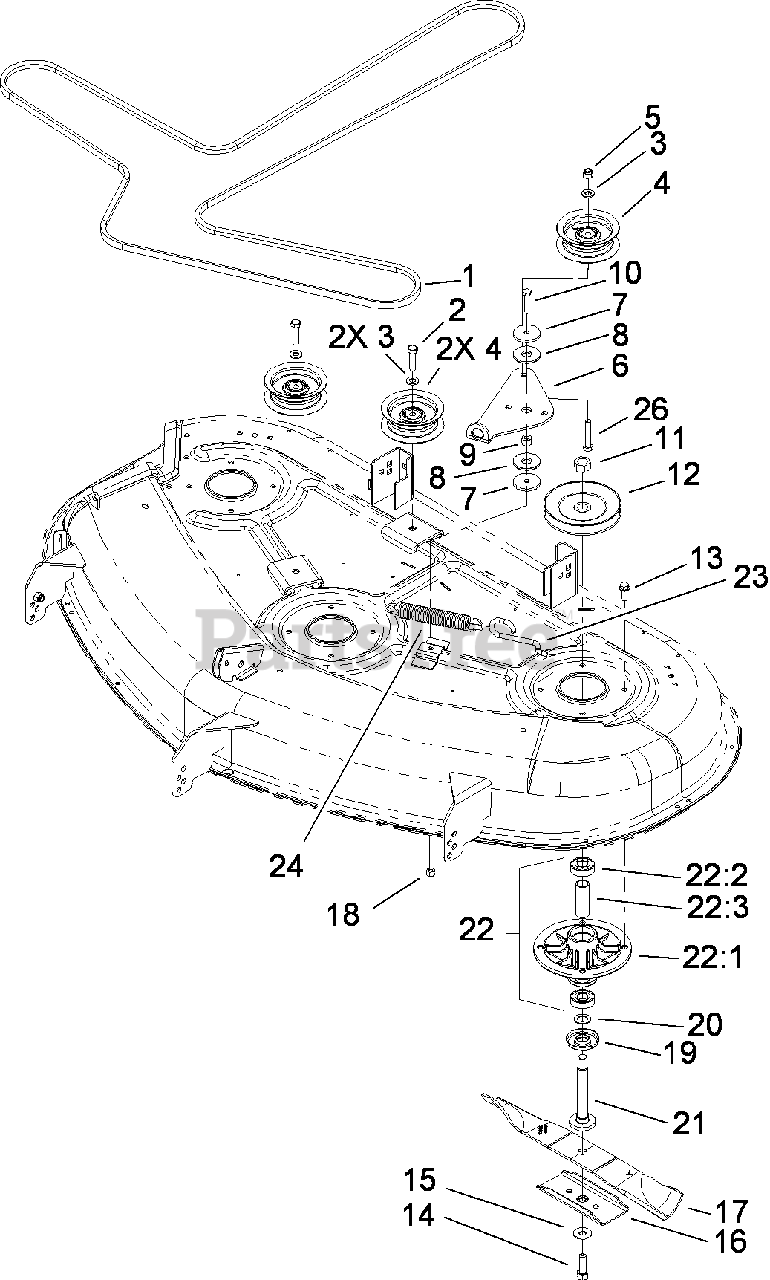

50 INCH DECK SPINDLE AND BELT DRIVE ASSEMBLY Parts Diagram

  • Title

$81.99

$

In Stock, only 2 left!

0

2

Lawn-Boy 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

3

Lawn-Boy 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 14

0

4

Lawn-Boy 106-2175

PULLEY-IDLER, FLAT
(Superseded to 132-9420)

$34.99

$

In Stock, Qty 20+

0

5

Lawn-Boy 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

6

Lawn-Boy 114-8540

ARM-IDLER

$21.99

$

In Stock, only 1 left!

0

$2.99

$

In Stock, Qty 20+

0

8

Lawn-Boy 114-0463

WASHER-FRICTION, COMPOSITE

$5.49

$

In Stock, Qty 11

0

9

$3.49

$

In Stock, Qty 20+

0

10

Lawn-Boy 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

11

Lawn-Boy 3219-6

NUT-HEX

$3.99

$

In Stock, Qty 20+

0

12

Lawn-Boy 110-6865

PULLEY
(Superseded to 125-5575)

$62.99

$

In Stock, Qty 20+

0

13

Lawn-Boy 32144-41

SCREW-TAPTITE

$5.49

$

In Stock, Qty 20+

0

14

Lawn-Boy 26-0671

SCREW-HH

$9.49

$

In Stock, Qty 20+

0

15

Lawn-Boy 3290-465

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

16

Lawn-Boy 106-2248-03

STIFFENER-BLADE

$19.99

$

In Stock, Qty 18

0

17

Lawn-Boy 110-6837-03

BLADE-17.5 INCH, HIGH LIFT

$33.99

$

In Stock, only 3 left!

0

18

Lawn-Boy 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

19

Lawn-Boy 80-4360

SHIELD-BEARING

$18.99

$

In Stock, Qty 13

0

20

$6.99

$

In Stock, Qty 12

0

21

Lawn-Boy 110-6866

SHAFT-SPINDLE
(Superseded to 117-1192)

$47.99

$

In Stock, Qty 6

0

22

Spindle ASM

Note: Not serviced separately

$

$

Not available

22:1

Lawn-Boy 88-4510

HOUSING-SPINDLE

$106.99

$

In Stock, Qty 7

0

22:2

Lawn-Boy 100-1048

BEARING-BALL
(Superseded to 38-7820)

$13.99

$

In Stock, Qty 18

0

22:3

$15.99

$

In Stock, Qty 15

0

23

Lawn-Boy 112-3973

HOOK-RETURN, SPRING
(Superseded to 138-7266)

$5.49

$

In Stock, only 1 left!

0

24

Lawn-Boy 1-603414

SPRING-EXTENSION

$21.99

$

In Stock, only 2 left!

0

26

Lawn-Boy 323-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0
