81271 (Z 3500 HLX) - Lawn-Boy Precision Zero-Turn Mower (SN: 280000001 - 280999999) (2008) 50 INCH DECK ASSEMBLY Parts Diagram

Precision Zero-Turn Mower

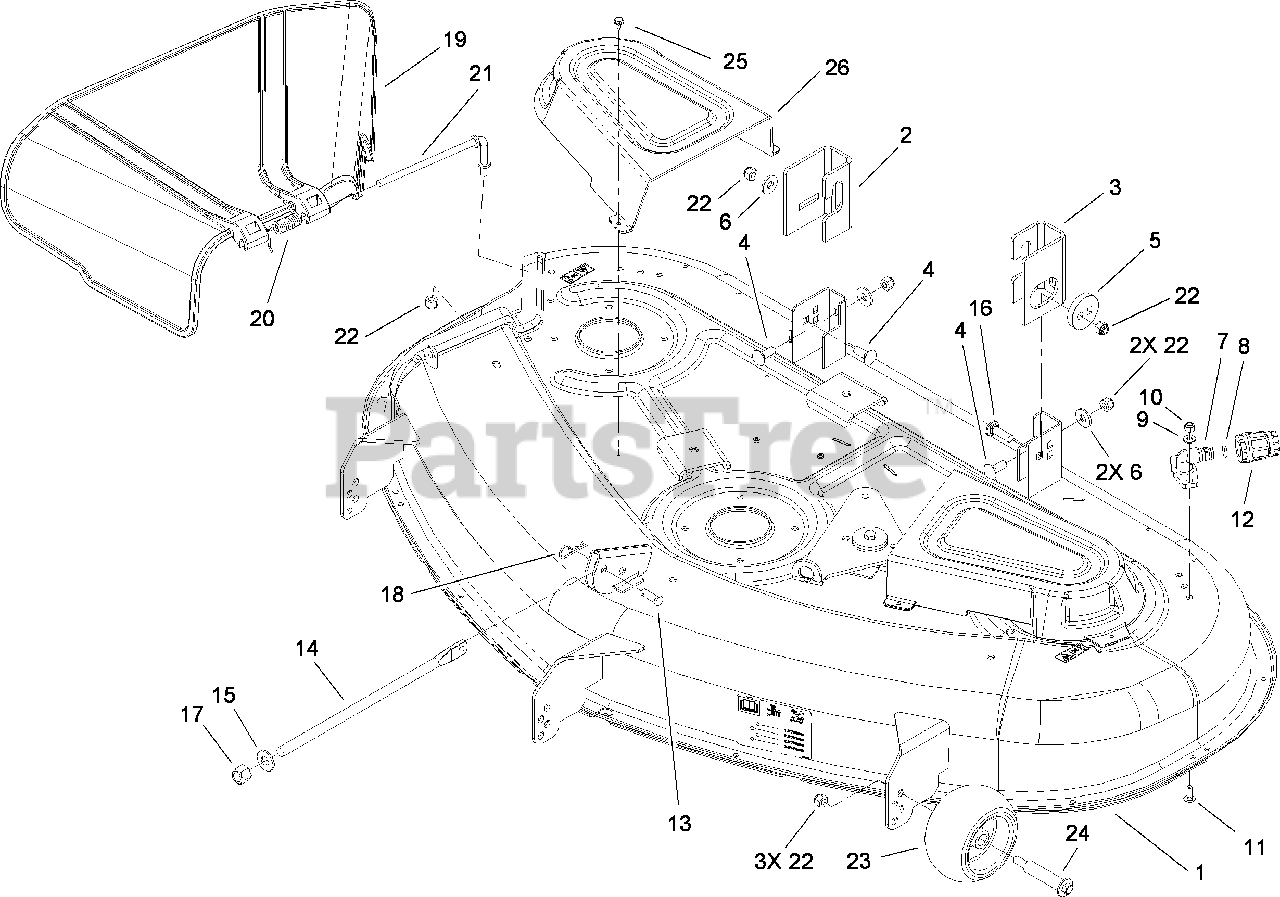

50 INCH DECK ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 115-2475

50 INCH DECK ASM

$

$

Not available

2

Lawn-Boy 108-7836

BRACKET-HANGER, RIGHT REAR

$21.99

$

In Stock, only 2 left!

0

3

Lawn-Boy 108-7838

BRACKET-HANGER, LEFT REAR

$21.99

$

In Stock, only 3 left!

0

4

Lawn-Boy 3231-2

SCREW-CARR

$1.99

$

In Stock, Qty 20+

0

5

Lawn-Boy 112-3980

ECCENTRIC

$7.99

$

In Stock, Qty 7

0

6

Lawn-Boy 80-6990

WASHER-HARDENED

$5.49

$

In Stock, Qty 14

0

7

Lawn-Boy 95-2747

FITTING-WASHOUT
(Superseded to 133-9289)

$6.49

$

In Stock, Qty 5

0

8

Lawn-Boy 46-6290

O-RING, SEAL

$2.99

$

In Stock, only 4 left!

0

9

Lawn-Boy 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

10

Lawn-Boy 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

11

Lawn-Boy 3229-1

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

12

Lawn-Boy 95-3270

CONNECTOR-HOSE

$22.99

$

In Stock, only 1 left!

0

13

Lawn-Boy 1-808284

PIN-CLEVIS

$3.49

$

In Stock, only 4 left!

0

14

Lawn-Boy 108-7847

ROD-LIFT

$19.99

$

In Stock, only 1 left!

0

15

Lawn-Boy 87-7270

WASHER-THRUST

$0.99

$

In Stock, Qty 20+

0

16

Lawn-Boy 3231-28

SCREW-CARR

$4.49

$

In Stock, Qty 20+

0

17

Lawn-Boy 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

18

Lawn-Boy 9335054

PIN-HAIR

$1.99

$

In Stock, Qty 20+

0

19

Lawn-Boy 108-7895

DEFLECTOR-50 INCH

$64.99

$

In Stock, Qty 20+

0

20

Lawn-Boy 110-6694

SPRING-TORSION

$6.49

$

In Stock, Qty 7

0

21

Lawn-Boy 112-3950

ROD-PIVOT

$19.99

$

In Stock, only 1 left!

0

22

Lawn-Boy 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

23

Lawn-Boy 1-603299

ROLLER-SCALP, ANTI

$22.99

$

In Stock, Qty 20+

0

24

Lawn-Boy 112-3977

BOLT-SHOULDER

$11.99

$

In Stock, Qty 15

0

25

Lawn-Boy 32104-76

SCREW

$2.99

$

In Stock, Qty 20+

0

26

Lawn-Boy 108-7890

COVER-BELT

$20.99

$

In Stock, only 2 left!

0
