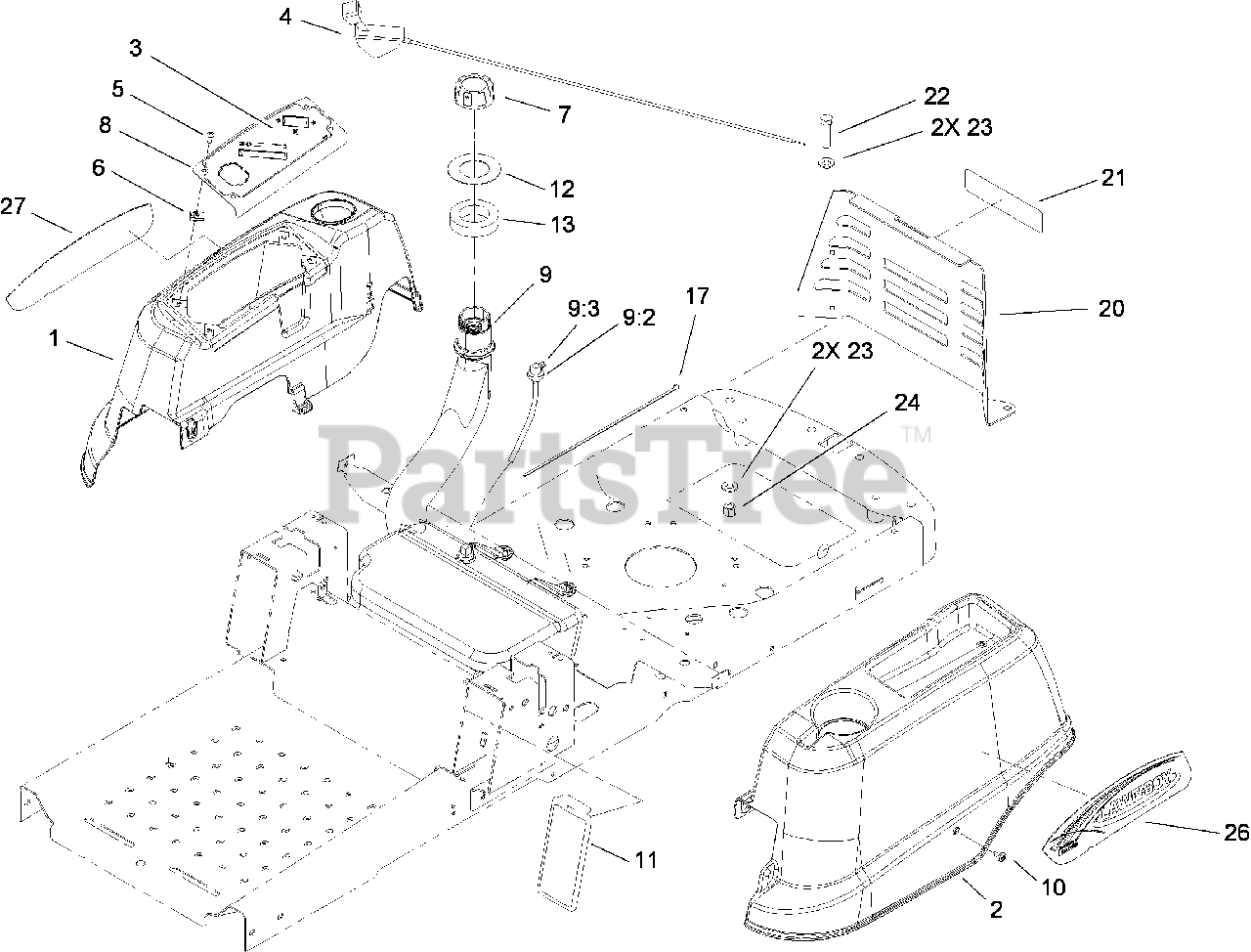

81270 (Z 3400 HLX) - Lawn-Boy Precision Zero-Turn Mower (SN: 280000301 - 280999999) (2008) STYLING AND FUEL SYSTEM ASSEMBLY Parts Diagram

Precision Zero-Turn Mower

STYLING AND FUEL SYSTEM ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 112-9773

POD-RH

$

$

Not available

2

Lawn-Boy 112-9772

POD-LH

$

$

Not available

3

Lawn-Boy 115-2500

DECAL-PANEL, CONTROL

$29.99

$

In Stock, only 1 left!

0

4

Lawn-Boy 104-8081

CABLE-THROTTLE

$115.99

$

In Stock, only 2 left!

0

5

Lawn-Boy 3258-166

SCREW-PRH

$0.99

$

In Stock, Qty 20+

0

6

Lawn-Boy 107069

CLIP

$2.99

$

In Stock, Qty 20+

0

7

Lawn-Boy 93-7198

GAS CAP ASM

$15.99

$

In Stock, only 1 left!

0

8

Lawn-Boy 110-1927-03

PANEL-CONTROL

$16.99

$

Usually ships in 3-6 days

0

9

Lawn-Boy 110-6890

FUEL TANK ASM

$210.99

$

In Stock, only 1 left!

0

9:2

Lawn-Boy 46-6560

BUSHING

$5.99

$

In Stock, Qty 10

0

9:3

Lawn-Boy 95-3970

FITTING-90 DEGREE

$68.99

$

In Stock, only 1 left!

0

10

Lawn-Boy 112-4004

SCREW-SHOULDER
(Superseded to 120-7950)

$2.99

$

In Stock, Qty 7

0

11

Lawn-Boy 110-6786

COVER-CONTROL

$14.99

$

In Stock, only 1 left!

0

12

Lawn-Boy 112-9760

WASHER-RUBBER

$5.49

$

In Stock, Qty 17

0

13

Lawn-Boy 55-9310

SEAL-FOAM

$

$

Not available

17

Lawn-Boy 100-9064

TIE-CABLE

$1.99

$

In Stock, Qty 5

0

20

Lawn-Boy 110-6685-03

SUPPORT-COVER, REAR

$

$

Not available

21

Lawn-Boy 114-8505

DECAL

$

$

Not available

22

Lawn-Boy 325-8

SCREW-HH

$5.49

$

In Stock, Qty 7

0

23

Lawn-Boy 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

24

Lawn-Boy 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

26

Lawn-Boy 115-2486

DECAL-POD, RH

$

$

Not available

27

Lawn-Boy 115-2487

DECAL-POD, LH

$

$

Not available
