81270 (Z 3400 HLX) - Lawn-Boy Precision Zero-Turn Mower (SN: 280000301 - 280999999) (2008) LH HYDRO ASSEMBLY NO. 110-6770 Parts Diagram

Precision Zero-Turn Mower

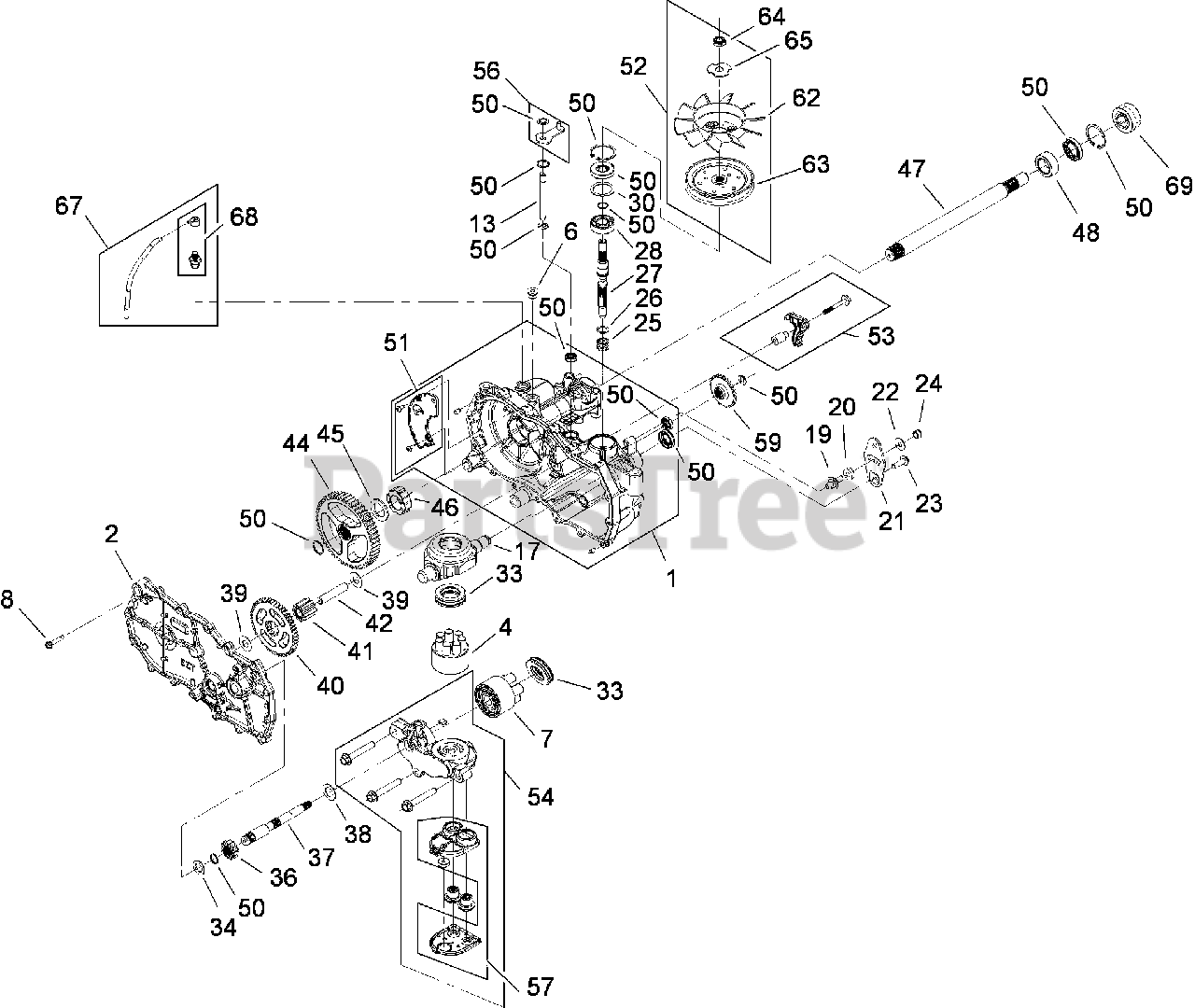

LH HYDRO ASSEMBLY NO. 110-6770 Parts Diagram

  • Title

1

Lawn-Boy 114-1636

LH MAIN HOUSING ASM

$1290.99

$

Usually ships in 3-6 days

0

2

Lawn-Boy 114-1637

LH SIDE ASM

$368.99

$

Usually ships in 3-6 days

0

4

Lawn-Boy 110-8561

PUMP BLOCK ASM

$347.99

$

Usually ships in 3-6 days

0

6

Lawn-Boy 112-9850

PLUG
(Superseded to 104-2189)

$26.99

$

In Stock, only 2 left!

0

7

Lawn-Boy 103-2666

CYLINDER BLOCK KIT

$494.99

$

Usually ships in 3-6 days

0

8

Lawn-Boy 104-5305

SCREW-HHF

$7.99

$

In Stock, only 1 left!

0

13

Lawn-Boy 106-8678

ROD-BYPASS

$55.99

$

Usually ships in 3-6 days

0

17

Lawn-Boy 104-5304

SWASHPLATE-TRUNNION

$194.99

$

Usually ships in 3-6 days

0

19

Lawn-Boy 104-2116

STUD

$38.99

$

Usually ships in 3-6 days

0

20

Lawn-Boy 112-9853

PUCK-FRICTION

$7.99

$

In Stock, only 2 left!

0

21

Lawn-Boy 106-8747

ARM-CONTROL

$37.99

$

Usually ships in 3-6 days

0

22

Lawn-Boy 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 6

0

23

Lawn-Boy 107-2488

SCREW

$13.99

$

In Stock, only 1 left!

0

24

Lawn-Boy 105-1872

NUT

$13.99

$

Usually ships in 3-6 days

0

25

Lawn-Boy 94-1936

SPRING-BLOCK

$8.49

$

Usually ships in 3-6 days

0

26

Lawn-Boy 94-1937

WASHER-THRUST, BLOCK

$6.49

$

Usually ships in 3-6 days

0

27

Lawn-Boy 104-5306

SHAFT-INPUT

$370.99

$

Usually ships in 3-6 days

0

28

Lawn-Boy 104-5311

BEARING-BALL

$44.99

$

In Stock, Qty 5

0

30

Lawn-Boy 104-5308

SPACER

$9.49

$

Usually ships in 3-6 days

0

33

Lawn-Boy 94-6922

BEARING-THRUST

$62.99

$

In Stock, only 3 left!

0

34

Lawn-Boy 104-5339

WASHER-FLAT

$6.99

$

Usually ships in 3-6 days

0

36

Lawn-Boy 104-5316

GEAR-PINNION, 13T

$33.99

$

Usually ships in 3-6 days

0

37

Lawn-Boy 114-1632

SHAFT, MOTOR

$

$

Not available

38

Lawn-Boy 104-5360

WASHER-SHAFT, MOTOR

$7.99

$

Usually ships in 3-6 days

0

39

Lawn-Boy 94-1933

WASHER

$6.49

$

Usually ships in 3-6 days

0

40

Lawn-Boy 104-5317

GEAR

$192.99

$

Usually ships in 3-6 days

0

41

Lawn-Boy 104-5318

GEAR-JACKSHAFT, 10T

$87.99

$

Usually ships in 3-6 days

0

42

Lawn-Boy 104-5329

PIN-JACKSHAFT

$112.99

$

Usually ships in 3-6 days

0

44

Lawn-Boy 112-9855

GEAR-52T, BULL

$159.99

$

Usually ships in 3-6 days

0

45

Lawn-Boy 112-9856

WASHER

$8.49

$

Usually ships in 3-6 days

0

46

Lawn-Boy 112-9857

BEARING-SLEEVE

$19.99

$

In Stock, only 1 left!

0

47

Lawn-Boy 112-9858

SHAFT-AXLE
(Superseded to 120-7932)

$

$

Not available

48

Lawn-Boy 112-9859

BUSHING-AXLE

$14.99

$

Usually ships in 3-6 days

0

50

Lawn-Boy 106-8686

SEAL KIT

$188.99

$

Usually ships in 3-6 days

0

51

Lawn-Boy 106-8687

LH EXPANSION PLATE KIT

$71.99

$

Usually ships in 3-6 days

0

52

Lawn-Boy 106-8698

Fan Pulley Kit

$130.99

$

Usually ships in 3-6 days

0

53

Lawn-Boy 114-1633

BRAKE ARM KIT

$38.99

$

Usually ships in 3-6 days

0

54

Lawn-Boy 112-9862

LH CENTER SECTION FILTER KIT

$526.99

$

Usually ships in 3-6 days

0

55

Lawn-Boy 104-2147

SEALANT

Note: Not illustrated

$110.99

$

Usually ships in 3-6 days

0

56

Lawn-Boy 107-2489

BYPASS ARM KIT

$83.99

$

Usually ships in 3-6 days

0

57

Lawn-Boy 114-1634

FILTER KIT

$42.99

$

Usually ships in 3-6 days

0

59

Lawn-Boy 106-8694

DISC-BRAKE, COG

$60.99

$

In Stock, only 1 left!

0

62

Lawn-Boy 110-8566

FAN-6 INCH, 10 BLADE

$87.99

$

Usually ships in 3-6 days

0

63

Lawn-Boy 104-1754

PULLEY

$90.99

$

In Stock, only 1 left!

0

64

Lawn-Boy 105-1875

NUT-LOCK

$7.99

$

Usually ships in 3-6 days

0

65

Lawn-Boy 107-9122

WASHER-SLOTTED
(Superseded to 116-9708)

$5.49

$

In Stock, only 1 left!

0

67

Lawn-Boy 112-9866

BREATHER KIT

$47.99

$

In Stock, only 1 left!

0

68

Lawn-Boy 114-1635

BREATHER ASM

$42.99

$

In Stock, only 1 left!

0

69

Lawn-Boy 115-5057

COVER-NUT, AXLE

$18.99

$

Usually ships in 3-6 days

0
