81270 (Z 3400 HLX) - Lawn-Boy Precision Zero-Turn Mower (SN: 280000301 - 280999999) (2008) ENGINE AND CLUTCH ASSEMBLY Parts Diagram

Precision Zero-Turn Mower

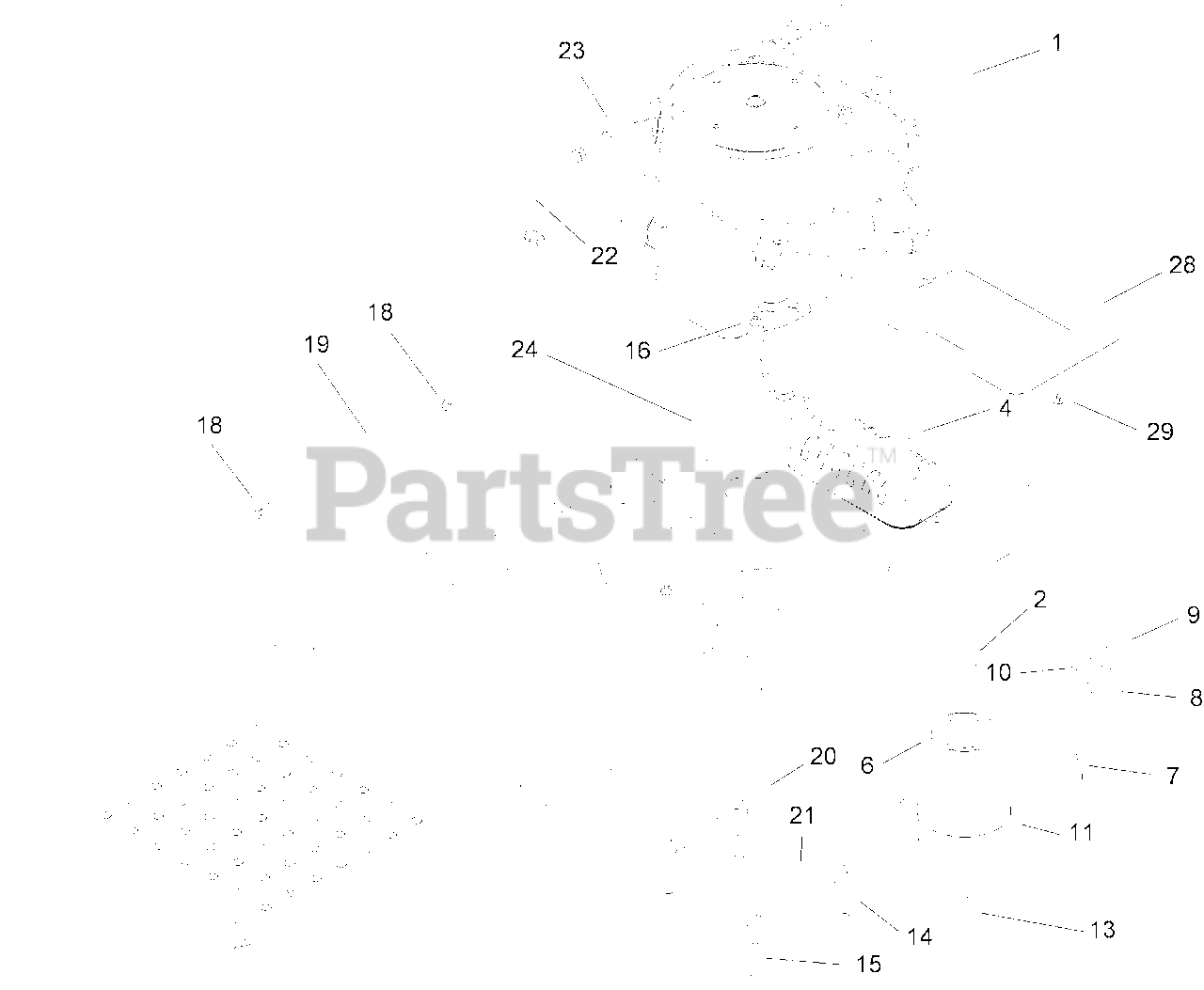

ENGINE AND CLUTCH ASSEMBLY Parts Diagram

  • Title

1

ENGINE-HONDA, GXV530 EXA2-MOD

Note: Not serviced separately Obtain from your local Honda dealer

$

$

Not available

2

Lawn-Boy 92-7845

SPACER-HARDENED

$9.49

$

Usually ships in 3-6 days

0

4

Lawn-Boy 115-2558

MUFFLER-HONDA TWIN

$224.99

$

Usually ships in 3-6 days

0

6

Lawn-Boy 114-1622

PULLEY-ENGINE

$135.99

$

Usually ships in 3-6 days

0

7

Lawn-Boy 112-4033

BUMPER

$7.99

$

In Stock, only 3 left!

0

8

Lawn-Boy 110-6896

STOP-CLUTCH

$12.99

$

Usually ships in 3-6 days

0

9

Lawn-Boy 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

10

Lawn-Boy 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

11

Lawn-Boy 104-3334

CLUTCH-ELECTRIC

$474.99

$

In Stock, only 2 left!

0

13

Lawn-Boy 3212-10

SCREW-HH

$6.49

$

In Stock, only 1 left!

0

14

Lawn-Boy 32144-109

SCREW

$4.99

$

In Stock, Qty 7

0

15

Lawn-Boy 322-10

SCREW-HH

$0.99

$

In Stock, Qty 5

0

16

Lawn-Boy 104-8300

NUT-FLANGE, NI

$1.49

$

In Stock, Qty 17

0

18

Lawn-Boy 2412-98

CLAMP

$1.49

$

In Stock, Qty 20+

0

19

Lawn-Boy 107-0589

HOSE-FUEL

$7.49

$

In Stock, Qty 5

0

20

Lawn-Boy 110-6798

SUPPORT-HYDRO, RH

$29.99

$

In Stock, only 3 left!

0

21

Lawn-Boy 110-6799

SUPPORT-HYDRO, LH

$29.99

$

In Stock, Qty 11

0

22

Lawn-Boy 82-4201

HYD HOSE ASM

$

$

Not available

23

Lawn-Boy 288-10

CAP-PIPE

$10.99

$

Usually ships in 3-6 days

0

24

Lawn-Boy 112-9849

TUBING-CONVOLUTED

$3.99

$

Usually ships in 3-6 days

0

28

Lawn-Boy 114-8544

SHIELD-HEAT
(Superseded to 114-8544-03)

$19.99

$

In Stock, only 4 left!

0

29

Lawn-Boy 46-8560

SCREW-HHF

$1.99

$

In Stock, only 4 left!

0
