81270 (Z 3400 HLX) - Lawn-Boy Precision Zero-Turn Mower (SN: 280000301 - 280999999) (2008) 42 INCH DECK SPINDLE AND BELT DRIVE ASSEMBLY Parts Diagram

Precision Zero-Turn Mower

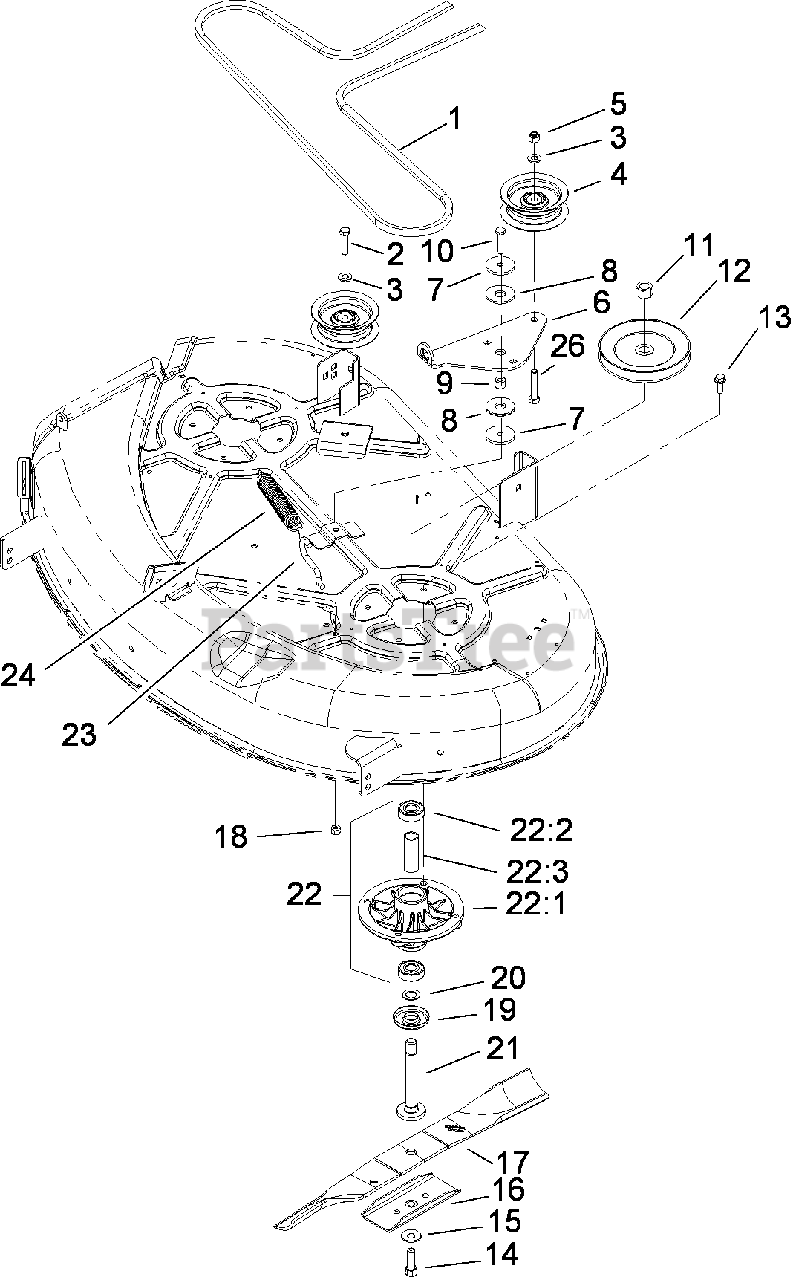

42 INCH DECK SPINDLE AND BELT DRIVE ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 110-6871

V-BELT

$82.99

$

In Stock, Qty 17

0

2

Lawn-Boy 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

3

Lawn-Boy 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

4

Lawn-Boy 106-2175

PULLEY-IDLER, FLAT
(Superseded to 132-9420)

$36.99

$

In Stock, Qty 20+

0

5

Lawn-Boy 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

6

Lawn-Boy 114-8540

ARM-IDLER

$22.99

$

In Stock, only 3 left!

0

7

Lawn-Boy 115-2455

SPACER

$2.99

$

In Stock, Qty 18

0

8

Lawn-Boy 114-0463

WASHER-FRICTION, COMPOSITE

$5.49

$

In Stock, Qty 20+

0

9

Lawn-Boy 114-8549

BUSHING

$3.99

$

In Stock, Qty 20+

0

10

Lawn-Boy 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

11

Lawn-Boy 3219-6

NUT-HEX

$3.99

$

In Stock, Qty 20+

0

12

Lawn-Boy 110-6864

PULLEY
(Superseded to 139-2433)

$39.99

$

In Stock, Qty 20+

0

13

Lawn-Boy 32144-41

SCREW-TAPTITE

$5.49

$

In Stock, Qty 20+

0

14

Lawn-Boy 26-0671

SCREW-BLADE

$9.49

$

In Stock, Qty 20+

0

15

Lawn-Boy 3290-465

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

16

Lawn-Boy 106-2248-03

STIFFENER-BLADE

$20.99

$

In Stock, Qty 17

0

17

Lawn-Boy 110-6568-03

BLADE-21.6 INCH

$29.99

$

In Stock, Qty 20+

0

18

Lawn-Boy 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

19

Lawn-Boy 80-4360

SHIELD-BEARING

$20.99

$

In Stock, Qty 20+

0

20

Lawn-Boy 80-4380

SPACER

$6.99

$

In Stock, Qty 20+

0

21

Lawn-Boy 110-6866

SHAFT-SPINDLE
(Superseded to 117-1192)

$50.99

$

In Stock, Qty 20+

0

22

Spindle ASM

Note: Not serviced separately

$

$

Not available

22:1

Lawn-Boy 88-4510

HOUSING-SPINDLE

$99.99

$

In Stock, Qty 20+

0

22:2

Lawn-Boy 100-1048

BEARING-BALL
(Superseded to 38-7820)

$14.99

$

In Stock, Qty 20+

0

22:3

Lawn-Boy 62-3661

SPACER-BEARING

$17.99

$

In Stock, Qty 20+

0

23

Lawn-Boy 88-5970

HOOK-RETURN, SPRING
(Superseded to 138-7267)

$2.99

$

In Stock, Qty 20+

0

24

Lawn-Boy 106-2177

SPRING-EXTENSION

$15.99

$

In Stock, Qty 20+

0

26

Lawn-Boy 323-10

SCREW-HH

$1.49

$

In Stock, Qty 20+

0
