81270 (Z 3400 HLX) - Lawn-Boy Precision Zero-Turn Mower (SN: 280000301 - 280999999) (2008) 42 INCH DECK ASSEMBLY NO. 114-8504 Parts Diagram

Precision Zero-Turn Mower

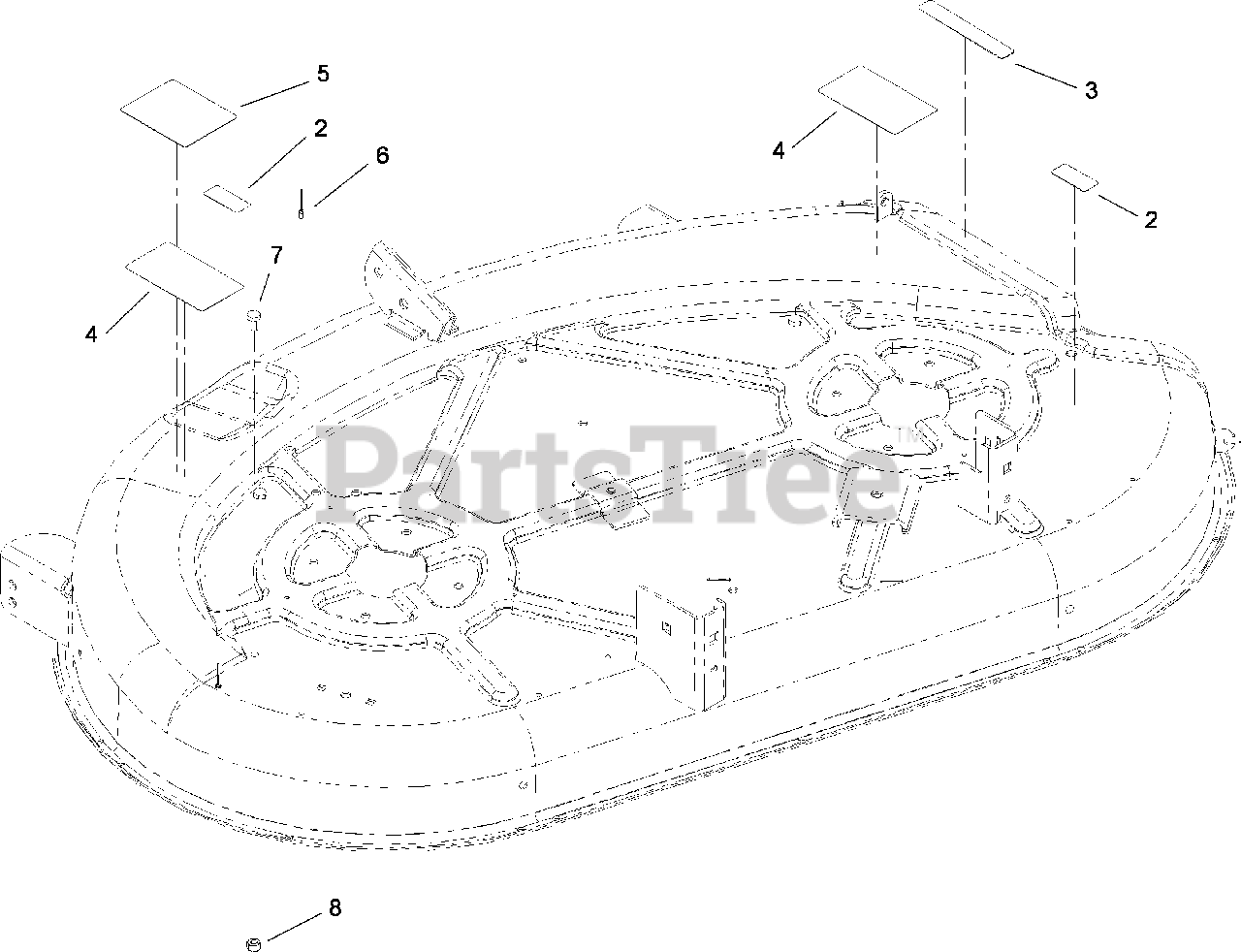

42 INCH DECK ASSEMBLY NO. 114-8504 Parts Diagram

  • Title
2

Lawn-Boy 114-1606

DECAL-DANGER, PULLEY

$2.99

$

In Stock, Qty 7

0

3

Lawn-Boy 93-7009

DECAL-DANGER

$7.49

$

In Stock, Qty 20+

0

4

Lawn-Boy 110-6691

DECAL-DANGER

$5.49

$

In Stock, only 2 left!

0

5

Lawn-Boy 105-7015

DECAL-ROUTING, BELT

$5.49

$

In Stock, Qty 15

0

6

Lawn-Boy 3290-282

RIVET-POP

$0.99

$

In Stock, Qty 8

0

7

Lawn-Boy 321-2

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

8

Lawn-Boy 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0
