81270 (Z 3400 HLX) - Lawn-Boy Precision Zero-Turn Mower (SN: 270000001 - 270999999) (2007) OIL PAN ASSEMBLY HONDA GXV530 EXA2-MOD Parts Diagram

Precision Zero-Turn Mower

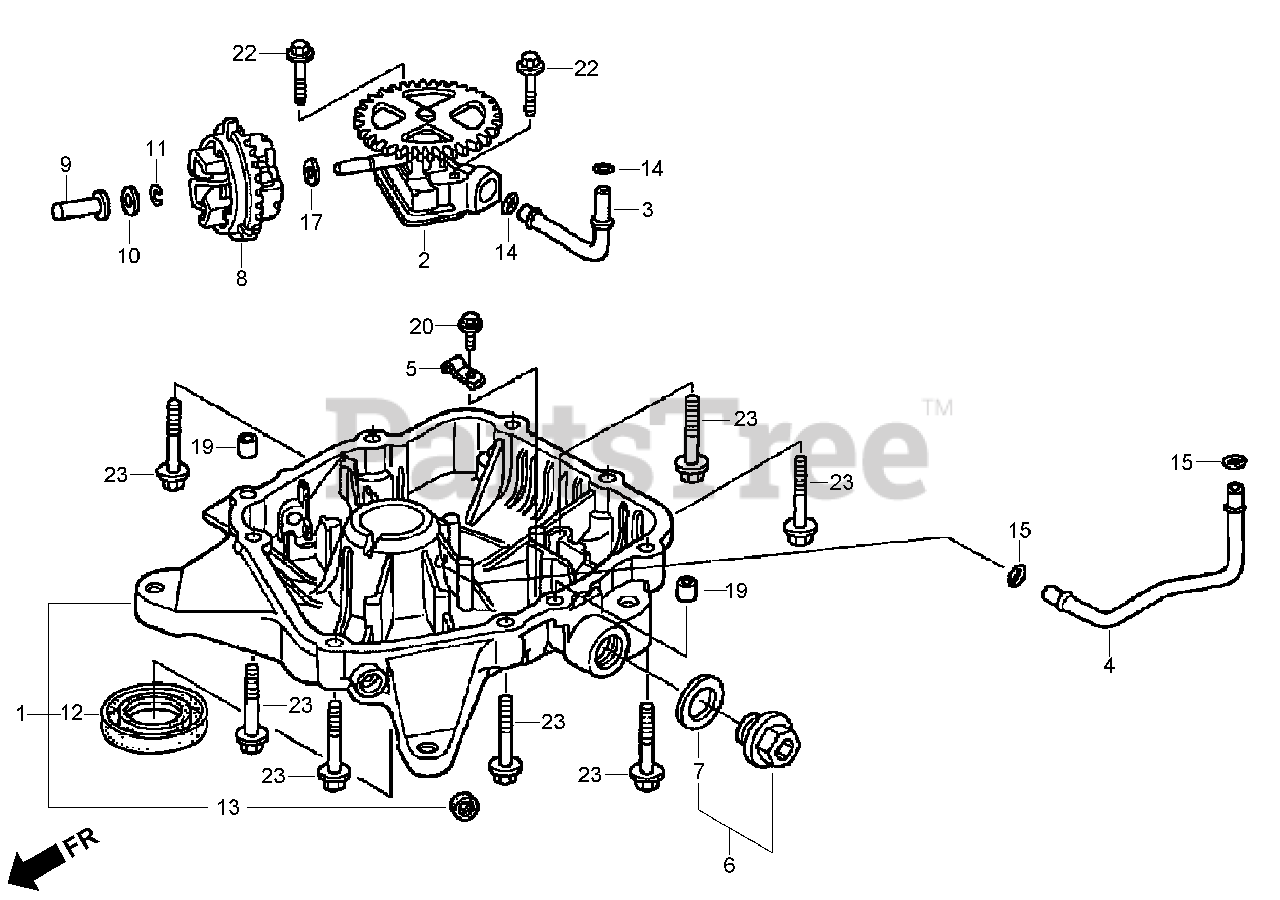

OIL PAN ASSEMBLY HONDA GXV530 EXA2-MOD Parts Diagram

  • Title
1

Lawn-Boy 11300-Z0A-830

OIL PAN ASM

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

2

Lawn-Boy 15100-Z0A-811

OIL PUMP ASM

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

3

Lawn-Boy 15161-Z0A-000

PIPE-PUMP, OIL

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

4

Lawn-Boy 15162-Z0A-800

PIPE-SUPPLY, OIL

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

5

Lawn-Boy 15163-Z0A-000

HOLDER-PIPE, OIL

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

6

Lawn-Boy 15550-Z0A-810

DRAIN CAP ASM

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

7

Lawn-Boy 15625-ZE1-003

GASKET-CAP, OIL FILLER

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

8

Lawn-Boy 16510-Z0A-000

GOVERNOR ASM

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

9

Lawn-Boy 16531-Z0A-000

SLIDER-GOVERNOR

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

10

Lawn-Boy 90473-147-000

WASHER (6X16)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

11

Lawn-Boy 90602-ZE1-000

CLIP-HOLDER, GOVERNOR

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

12

Lawn-Boy 91202-Z0A-003

SEAL-OIL (31X50X8)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

13

Lawn-Boy 91259-VM0-000

SEAL-OIL (10X16X4.5)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

14

Lawn-Boy 91301-Z0A-003

O-RING (7.5X2.3)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

15

Lawn-Boy 91302-Z0A-003

O-RING (5.8X2)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

17

Lawn-Boy 94101-06800

WASHER-PLAIN (6MM)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

19

Lawn-Boy 94301-08140

Pin-Dowel (8X14)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

20

Lawn-Boy 95701-06012-00

BOLT-FLANGE (6X12)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

22

Lawn-Boy 95701-06035-00

BOLT-FLANGE (6X35)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

23

Lawn-Boy 95701-08040-00

BOLT-FLANGE (8X40)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable
