81250 (Z 350 HLX) - Lawn-Boy Precision Zero-Turn Mower (SN: 260000001 - 260999999) (2006) HYDRO AND BELT DRIVE ASSEMBLY Parts Diagram

Precision Zero-Turn Mower

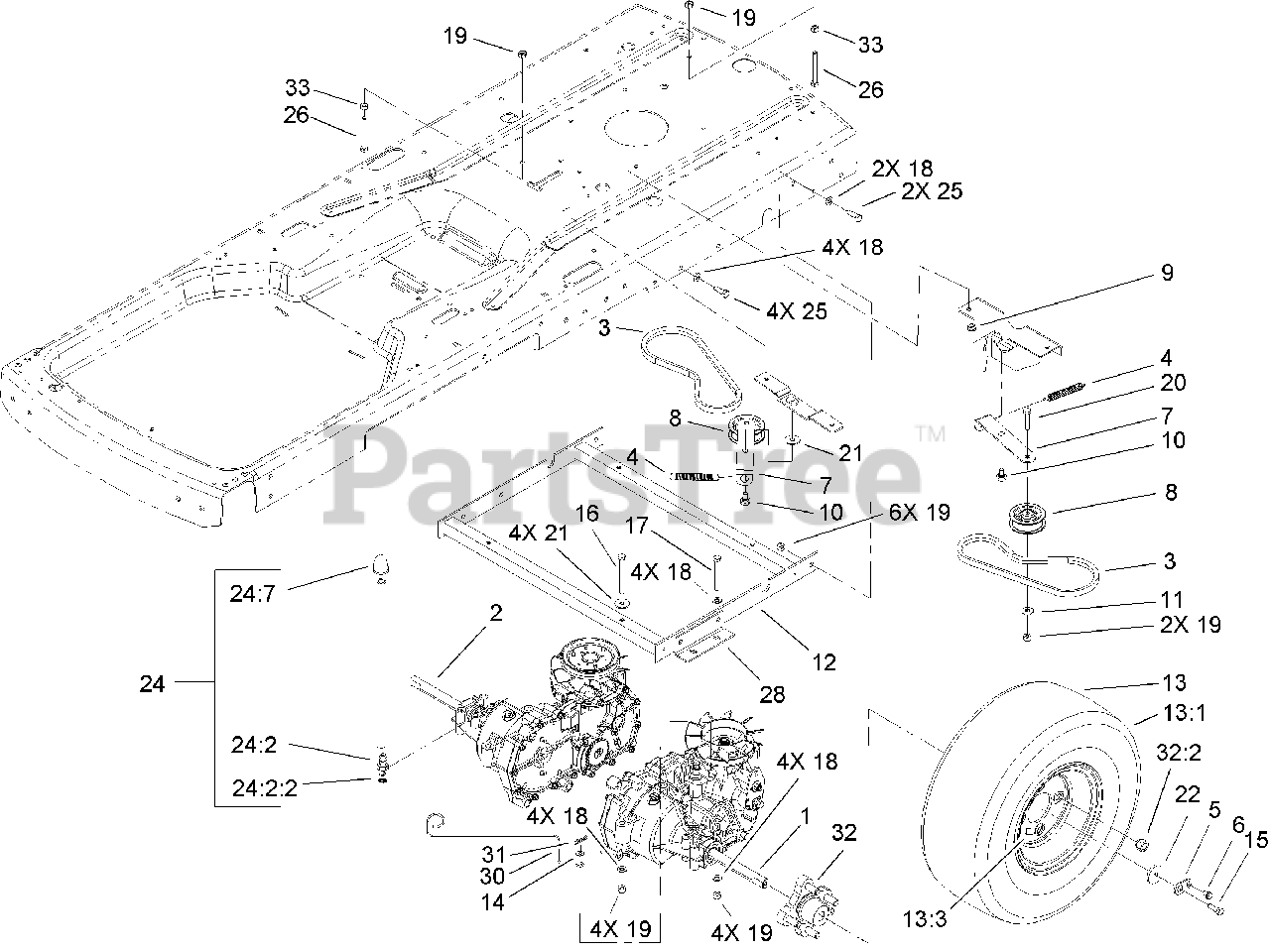

HYDRO AND BELT DRIVE ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 108-2394

TRANSAXLE-HYDRO, LH
(Superseded to 114-8521)

$2340.99

$

Usually ships in 3-6 days

0

2

Lawn-Boy 108-2393

TRANSAXLE-HYDRO, RH
(Superseded to 114-8520)

$2314.99

$

Usually ships in 3-6 days

0

3

Lawn-Boy 106-2174

V-BELT

$21.99

$

In Stock, Qty 13

0

4

Lawn-Boy 95-3805

SPRING

$14.99

$

In Stock, Qty 5

0

5

Lawn-Boy 105-3438

TAB-LOCKING

$5.49

$

Usually ships in 3-6 days

0

6

Lawn-Boy 3234-13

SCREW-HHF

$1.49

$

In Stock, only 4 left!

0

7

Lawn-Boy 105-7047

ARM-IDLER

$16.99

$

In Stock, only 2 left!

0

8

Lawn-Boy 106-2176

PULLEY-IDLER

$31.99

$

In Stock, Qty 20+

0

9

Lawn-Boy 32128-25

NUT-HF

$3.49

$

In Stock, Qty 7

0

10

Lawn-Boy 37-8770

BOLT-SHOULDER

$1.49

$

In Stock, only 2 left!

0

11

Lawn-Boy 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

12

Lawn-Boy 107-4878-03

HYDRO MOUNT ASM

$218.99

$

In Stock, only 1 left!

0

13

Lawn-Boy 108-6129

WHEEL AND TIRE ASM

$

$

Not available

13:1

Lawn-Boy 105-3468

TIRE

$248.99

$

Usually ships in 3-6 days

0

13:3

Lawn-Boy 232-27

STEM-VALVE
(Superseded to 5108)

$6.99

$

In Stock, Qty 9

0

13:99

Lawn-Boy 232-37

TUBE

Note: Not illustrated

$33.99

$

Usually ships in 3-6 days

0

14

Lawn-Boy 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

15

Lawn-Boy 3210-5

SCREW-HH

$3.99

$

In Stock, Qty 5

0

16

Lawn-Boy 322-20

SCREW-HH

$1.99

$

Usually ships in 3-6 days

0

17

Lawn-Boy 322-13

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

18

Lawn-Boy 3256-23

WASHER-FLAT

$2.49

$

In Stock, Qty 20+

0

19

Lawn-Boy 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

20

Lawn-Boy 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

21

Lawn-Boy 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 20+

0

22

106-7001

WASHER-WHEEL

$

$

Not available

24

Lawn-Boy 106-7002

VENT HOSE ASM

$89.99

$

In Stock, only 1 left!

0

24:2

Lawn-Boy 93-3818

FITTING ASM

$16.99

$

Usually ships in 3-6 days

0

24:2:2

Lawn-Boy 93-3816

O-RING

$

$

Currently unavailable

24:7

Lawn-Boy 107-1701

CAP VENT ASM

$23.99

$

Usually ships in 3-6 days

0

25

Lawn-Boy 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

26

Lawn-Boy 322-13

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

28

Lawn-Boy 105-7039-03

SUPPORT-HYDRO

$

$

Not available

30

Lawn-Boy 107-4875

ROD-BYPASS

$29.99

$

Usually ships in 3-6 days

0

31

Lawn-Boy 1-806003

PIN-HAIR

$1.49

$

In Stock, Qty 20+

0

32

Lawn-Boy 108-9533

HUB ASM

$199.99

$

Usually ships in 3-6 days

0

32:2

Lawn-Boy 242-50

NUT-LUG
(Superseded to 139-2564)

$1.49

$

In Stock, only 3 left!

0

33

Lawn-Boy 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 12

0
