81250 (Z 350 HLX) - Lawn-Boy Precision Zero-Turn Mower (SN: 260000001 - 260999999) (2006) 44IN DECK SPINDLE AND DRIVE BELT ASSEMBLY Parts Diagram

Precision Zero-Turn Mower

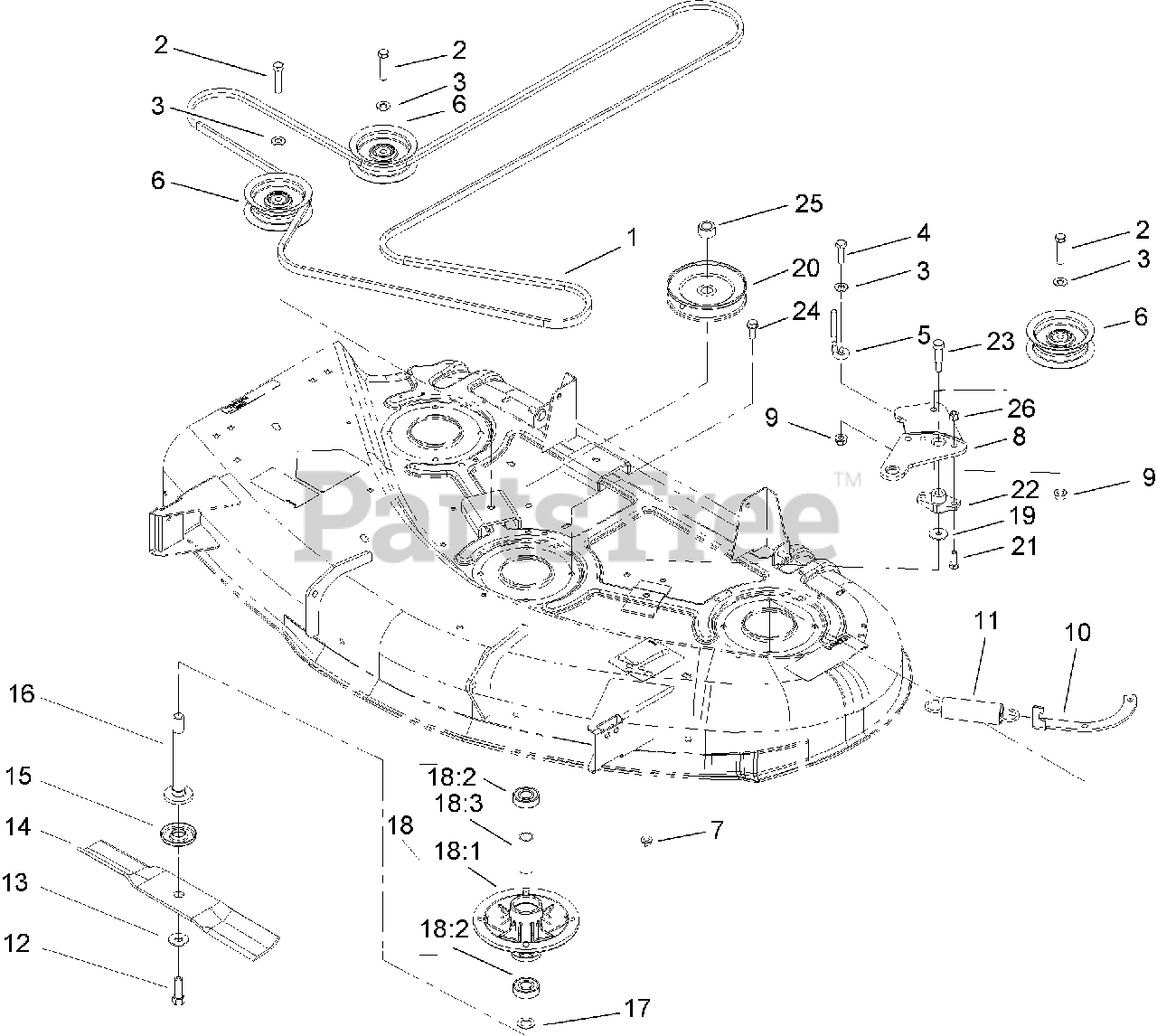

44IN DECK SPINDLE AND DRIVE BELT ASSEMBLY Parts Diagram

  • Title

$253.99

$

Usually ships in 3-6 days

0

2

Lawn-Boy 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

3

Lawn-Boy 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

4

Lawn-Boy 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

5

Lawn-Boy 107-7307

GUIDE-IDLER, BELT
(Superseded to 138-7270)

$2.99

$

In Stock, Qty 6

0

6

Lawn-Boy 106-2175

PULLEY-IDLER, FLAT
(Superseded to 132-9420)

$34.99

$

In Stock, Qty 20+

0

$3.49

$

In Stock, Qty 12

0

8

$45.99

$

In Stock, only 1 left!

0

$0.99

$

In Stock, Qty 20+

0

10

Lawn-Boy 107-2513

BRACKET-SPRING

$

$

Not available

11

Lawn-Boy 1-603414

SPRING-EXTENSION

$20.99

$

Usually ships in 3-6 days

0

12

Lawn-Boy 26-0671

SCREW-BLADE

$9.49

$

In Stock, Qty 20+

0

13

Lawn-Boy 3290-465

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

$29.99

$

Usually ships in 3-6 days

0

15

Lawn-Boy 80-4360

SHIELD-BEARING

$18.99

$

In Stock, Qty 13

0

16

Lawn-Boy 80-4341

SHAFT-SPINDLE

$47.99

$

In Stock, only 1 left!

0

17

$6.49

$

In Stock, Qty 12

0

18

Spindle ASM

Note: Not serviced separately

$

$

Not available

18:1

Lawn-Boy 88-4510

HOUSING-SPINDLE

$91.99

$

In Stock, Qty 7

0

18:2

Lawn-Boy 100-1048

BEARING-BALL
(Superseded to 38-7820)

$13.99

$

In Stock, Qty 20+

0

18:3

Lawn-Boy 62-3661

SPACER-BEARING

$15.99

$

In Stock, Qty 15

0

19

Lawn-Boy 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 9

0

20

Lawn-Boy 107-1724

PULLEY ASM

$72.99

$

Usually ships in 3-6 days

0

21

Lawn-Boy 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

22

Lawn-Boy 88-4980

BUSHING-ARM, IDLER

$14.99

$

In Stock, only 2 left!

0

23

Lawn-Boy 7-0030

BOLT-SHOULDER

$9.49

$

In Stock, only 2 left!

0

24

Lawn-Boy 32144-41

SCREW-TAPTITE

$5.49

$

In Stock, Qty 20+

0

25

Lawn-Boy 3219-6

NUT-HEX

$3.99

$

In Stock, Qty 20+

0

26

Lawn-Boy 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 14

0
