81250 (Z 350 HLX) - Lawn-Boy Precision Zero-Turn Mower (SN: 250000001 - 250999999) (2005) 44IN DECK ASSEMBLY Parts Diagram

Precision Zero-Turn Mower

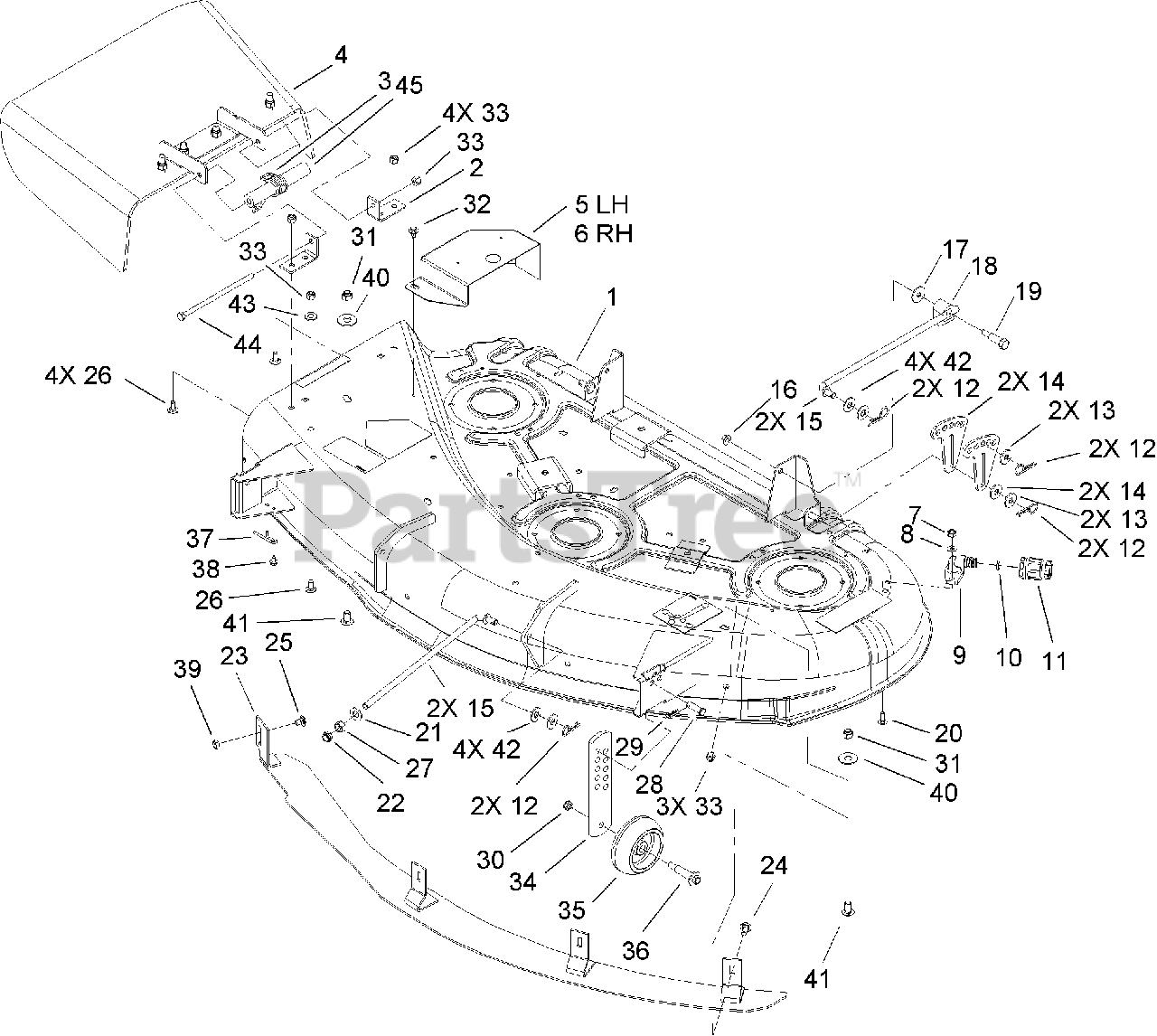

44IN DECK ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 108-6114

44 INCH DECK ASM

$

$

Not available

2

Lawn-Boy 108-6196-03

BRACKET-PIVOT, DEFLECTOR

$19.99

$

In Stock, only 1 left!

0

3

Lawn-Boy 108-4052

SPRING-TORSION

$25.99

$

In Stock, only 1 left!

0

4

Lawn-Boy 108-8591

DEFLECTOR ASM

$237.99

$

Usually ships in 3-6 days

0

5

Lawn-Boy 104-3646-03

COVER-BELT, LH

Note: Not illustrated

$

$

Not available

6

Lawn-Boy 104-3645-03

COVER-BELT, RH

$

$

Not available

7

Lawn-Boy 3296-16

NUT-LOCK, NI

$1.49

$

In Stock, only 3 left!

0

8

Lawn-Boy 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

9

Lawn-Boy 95-2747

FITTING-WASHOUT
(Superseded to 133-9289)

$6.49

$

In Stock, Qty 5

0

10

Lawn-Boy 46-6290

O-RING

$2.99

$

In Stock, only 4 left!

0

11

Lawn-Boy 95-3270

CONNECTOR-HOSE

$23.99

$

Usually ships in 3-6 days

0

12

Lawn-Boy 9335054

PIN-HAIR

$1.99

$

In Stock, Qty 20+

0

13

Lawn-Boy 80-6990

WASHER-HARDENED

$5.49

$

In Stock, Qty 11

0

14

Lawn-Boy 88-5570-03

LINK-ADJUSTING, HOC

$15.99

$

Usually ships in 3-6 days

0

15

Lawn-Boy 105-3437

ROD-HANGER

$32.99

$

In Stock, only 4 left!

0

16

Lawn-Boy 32128-25

NUT-HF

$3.49

$

In Stock, Qty 12

0

17

Lawn-Boy 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 6

0

18

Lawn-Boy 88-4230

TRUNNION-HOC

$15.99

$

In Stock, only 1 left!

0

19

Lawn-Boy 7-0030

BOLT-SHOULDER

$9.49

$

In Stock, only 2 left!

0

20

Lawn-Boy 3229-1

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

21

Lawn-Boy 3256-25

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

22

Lawn-Boy 3296-38

NUT-LOCK, NI

$2.99

$

In Stock, only 4 left!

0

23

Lawn-Boy 93-9950-03

Baffle

$166.99

$

In Stock, only 1 left!

0

24

Lawn-Boy 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

25

Lawn-Boy 3230-19

SCREW-CARR

$6.49

$

In Stock, only 3 left!

0

26

Lawn-Boy 3230-18

SCREW-CARR

$5.49

$

In Stock, Qty 5

0

27

Lawn-Boy 3219-4

NUT-HEX

$3.99

$

Usually ships in 3-6 days

0

28

Lawn-Boy 283-2

PIN-CLEVIS

$13.99

$

In Stock, only 2 left!

0

29

Lawn-Boy 3290-307

PIN-HAIR
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0

30

Lawn-Boy 3296-59

NUT-LOCK, NI
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 17

0

31

Lawn-Boy 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

32

Lawn-Boy 46-8560

SCREW-HHF

$1.99

$

In Stock, only 4 left!

0

33

Lawn-Boy 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

34

Lawn-Boy 93-8010

PLATE-GAGE, WHEEL

$77.99

$

In Stock, only 2 left!

0

35

Lawn-Boy 701756

WHEEL-GAGE

$8.49

$

In Stock, Qty 14

0

36

Lawn-Boy 56-6591

BOLT-WHEEL

$9.49

$

In Stock, only 3 left!

0

37

Lawn-Boy 94-1981

SPRING-GAGE, WHEEL

$8.99

$

In Stock, only 2 left!

0

38

Lawn-Boy 32104-76

SCREW

$2.99

$

In Stock, Qty 20+

0

39

Lawn-Boy 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 8

0

40

Lawn-Boy 3256-5

WASHER-FLAT

$0.99

$

In Stock, Qty 9

0

41

Lawn-Boy 3231-21

SCREW-CARR

$1.49

$

In Stock, only 1 left!

0

42

Lawn-Boy 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

43

Lawn-Boy 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 14

0

44

Lawn-Boy 108-8539

BOLT-HH

$16.99

$

Usually ships in 3-6 days

0

45

Lawn-Boy 108-7159

SPACER-DEFLECTOR

$11.99

$

Usually ships in 3-6 days

0
