8125 - Lawn-Boy Walk-Behind Mower (SN: E00000001 - E99999999) (1986) ENGINE GROUP MODELS: 8125 Parts Diagram

Walk-Behind Mower

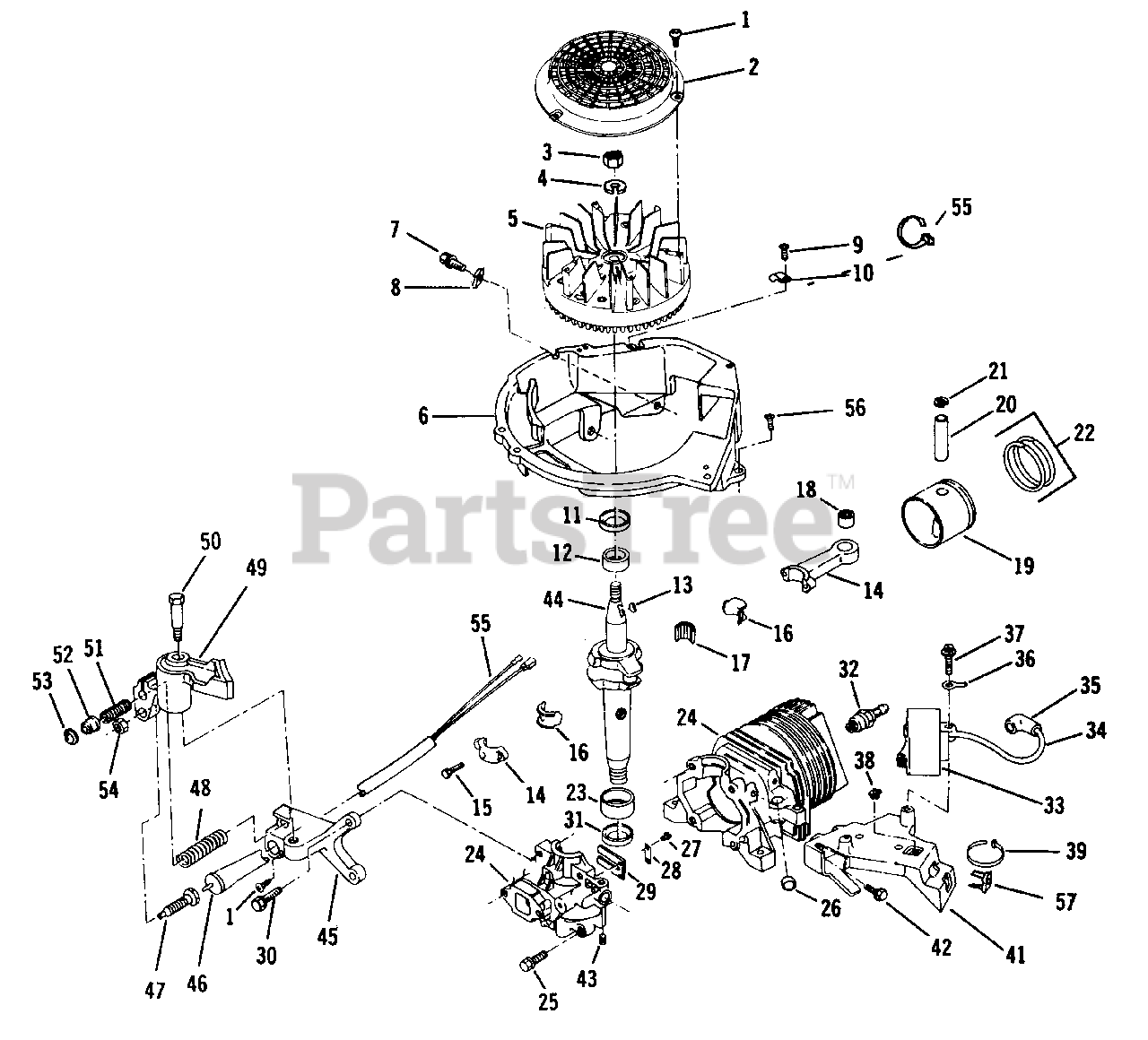

ENGINE GROUP MODELS: 8125 Parts Diagram

  • Title

1

Lawn-Boy 606537

Screw-Flywheel Screen and Switch

Note: Important Note: Replacement parts may not always be available in matching colors.

$2.49

$

In Stock, only 4 left!

0

2

Lawn-Boy 611375

Screen-Flywheel

Note: Important Note: Replacement parts may not always be available in matching colors. Used on Models 4600, 5253, and 8125.

$

$

Not available

2

Lawn-Boy 609465

Screen-Flywheel

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

2

Lawn-Boy 610745

Screen-Flywheel

Note: Important Note: Replacement parts may not always be available in matching colors. Used on Models 4261, 7035 and 7072A.

$

$

Not available

3

Lawn-Boy 130743

Nut-Flywheel

Note: Important Note: Replacement parts may not always be available in matching colors.

$2.99

$

In Stock, Qty 6

0

4

Lawn-Boy 303807

Lockwasher

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

5

Lawn-Boy 683580

Flywheel Assembly

Note: Important Note: Replacement parts may not always be available in matching colors.

$318.99

$

In Stock, only 1 left!

0

6

Lawn-Boy 611190

Base-Shroud

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

6

Lawn-Boy 683612

Base-Shroud

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

7

Lawn-Boy 609947

Screw

Note: Important Note: Replacement parts may not always be available in matching colors.

$9.99

$

Usually ships in 3-6 days

0

8

Lawn-Boy 611191

Clip-"J"

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

9

Lawn-Boy 609808

Screw-Clamp to Shroud Base

Note: Important Note: Replacement parts may not always be available in matching colors. Used on Models 4261, 4600, 5253, 7072A, & 8125.

$11.99

$

Usually ships in 3-6 days

0

10

Lawn-Boy 611081

Clamp

Note: Important Note: Replacement parts may not always be available in matching colors. Used on Models 4261, 4600, 5253, 7072A, & 8125.

$

$

Not available

11

Lawn-Boy 605020

Oil Seal-Upper
(Superseded to 611396)

Note: Important Note: Replacement parts may not always be available in matching colors.

$5.99

$

In Stock, Qty 10

0

12

Lawn-Boy 681830

Bearing-Main-Upper

Note: Important Note: Replacement parts may not always be available in matching colors.

$35.99

$

Usually ships in 3-6 days

0

13

Lawn-Boy 607199

Key-Flywheel

Note: Important Note: Replacement parts may not always be available in matching colors.

$4.99

$

In Stock, Qty 9

0

Lawn-Boy 682677

Piston and Connecting Rod Assembly
(Superseded to 92-4925)

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

14

Lawn-Boy 682970

Conn. Rod Assembly
(Superseded to 92-4921)

Note: Important Note: Replacement parts may not always be available in matching colors.

$206.99

$

In Stock, only 2 left!

0

15

Lawn-Boy 611393

Screw-Cap

Note: Important Note: Replacement parts may not always be available in matching colors.

$19.99

$

Usually ships in 3-6 days

0

16

Lawn-Boy 677982

Liner Split

Note: Important Note: Replacement parts may not always be available in matching colors.

$40.99

$

In Stock, only 2 left!

0

17

Lawn-Boy 677963

Needle Bearing Set
(Superseded to 683911)

Note: Important Note: Replacement parts may not always be available in matching colors.

$23.99

$

In Stock, Qty 5

0

18

Lawn-Boy 679144

Bearing Assembly

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

19

Lawn-Boy 682986

Piston and Ring Set
(Superseded to 92-4923)

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

20

Lawn-Boy 606608

Wrist Pin
(Superseded to 94-5774)

Note: Important Note: Replacement parts may not always be available in matching colors.

$9.99

$

Usually ships in 3-6 days

0

21

Lawn-Boy 303712

Retaining Ring

Note: Important Note: Replacement parts may not always be available in matching colors.

$2.99

$

In Stock, Qty 11

0

22

Lawn-Boy 681737

Ring Set

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

23

Lawn-Boy 681831

Bearing-Main-Lower

Note: Important Note: Replacement parts may not always be available in matching colors.

$23.99

$

In Stock, only 1 left!

0

24

Lawn-Boy 683026

Cylinder and Crankcase Cover Assembly
(Superseded to 683702)

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

Lawn-Boy 610372

Sealant

Note: Important Note: Replacement parts may not always be available in matching colors.

$25.99

$

Usually ships in 3-6 days

0

25

Lawn-Boy 609918

Screw-Cover to Crankcase

Note: Important Note: Replacement parts may not always be available in matching colors.

$3.49

$

Usually ships in 3-6 days

0

26

Lawn-Boy 609123

Plug

Note: Important Note: Replacement parts may not always be available in matching colors.

$2.99

$

Usually ships in 3-6 days

0

27

Lawn-Boy 303761

Screw-Reed to C'case Cover
(Superseded to 612872)

Note: Important Note: Replacement parts may not always be available in matching colors.

$2.49

$

In Stock, Qty 5

0

28

Lawn-Boy 602587

Plate-Reed Hold Down

Note: Important Note: Replacement parts may not always be available in matching colors.

$2.99

$

Usually ships in 3-6 days

0

29

Lawn-Boy 602588

Reed

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

30

Lawn-Boy 609545

Screw-Brake Mtg. Brk't.

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

31

Lawn-Boy 611396

Oil Seal-Lower

Note: Important Note: Replacement parts may not always be available in matching colors.

$5.99

$

In Stock, Qty 10

0

32

Lawn-Boy 605885

Spark Plug
(Superseded to 614009)

Note: Important Note: Replacement parts may not always be available in matching colors.

$5.49

$

In Stock, only 2 left!

0

33

Lawn-Boy 683215

C. D. Ignition Module and Lead Assembly
(Superseded to 100-2948)

Note: Important Note: Replacement parts may not always be available in matching colors.

$107.99

$

In Stock, only 1 left!

0

Lawn-Boy 318535

Adhesive

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Currently unavailable

34

Lawn-Boy 681678

High Tension Lead and Lower Assembly

Note: Important Note: Replacement parts may not always be available in matching colors.

$23.99

$

Usually ships in 3-6 days

0

35

Lawn-Boy 510231

Spring Terminal
(Superseded to 684698)

Note: Important Note: Replacement parts may not always be available in matching colors.

$6.99

$

Usually ships in 3-6 days

0

36

Lawn-Boy 609651

Terminal-Ground Lead

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

37

Lawn-Boy 607526

Screw-C.D. Mounting
(Superseded to 32105-12)

Note: Important Note: Replacement parts may not always be available in matching colors.

$2.99

$

In Stock, only 4 left!

0

38

Lawn-Boy 605120

Grommet-C.D. Bracket

Note: Important Note: Replacement parts may not always be available in matching colors.

$3.99

$

In Stock, Qty 9

0

39

Lawn-Boy 320107

Tie Strap
(Superseded to 614249)

Note: Important Note: Replacement parts may not always be available in matching colors.

$1.49

$

In Stock, Qty 6

0

41

Lawn-Boy 611374

Bracket-C.D. Mounting
(Superseded to 613073)

Note: Important Note: Replacement parts may not always be available in matching colors. Used on Model 5253.

$

$

Not available

41

Lawn-Boy 609609

Bracket-C.D. Mounting

Note: Important Note: Replacement parts may not always be available in matching colors. Used on Models 4261, 4600 and 8125.

$83.99

$

Usually ships in 3-6 days

0

41

Lawn-Boy 609120

Bracket-C.D. Mounting

Note: Important Note: Replacement parts may not always be available in matching colors. Used on Models 4261, 7035 and 7072A.

$

$

Not available

42

Lawn-Boy 307028

Screw
(Superseded to 614343)

Note: Important Note: Replacement parts may not always be available in matching colors.

$2.99

$

In Stock, only 4 left!

0

43

Lawn-Boy 611073

Set Screw-Starter Assembly
(Superseded to 3274-10)

Note: Important Note: Replacement parts may not always be available in matching colors.

$9.99

$

In Stock, Qty 13

0

44

Lawn-Boy 610747

Crankshaft
(Superseded to 94-5713)

Note: Important Note: Replacement parts may not always be available in matching colors.

$284.99

$

Usually ships in 3-6 days

0

45

Lawn-Boy 611192

Bracket-Brake

Note: Important Note: Replacement parts may not always be available in matching colors.

$111.99

$

Usually ships in 3-6 days

0

46

Lawn-Boy 683596

Brake Switch Assembly
(Superseded to 93-4307)

Note: Important Note: Replacement parts may not always be available in matching colors.

$42.99

$

Usually ships in 3-6 days

0

47

Lawn-Boy 611510

Plunger

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

48

Lawn-Boy 611211

Spring-Brake

Note: Important Note: Replacement parts may not always be available in matching colors.

$13.99

$

Usually ships in 3-6 days

0

49

Lawn-Boy 682683

Brake Assembly

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

50

Lawn-Boy 611212

Bolt-Shoulder
(Superseded to 613529)

Note: Important Note: Replacement parts may not always be available in matching colors.

$13.99

$

Usually ships in 3-6 days

0

51

Lawn-Boy 611214

Spring-Cable Retainer

Note: Important Note: Replacement parts may not always be available in matching colors.

$8.49

$

In Stock, only 1 left!

0

52

Lawn-Boy 611509

Actuator-Brake Lever

Note: Important Note: Replacement parts may not always be available in matching colors.

$4.99

$

In Stock, only 3 left!

0

53

Lawn-Boy 611213

Retainer

Note: Important Note: Replacement parts may not always be available in matching colors.

$1.99

$

In Stock, only 4 left!

0

54

Lawn-Boy 304753

Nut
(Superseded to 700755)

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

55

Lawn-Boy 317893

Tie Strap

Note: Important Note: Replacement parts may not always be available in matching colors. Used on Model 4261.

$

$

Not available

56

Lawn-Boy 609808

Screw-Shroud Base to C.D. Brk't.

Note: Important Note: Replacement parts may not always be available in matching colors.

$11.99

$

Usually ships in 3-6 days

0

57

Lawn-Boy 605120

Grommet

Note: Important Note: Replacement parts may not always be available in matching colors. Used on Models 4261, 5253, 7035 and 8125.

$3.99

$

In Stock, Qty 9

0

57

Lawn-Boy 611380

Grommet

Note: Important Note: Replacement parts may not always be available in matching colors. Used on Models 4261 and 7035.

$3.49

$

Usually ships in 3-6 days

0

57

Lawn-Boy 609900

Clip

Note: Important Note: Replacement parts may not always be available in matching colors.

$9.99

$

Usually ships in 3-6 days

0
