81246 (Z 340 HLX) - Lawn-Boy Precision Zero-Turn Mower (SN: 260000001 - 260999999) (2006) STYLING ASSEMBLY Parts Diagram

Precision Zero-Turn Mower

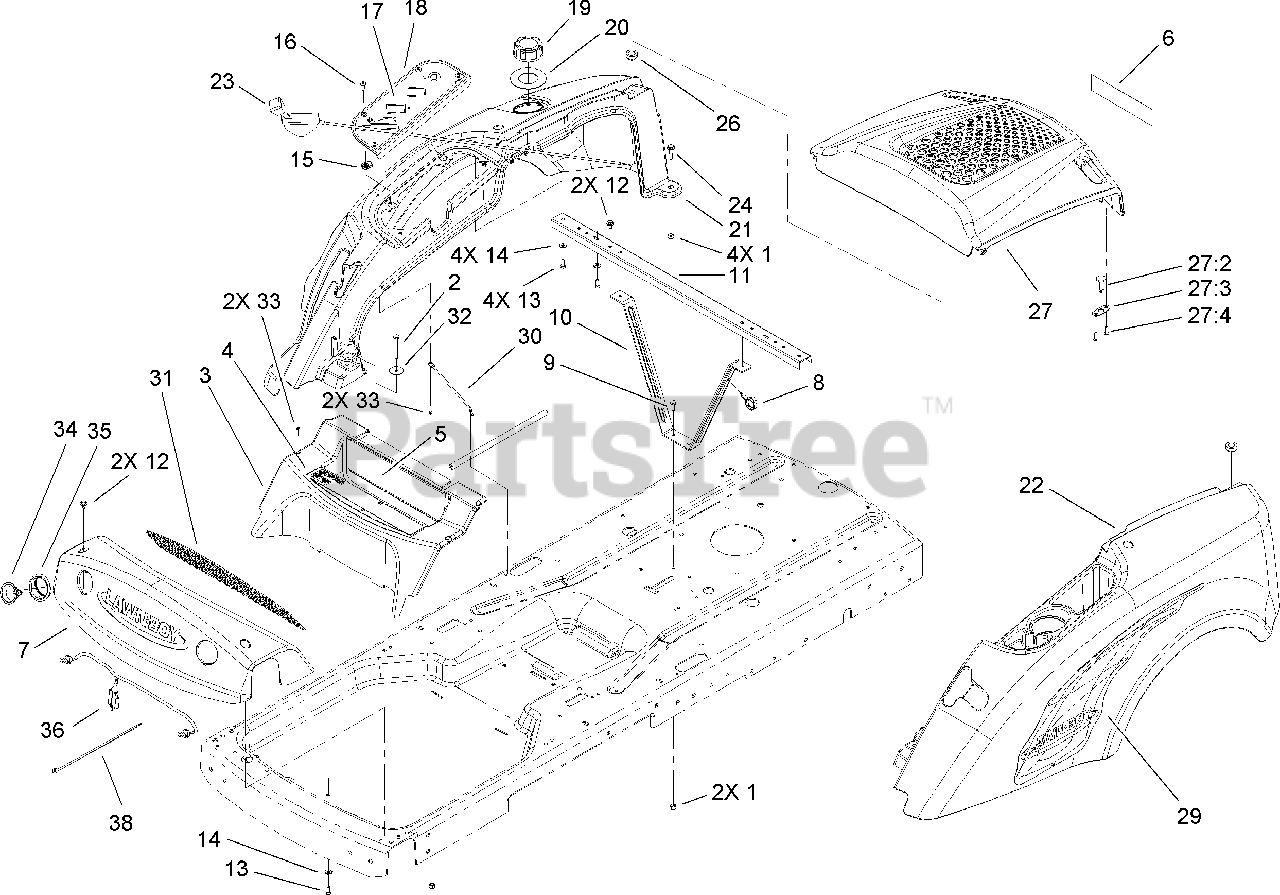

STYLING ASSEMBLY Parts Diagram

  • Title
1

Lawn-Boy 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

2

Lawn-Boy 321-18

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

3

Lawn-Boy 110-6541

PANEL-KICK

$

$

Not available

4

Lawn-Boy 108-8575

DECAL-DANGER, CE

$

$

Not available

$

$

Not available

6

Lawn-Boy 110-6556

DECAL-LOGO

$

$

Not available

7

$

$

Not available

8

Lawn-Boy 105-1853

CLAMP-HOSE

$5.49

$

In Stock, only 4 left!

0

9

Lawn-Boy 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

10

Lawn-Boy 107-9173-03

BRACE-SUPPORT

$

$

Not available

11

Lawn-Boy 108-2313-03

CHANNEL-CROSS

$

$

Not available

12

Lawn-Boy 46-8560

SCREW-HHF

$1.99

$

In Stock, Qty 20+

0

13

Lawn-Boy 46-8090

SCREW-PLASTITE

$

$

Not available

14

Lawn-Boy 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

15

$2.99

$

In Stock, Qty 20+

0

16

Lawn-Boy 3258-166

SCREW-PRH

$0.99

$

In Stock, Qty 20+

0

$

$

Not available

18

Lawn-Boy 107-9174-03

PANEL-CONTROL

$

$

Not available

19

Lawn-Boy 93-7198

GAS CAP ASM

$15.99

$

In Stock, Qty 7

0

20

Lawn-Boy 108-6150

WASHER-SEAL, RUBBER

$4.49

$

In Stock, only 3 left!

0

21

Lawn-Boy 107-9168

COVER-SIDE, RH

$

$

Not available

22

Lawn-Boy 107-9169

COVER-SIDE, LH

$

$

Not available

23

Lawn-Boy 104-8081

CABLE-THROTTLE

$115.99

$

In Stock, only 2 left!

0

24

Lawn-Boy 108-6182

SCREW-SHOULDER

$27.99

$

Usually ships in 3-6 days

0

26

$2.99

$

Usually ships in 3-6 days

0

27

Lawn-Boy 108-2334

HOOD COVER ASM

$

$

Not available

27:2

$

$

Not available

27:3

$

$

Not available

27:4

$1.49

$

In Stock, Qty 20+

0

28

Lawn-Boy 110-6554

DECAL-SIDE COVER, RH

Note: Not illustrated

$

$

Not available

29

Lawn-Boy 110-6553

DECAL-SIDE COVER, LH

$

$

Not available

30

Lawn-Boy 108-2391

ROD-SUPPORT

$

$

Not available

31

Lawn-Boy 108-6162

FOOTMAT-FOOTREST

$

$

Not available

32

Lawn-Boy 3256-58

WASHER-FLAT
(Superseded to 3256-55)

$5.49

$

In Stock, Qty 11

0

33

Lawn-Boy 94-4496

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

34

Lawn-Boy 107-9179

LIGHT-HALOGEN
(Superseded to 110-6512)

$

$

Not available

35

Lawn-Boy 107-9178

BEZEL-RUBBER

$

$

Not available

36

Lawn-Boy 108-6159

HARNESS-HEADLIGHTS, FOOTREST

$

$

Not available

38

Lawn-Boy 250-4

TIE-CABLE

$0.99

$

Usually ships in 3-6 days

0
