81246 (Z 340 HLX) - Lawn-Boy Precision Zero-Turn Mower (SN: 260000001 - 260999999) (2006) PISTON AND CONNECTING ROD ASSEMBLY HONDA GXV530 EXA2LB Parts Diagram

Precision Zero-Turn Mower

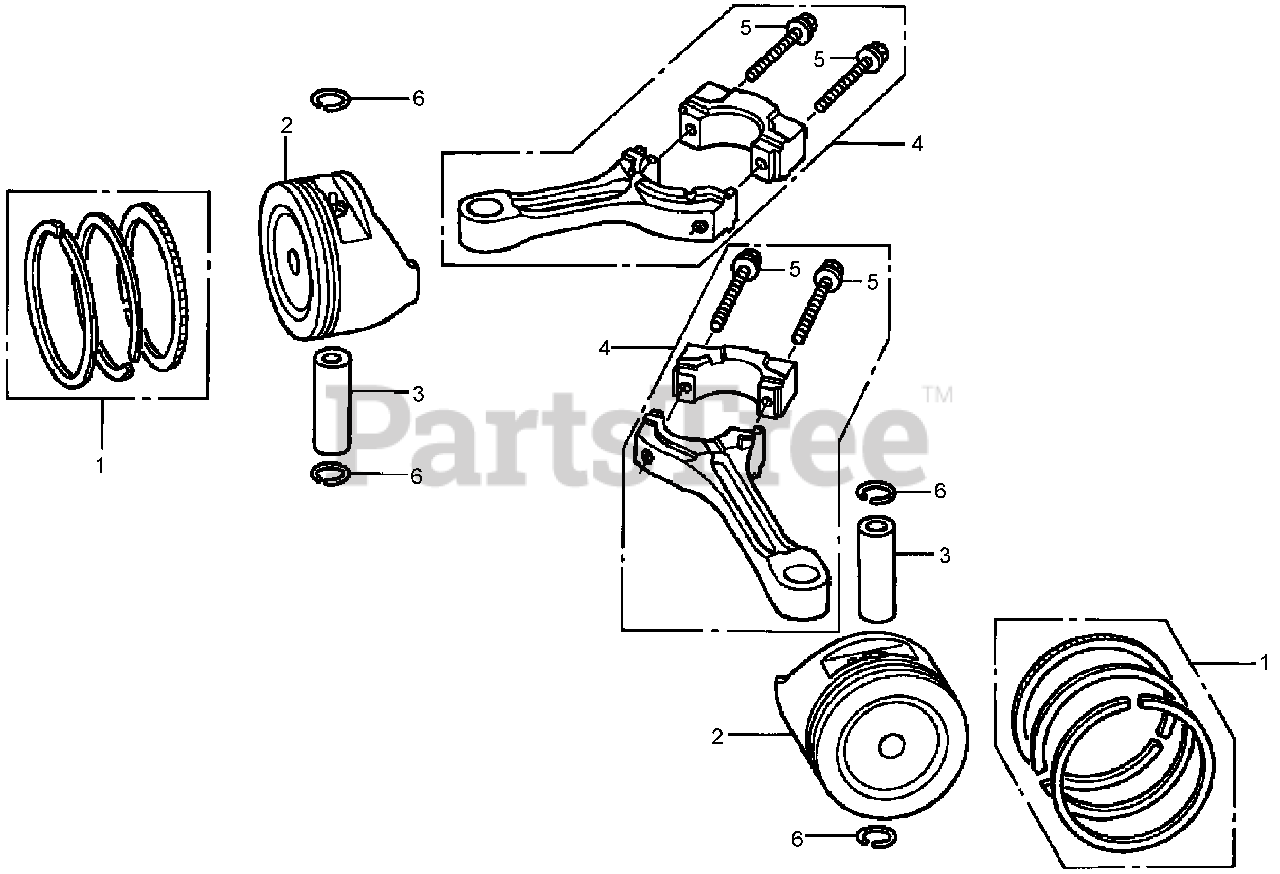

PISTON AND CONNECTING ROD ASSEMBLY HONDA GXV530 EXA2LB Parts Diagram

  • Title
1

Lawn-Boy 13010-Z0A-003

PISTON RING SET (STD) (NIPPON)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

1

Lawn-Boy 13010-Z0A-014

PISTON RING SET

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

2

Lawn-Boy 13101-Z0A-800

PISTON (STD)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

3

Lawn-Boy 13111-ZJ1-840

PIN-PISTON

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

4

Lawn-Boy 13200-Z0A-801

CONNECTING ROD ASM

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

5

Lawn-Boy 90001-ZN1-000

BOLT-ROD, CONNECTING (6X37)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

6

Lawn-Boy 90551-ZE1-000

CLIP-PIN, PISTON (18 mm)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable
