81245 (Z 340 HLX) - Lawn-Boy Precision Zero-Turn Mower (SN: 270000001 - 270999999) (2007) Fuel Pump Assembly Honda GXV530 EXA2LB Parts Diagram

Precision Zero-Turn Mower

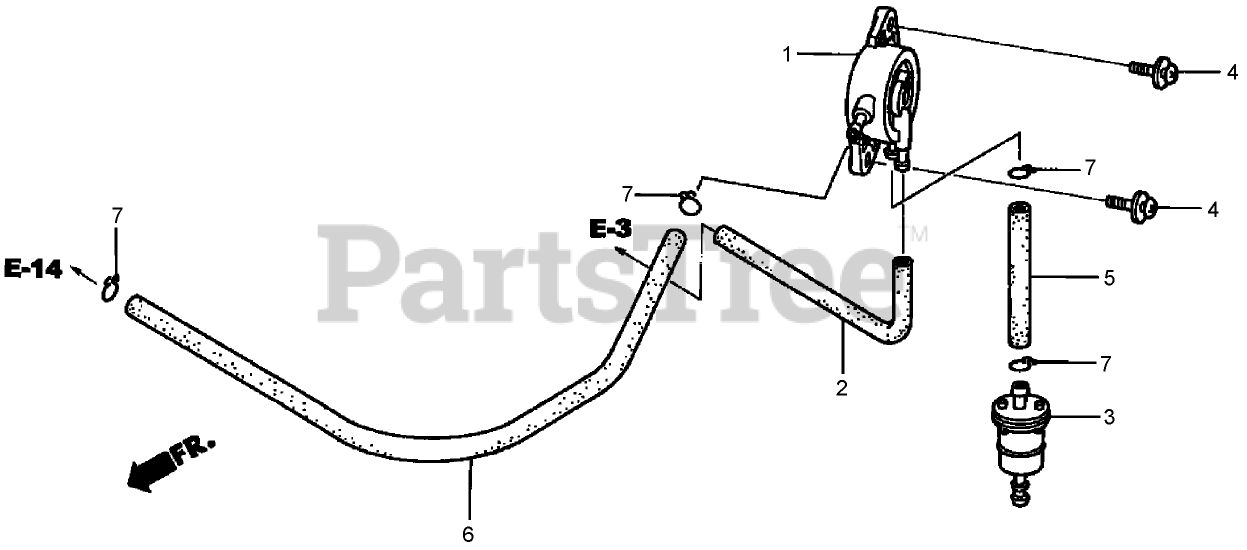

Fuel Pump Assembly Honda GXV530 EXA2LB Parts Diagram

  • Title
1

Lawn-Boy 16700-ZL8-013

FUEL PUMP ASM

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable

2

Lawn-Boy 16882-Z0A-000

TUBE-DIAPHRAGM

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable

3

Lawn-Boy 16910-ZV4-015

FILTER-FUEL

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable

4

Lawn-Boy 93894-05016-00

SCREW-WASHER (5X16)

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable

5

Lawn-Boy 95001-55008-60M

FUEL-HOSE (5.5X8000) (5.5X100)

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable

6

Lawn-Boy 95001-55008-60M

FUEL-HOSE (5.5X8000) (5.5X100)

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable

7

Lawn-Boy 95002-02100

CLIP-TUBE (B10)

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable
