81245 (Z 340 HLX) - Lawn-Boy Precision Zero-Turn Mower (SN: 270000001 - 270999999) (2007) Control Assembly Parts Diagram

Precision Zero-Turn Mower

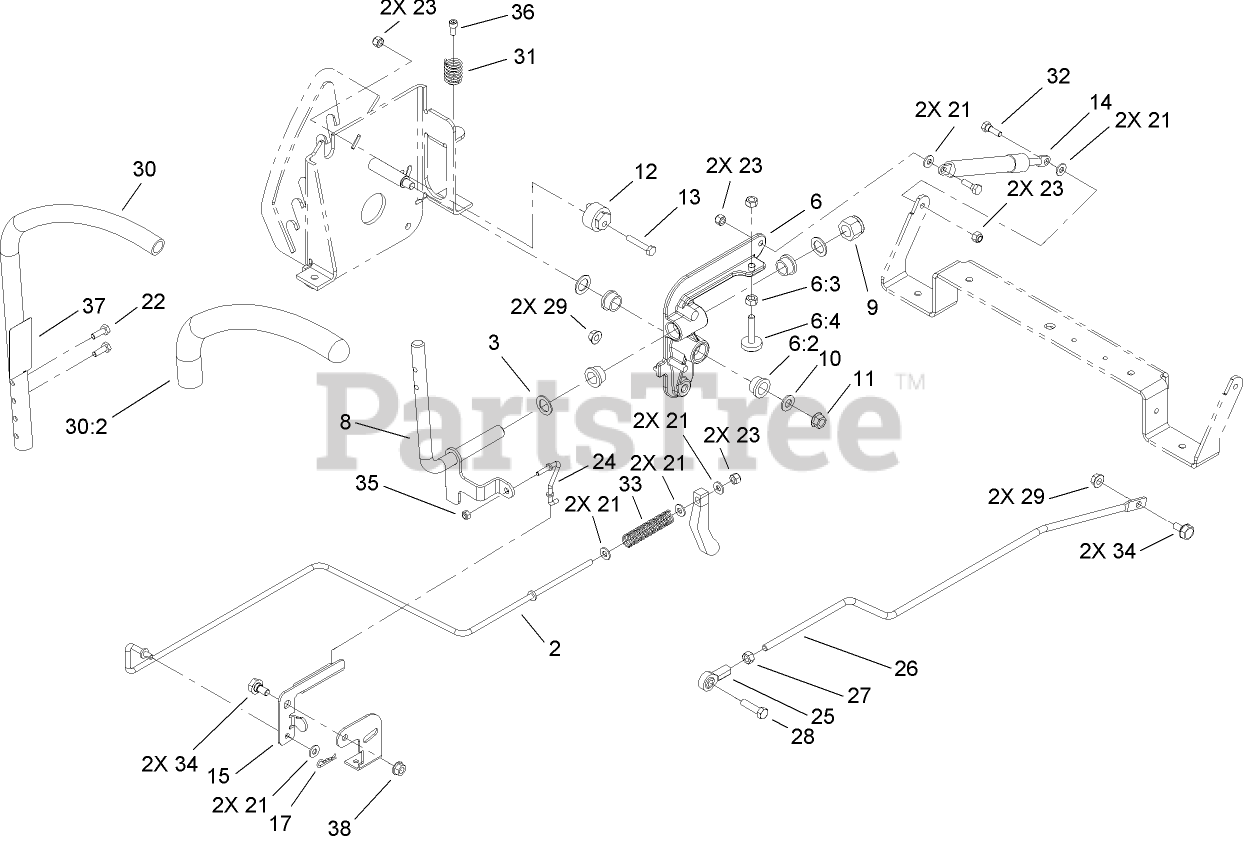

Control Assembly Parts Diagram

  • Title

1

Lawn-Boy 105-7045

ROD-BRAKE, LH

Note: Not illustrated

$31.99

$

Usually ships in 3-6 days

0

2

Lawn-Boy 105-7044

ROD-BRAKE, RH

$31.99

$

Usually ships in 3-6 days

0

3

Lawn-Boy 105-3481

WASHER-THRUST

$1.99

$

Usually ships in 3-6 days

0

5

Lawn-Boy 110-1869

LH ACTIVATOR ARM ASM

Note: Not illustrated

$

$

Not available

5:2

Lawn-Boy 105-3455

BUSHING

Note: Not illustrated

$3.49

$

In Stock, only 4 left!

0

5:3

Lawn-Boy 3217-6

NUT-HEX

Note: Not illustrated

$1.49

$

In Stock, Qty 12

0

5:4

Lawn-Boy 105-3486

STOP-ADJUSTMENT

Note: Not illustrated

$25.99

$

Usually ships in 3-6 days

0

6

Lawn-Boy 110-1870

RH ACTIVATOR ARM ASM

$108.99

$

Usually ships in 3-6 days

0

6:2

Lawn-Boy 105-3455

BUSHING

$3.49

$

In Stock, only 4 left!

0

6:3

Lawn-Boy 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 12

0

6:4

Lawn-Boy 105-3486

STOP-ADJUSTMENT

$25.99

$

Usually ships in 3-6 days

0

7

Lawn-Boy 105-3488

LH PIVOT SHAFT ASM

Note: Not illustrated

$90.99

$

Usually ships in 3-6 days

0

8

Lawn-Boy 105-3487

RH PIVOT SHAFT ASM

$90.99

$

Usually ships in 3-6 days

0

9

Lawn-Boy 3296-53

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

10

Lawn-Boy 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

11

Lawn-Boy 3296-59

See Supercession: 121-4600
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 20+

0

12

Lawn-Boy 107-4874

ECCENTRIC

$15.99

$

Usually ships in 3-6 days

0

13

Lawn-Boy 321-9

SCREW-HH

$4.99

$

In Stock, only 2 left!

0

14

Lawn-Boy 103-2913

See Supercession: 131-4132
(Superseded to 131-4132)

$69.99

$

In Stock, Qty 12

0

15

Lawn-Boy 106-2181

BELLCRANK

$16.99

$

Usually ships in 3-6 days

0

17

Lawn-Boy 1-806003

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

21

Lawn-Boy 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

22

Lawn-Boy 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

23

Lawn-Boy 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

24

Lawn-Boy 106-2179

LINK-BRAKE

$25.99

$

In Stock, only 2 left!

0

25

Lawn-Boy 1-543017

BALLJOINT-RH

$20.99

$

In Stock, Qty 13

0

26

Lawn-Boy 105-7048

ROD-HYDRO

$25.99

$

Usually ships in 3-6 days

0

27

Lawn-Boy 3219-2

NUT-HEX

$0.99

$

In Stock, Qty 20+

0

28

Lawn-Boy 322-6

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

29

Lawn-Boy 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

30

Lawn-Boy 108-6117

HANDLE ASM

$

$

Not available

30:2

Lawn-Boy 108-6187

GRIP

$27.99

$

Usually ships in 3-6 days

0

31

Lawn-Boy 105-3469

SPRING-COMPRESSION

$10.99

$

Usually ships in 3-6 days

0

32

Lawn-Boy 106-2214

BOLT-SHOULDER

$12.99

$

Usually ships in 3-6 days

0

33

Lawn-Boy 105-3465

SPRING-COMPRESSION

$19.99

$

Usually ships in 3-6 days

0

34

Lawn-Boy 37-8771

BOLT-SHOULDER,HFH

$5.49

$

In Stock, Qty 13

0

35

Lawn-Boy 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

36

Lawn-Boy 3274-52

SCREW-HSH

$3.49

$

Usually ships in 3-6 days

0

37

Lawn-Boy 106-8742

DECAL

$

$

Not available

38

Lawn-Boy 32128-25

NUT-HF

$3.49

$

In Stock, Qty 12

0
