81245 (Z 340 HLX) - Lawn-Boy Precision Zero-Turn Mower (SN: 260000001 - 260999999) (2006) CONTROL ASSEMBLY HONDA GXV530 EXA2LB Parts Diagram

Precision Zero-Turn Mower

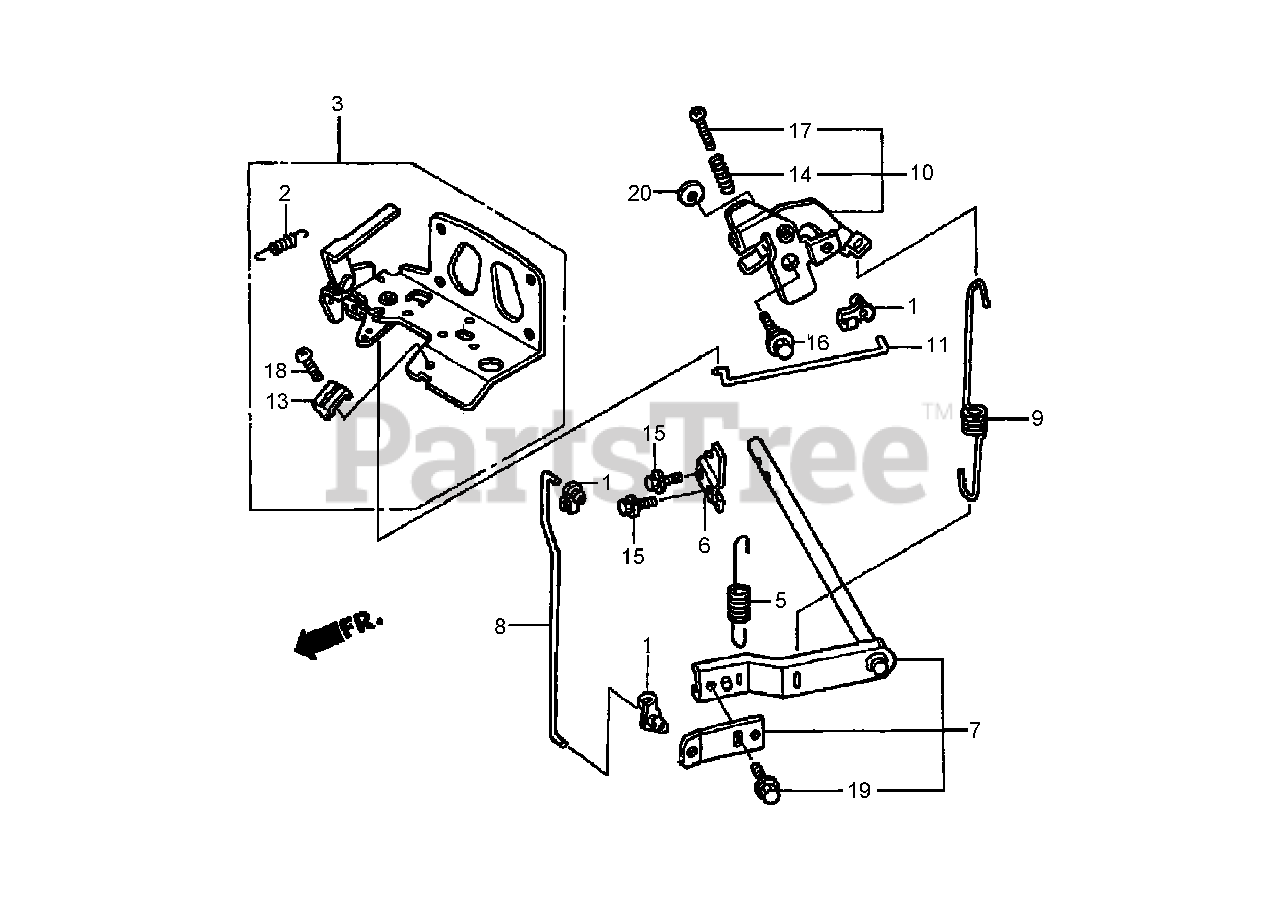

CONTROL ASSEMBLY HONDA GXV530 EXA2LB Parts Diagram

  • Title
1

Lawn-Boy 16263-ZJ7-871

ROD-JOINT

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

2

Lawn-Boy 16268-Z0A-300

SPRING-RETURN, CHOKE

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

3

Lawn-Boy 16500-Z0A-000

CONTROL ASM (1-LEVER)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

5

Lawn-Boy 16534-Z0A-000

SPRING-STARTER (Up to Engine Serial No. 1014986)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

5

Lawn-Boy 16534-Z0P-V00

SPRING-STARTER (From Engine Serial No. 1038646)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

6

Lawn-Boy 16542-Z0A-000

FORK-GOVERNOR

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

7

Lawn-Boy 16550-Z0A-000

ARM-GOVERNOR

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

8

Lawn-Boy 16555-Z0A-000

ROD-GOVERNOR

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

9

Lawn-Boy 16561-Z0A-000

SPRING-GOVERNOR

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

10

Lawn-Boy 16565-Z0A-000

LINK-GOVERNOR

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

11

Lawn-Boy 16566-Z0A-000

ROD-LINK, GOVERNOR

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

13

Lawn-Boy 16576-891-000

Holder-Cable

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

14

Lawn-Boy 16584-883-300

SPRING-ADJUSTING, CONTROL

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

15

Lawn-Boy 90002-892-000

BOLT-FLANGE (5X10)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

16

Lawn-Boy 90015-Z0A-000

BOLT-FLANGE (6MM) (C T200)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

17

Lawn-Boy 90016-ZG9-N30

SCREW-RECESSED (5X25)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

18

Lawn-Boy 90016-Z0A-V00

SCREW-RECESSED (5X18)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

19

Lawn-Boy 95701-06010-00

Bolt-Flange (6X10)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

20

Lawn-Boy 94101-06800

WASHER-PLAIN (6MM)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable
