81245 (Z 340 HLX) - Lawn-Boy Precision Zero-Turn Mower (SN: 250000001 - 250999999) (2005) CYLINDER ASSEMBLY HONDA GXV530 EXA2LB Parts Diagram

Precision Zero-Turn Mower

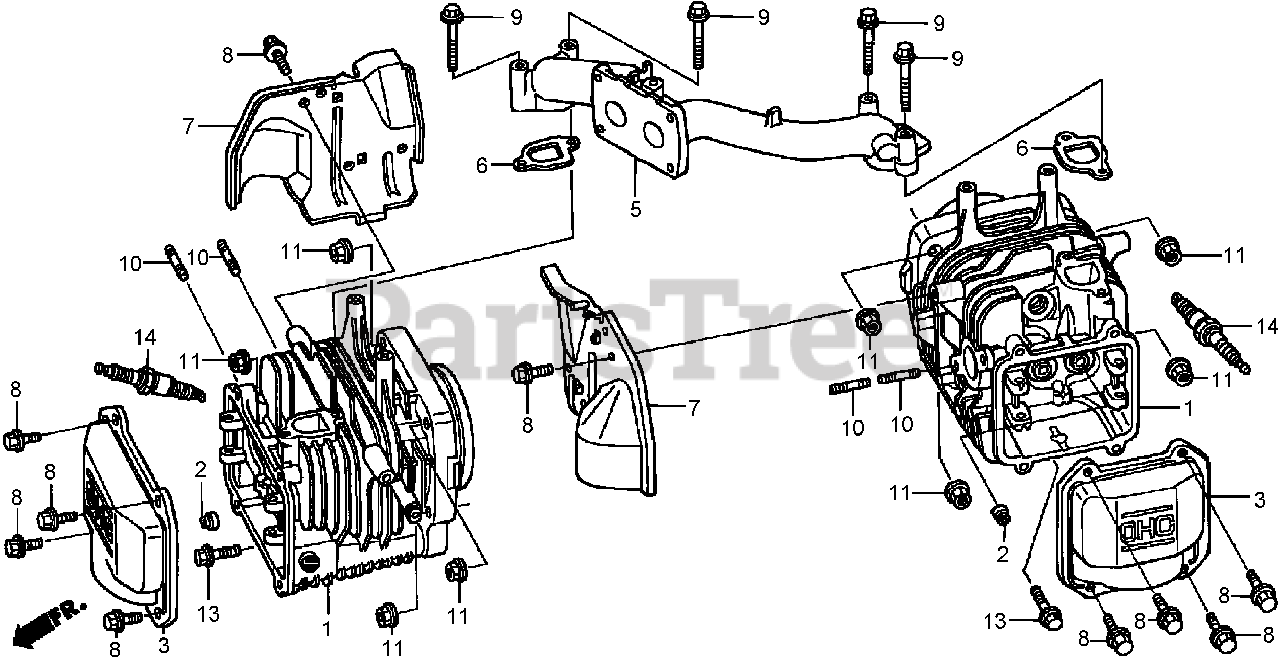

CYLINDER ASSEMBLY HONDA GXV530 EXA2LB Parts Diagram

  • Title
1

Lawn-Boy 12100-Z0A-406

CYLINDER

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

2

Lawn-Boy 12209-422-005

SEAL-STEM, VALVE

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

3

Lawn-Boy 12311-Z0A-000

COVER-HEAD

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

5

Lawn-Boy 17101-Z0A-000

MANIFOLD-INTAKE

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

6

Lawn-Boy 17151-Z0A-000

GASKET-MANIFOLD, INTAKE

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

7

Lawn-Boy 19631-Z0A-000

SHROUD

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

8

Lawn-Boy 90013-883-000

BOLT-FLANGE (6X12) (C T200)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

9

Lawn-Boy 90016-ZE8-000

BOLT-FLANGE (6X45) (C T200)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

10

Lawn-Boy 90045-892-000

BOLT-STUD (6X28)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

11

Lawn-Boy 90201-Z0A-000

NUT-FLANGE (8MM)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

13

Lawn-Boy 95701-06030-00

BOLT-FLANGE (6X30)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

14

Lawn-Boy 98079-54846

SPARK PLUG (B P R4E S) (N G K)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

14

Lawn-Boy 98079-54855

SPARK PLUG (W14E P R-U) (DENSO)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

14

Lawn-Boy 98079-55846

SPARK PLUG (B P R 5E S) (N G K)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

14

Lawn-Boy 98079-55855

SPARK PLUG (W16E P R-U) (DENSO)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable
