81245 (Z 340 HLX) - Lawn-Boy Precision Zero-Turn Mower (SN: 250000001 - 250999999) (2005) 42IN DECK ASSEMBLY Parts Diagram

Precision Zero-Turn Mower

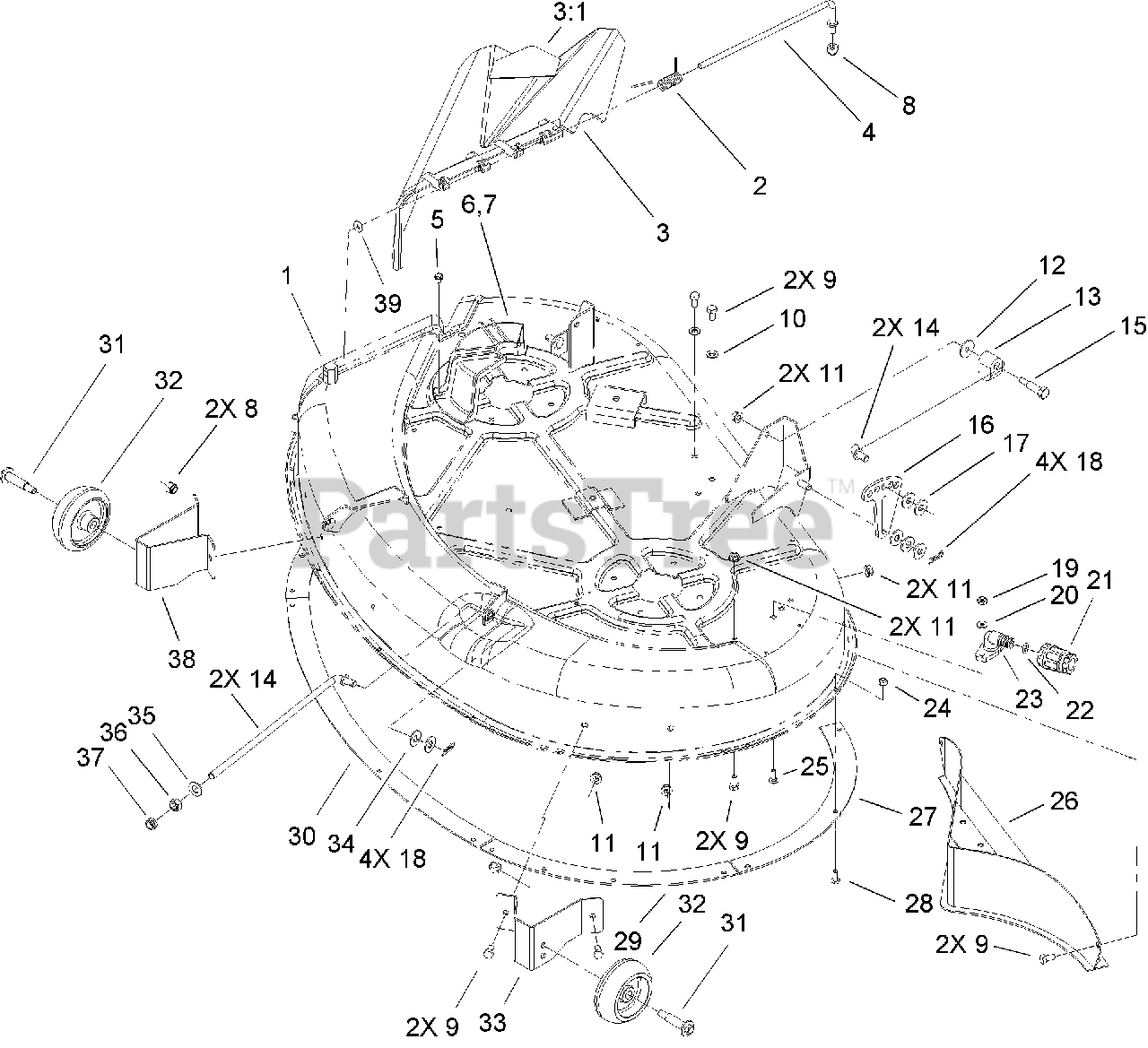

42IN DECK ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 108-6105

42IN DECK ASM
(Superseded to 132-9332)

$

$

Not available

2

Lawn-Boy 57-6950

SPRING

$26.99

$

In Stock, only 1 left!

0

3

Lawn-Boy 93-0317

DEFLECTOR ASM

$84.99

$

Usually ships in 3-6 days

0

3:1

Lawn-Boy 93-1122

DECAL-DANGER

$9.99

$

In Stock, Qty 12

0

4

Lawn-Boy 95-1661

ROD-PIVOT

$20.99

$

In Stock, only 1 left!

0

5

Lawn-Boy 32104-76

SCREW

$2.99

$

In Stock, Qty 20+

0

6

Lawn-Boy 88-4030

LH BELT GUIDE-DECK

Note: Not illustrated

$41.99

$

In Stock, only 1 left!

0

7

Lawn-Boy 88-4020

RH BELT GUIDE-DECK

$41.99

$

In Stock, only 1 left!

0

8

Lawn-Boy 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

9

Lawn-Boy 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

0

10

Lawn-Boy 3256-23

WASHER-FLAT

$2.49

$

In Stock, Qty 20+

0

11

Lawn-Boy 32128-25

NUT-HF

$3.49

$

In Stock, Qty 12

0

12

Lawn-Boy 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 6

0

13

Lawn-Boy 88-4230

TRUNNION-HOC

$15.99

$

In Stock, only 1 left!

0

14

Lawn-Boy 105-3437

ROD-HANGER

$32.99

$

In Stock, only 4 left!

0

15

Lawn-Boy 7-0030

BOLT-SHOULDER

$9.49

$

In Stock, only 2 left!

0

16

Lawn-Boy 88-5570-03

LINK-ADJUSTING, HOC

$15.99

$

Usually ships in 3-6 days

0

17

Lawn-Boy 80-6990

WASHER-HARDENED

$5.49

$

In Stock, Qty 11

0

18

Lawn-Boy 9335054

PIN-HAIR

$1.99

$

In Stock, Qty 20+

0

19

Lawn-Boy 3296-16

NUT-LOCK, NI

$1.49

$

In Stock, only 3 left!

0

20

Lawn-Boy 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

21

Lawn-Boy 95-3270

CONNECTOR-HOSE

$23.99

$

In Stock, only 1 left!

0

22

Lawn-Boy 46-6290

O-RING

$2.99

$

In Stock, only 4 left!

0

23

Lawn-Boy 95-2747

FITTING-WASHOUT
(Superseded to 133-9289)

$6.49

$

In Stock, Qty 5

0

24

Lawn-Boy 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 12

0

25

Lawn-Boy 3229-1

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

26

Lawn-Boy 106-6983-03

REAR BAFFLE ASM

$

$

Not available

27

Lawn-Boy 106-6954-03

RING-BLOW OUT, SIDE
(Superseded to 114-1619-03)

$25.99

$

In Stock, only 2 left!

0

28

Lawn-Boy 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

29

Lawn-Boy 106-6952-03

RING-BLOW OUT, SIDE

$12.99

$

In Stock, only 4 left!

0

30

Lawn-Boy 106-6953-03

RING-BLOW OUT

$25.99

$

In Stock, only 3 left!

0

31

Lawn-Boy 56-6591

BOLT-WHEEL

$9.49

$

In Stock, only 3 left!

0

32

Lawn-Boy 701756

WHEEL-GAGE

$8.49

$

In Stock, Qty 14

0

33

Lawn-Boy 106-8702-03

BRACKET-GAGE WHEEL, FRONT (LH)

$31.99

$

In Stock, only 1 left!

0

34

Lawn-Boy 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

35

Lawn-Boy 3256-25

WASHER-FLAT

$0.99

$

In Stock, Qty 10

0

36

Lawn-Boy 3219-4

NUT-HEX

$3.99

$

Usually ships in 3-6 days

0

37

Lawn-Boy 3296-38

NUT-LOCK, NI

$2.99

$

In Stock, only 4 left!

0

38

Lawn-Boy 106-8701-03

BRACKET-GAGE WHEEL, FRONT (RH)

$51.99

$

In Stock, only 2 left!

0

39

Lawn-Boy 106-8745

O-RING

$1.99

$

In Stock, only 2 left!

0
