81243 (Z 330 LX) - Lawn-Boy Precision Zero-Turn Mower (SN: 260000001 - 260999999) (2006) CRANKSHAFT ASSEMBLY BRIGGS AND STRATTON 286H77-0165-E1 Parts Diagram

Precision Zero-Turn Mower

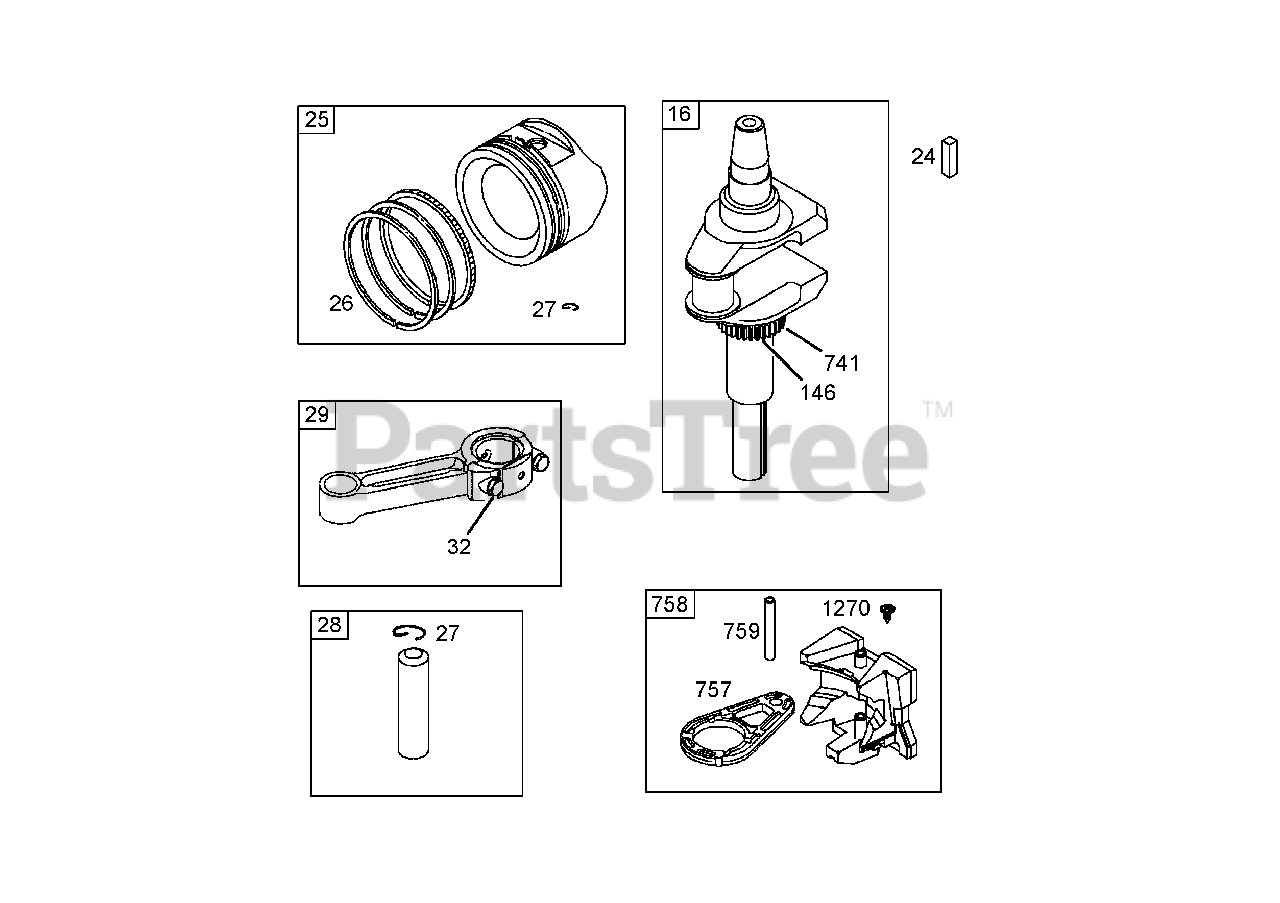

CRANKSHAFT ASSEMBLY BRIGGS AND STRATTON 286H77-0165-E1 Parts Diagram

  • Title

16

Lawn-Boy 697127

Crankshaft

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

24

Lawn-Boy 222698

Key

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

25

Lawn-Boy 698371

Piston ASM (Standard) (After Code Date 03092800)

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

Lawn-Boy 697114

Piston ASM (Standard) (Before Code Date 03092900)

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

Lawn-Boy 698375

Piston ASM (.020in Oversize) (After Code Date 03092800)

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

Lawn-Boy 697117

Piston ASM (.020in Oversize) (Before Code Date 03092900)

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

26

Lawn-Boy 697115

Ring Set (Standard)

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

Lawn-Boy 697120

Ring Set (.020in Oversize)

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

27

Lawn-Boy 698469

Lock-Pin, Piston

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

28

Lawn-Boy 697099

Pin-Piston (Std)

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

29

Lawn-Boy 697126

RodConnecting (Standard)

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

Lawn-Boy 697263

Rod-Connecting (.020in Undersize)

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

32

Lawn-Boy 692852

Screw (Connecting Rod)

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

146

Lawn-Boy 691639

Key-Timing

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

741

Lawn-Boy 697128

Gear-Timing

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

757

Lawn-Boy 697607

Link-Counterweight

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

758

Lawn-Boy 697134

Counterweight

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

759

Lawn-Boy 697392

Pin-Counterweight

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

1270

Lawn-Boy 697156

Plug-Counterweight, AVS

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable
