81235 (Z 310) - Lawn-Boy Precision Zero-Turn Mower (SN: 250000001 - 250999999) (2005) SEAT ASSEMBLY Parts Diagram

Precision Zero-Turn Mower

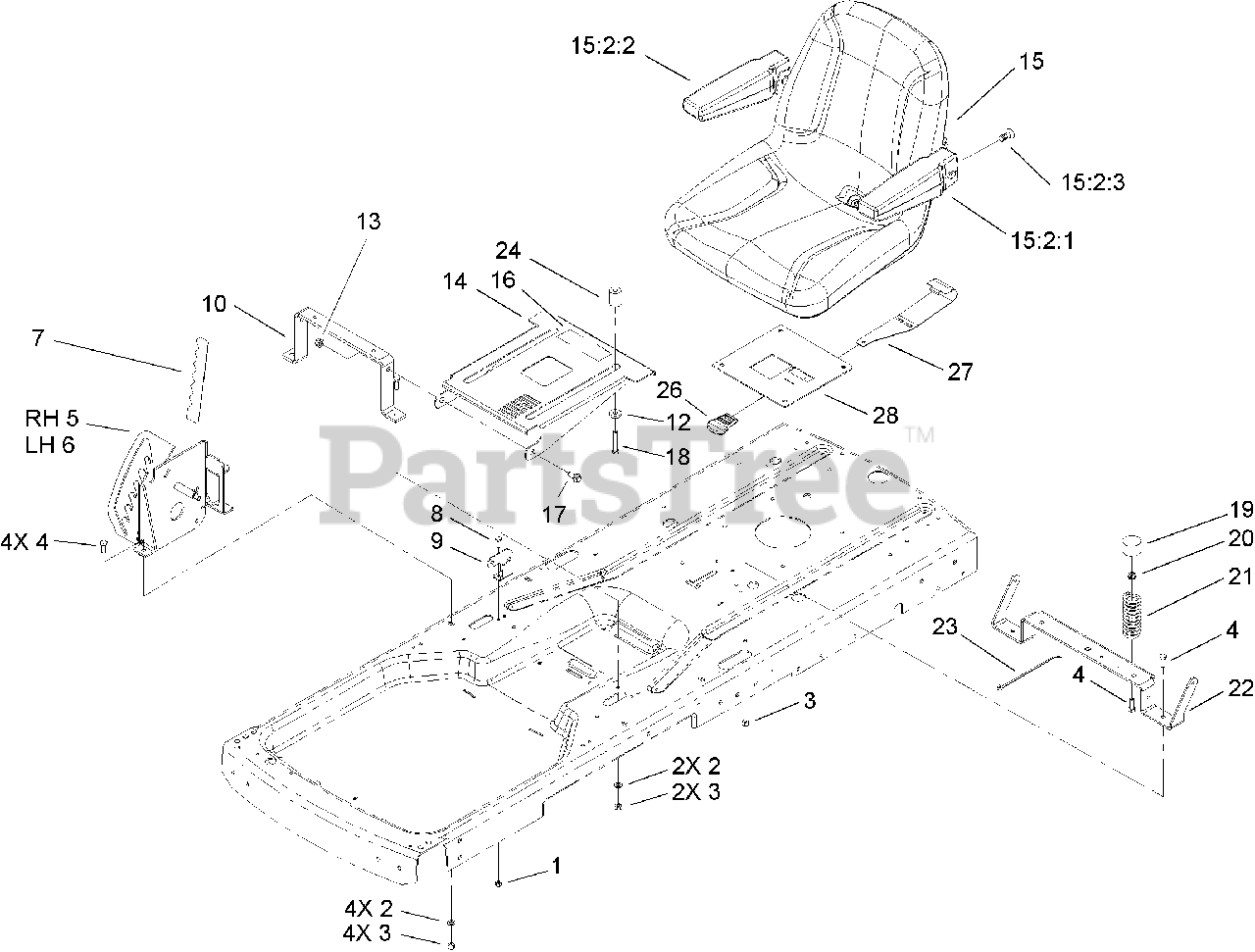

SEAT ASSEMBLY Parts Diagram

  • Title
1

Lawn-Boy 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

2

Lawn-Boy 3256-23

WASHER-FLAT

$2.49

$

In Stock, Qty 20+

0

3

Lawn-Boy 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 14

0

4

Lawn-Boy 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

5

Lawn-Boy 106-2158-03

RH PLATE ASM

$

$

Not available

6

Lawn-Boy 106-2159-03

LH PLATE ASM

$81.99

$

Usually ships in 3-6 days

0

7

Lawn-Boy 108-2392

DECAL-HOC

$

$

Not available

8

Lawn-Boy 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

9

Lawn-Boy 106-2180

BRACKET-BELLCRANK

$6.99

$

Usually ships in 3-6 days

0

10

Lawn-Boy 105-6954-03

BRACE-SEAT, FRONT

$

$

Not available

12

$24.99

$

Usually ships in 3-6 days

0

13

$0.99

$

In Stock, Qty 20+

0

14

Lawn-Boy 108-2303-03

BRACKET-SEAT

$86.99

$

Usually ships in 3-6 days

0

15

Lawn-Boy 106-6446

SEAT ASM
(Superseded to 110-6773)

$

$

Not available

15:2:1

Lawn-Boy 108-6177

LH ARMREST ASM
(Superseded to 108-6163)

$

$

Not available

15:2:2

Lawn-Boy 108-6178

RH ARMREST ASM
(Superseded to 108-6163)

$

$

Not available

15:2:3

Lawn-Boy 108-6179

SCREW-HSBH

$12.99

$

Usually ships in 3-6 days

0

16

Lawn-Boy 106-8716

DECAL-SERVICES

$

$

Not available

17

Lawn-Boy 94-7582

BOLT-SHOULDER

$3.49

$

In Stock, only 2 left!

0

18

Lawn-Boy 322-11

SCREW-HH
(Superseded to 120-9738)

$1.49

$

In Stock, Qty 20+

0

19

Lawn-Boy 701178

CAP-PROTECTOR

$2.99

$

In Stock, only 3 left!

0

20

$3.49

$

In Stock, Qty 12

0

21

Lawn-Boy 92-7054

SPRING-COMPRESSION

$20.99

$

In Stock, Qty 10

0

22

Lawn-Boy 108-2358-03

BRACE-SEAT, REAR

$111.99

$

Usually ships in 3-6 days

0

23

Lawn-Boy 614249

STRAP-TIE

$1.49

$

In Stock, Qty 6

0

24

$13.99

$

Usually ships in 3-6 days

0

26

Lawn-Boy 107-1904

KNOB-LEVER, HOC

$

$

Not available

27

Lawn-Boy 108-2302

LATCH-SEAT

$

$

Not available

28

Lawn-Boy 108-7175-03

MOUNT-LATCH, SEAT

$

$

Not available
