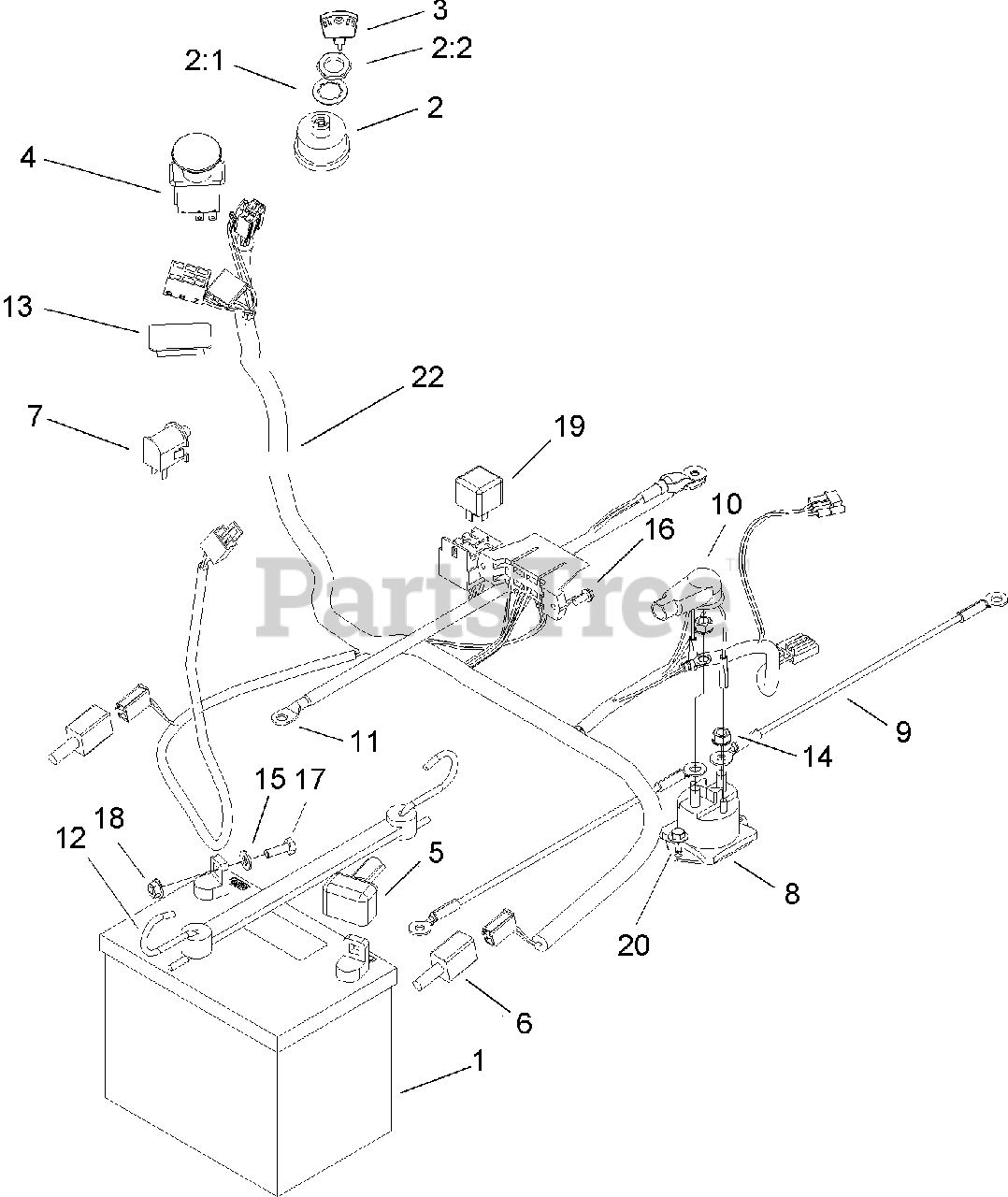

81235 (Z 310) - Lawn-Boy Precision Zero-Turn Mower (SN: 250000001 - 250999999) (2005) ELECTRICAL ASSEMBLY Parts Diagram

Precision Zero-Turn Mower

ELECTRICAL ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 104-2491

BATTERY
(Superseded to 104-8162)

$

$

Not available

2

Lawn-Boy 104-2541

SWITCH ASM

$39.99

$

In Stock, Qty 7

0

2:1

Lawn-Boy 3254-5

WASHER-TOOTH

$1.49

$

In Stock, only 3 left!

0

2:2

Lawn-Boy 218-461

NUT-HH

$3.99

$

In Stock, Qty 10

0

3

Lawn-Boy 700918

KEY

$6.49

$

In Stock, Qty 10

0

4

Lawn-Boy 95-7489

SWITCH-PTO

$40.99

$

In Stock, only 1 left!

0

5

Lawn-Boy 28-8080

BOOT-TERMINAL

$23.99

$

Usually ships in 3-6 days

0

6

Lawn-Boy 106-2216

SWITCH

$19.99

$

In Stock, only 2 left!

0

7

Lawn-Boy 82-2190

SWITCH-BAIL

$14.99

$

In Stock, Qty 10

0

8

Lawn-Boy 106-8245

SOLENOID

$109.99

$

In Stock, only 1 left!

0

9

Lawn-Boy 56-7670

WIRE ASM

$31.99

$

In Stock, only 2 left!

0

10

Lawn-Boy 93-3190

BOOT-INSULATOR, TERMINAL

$7.99

$

Usually ships in 3-6 days

0

11

Lawn-Boy 95-7654

CABLE

$51.99

$

Usually ships in 3-6 days

0

12

Lawn-Boy 104-2466

HOLDDOWN-BATTERY

$23.99

$

In Stock, Qty 6

0

13

Lawn-Boy 99-7420

PLUG-HOLE

$8.49

$

Usually ships in 3-6 days

0

14

Lawn-Boy 32149-2

NUT-KEPS

$2.99

$

In Stock, Qty 20+

0

15

Lawn-Boy 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

16

Lawn-Boy 32144-1

SCREW-TAPTITE

$3.49

$

In Stock, Qty 20+

0

17

Lawn-Boy 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

18

Lawn-Boy 32128-33

NUT-HF

$0.99

$

In Stock, Qty 6

0

19

Lawn-Boy 98-7249

RELAY

$22.99

$

In Stock, only 3 left!

0

20

Lawn-Boy 46-8560

SCREW-HHF

$1.99

$

In Stock, only 4 left!

0

22

Lawn-Boy 108-8587

HARNESS-WIRING

$

$

Not available
