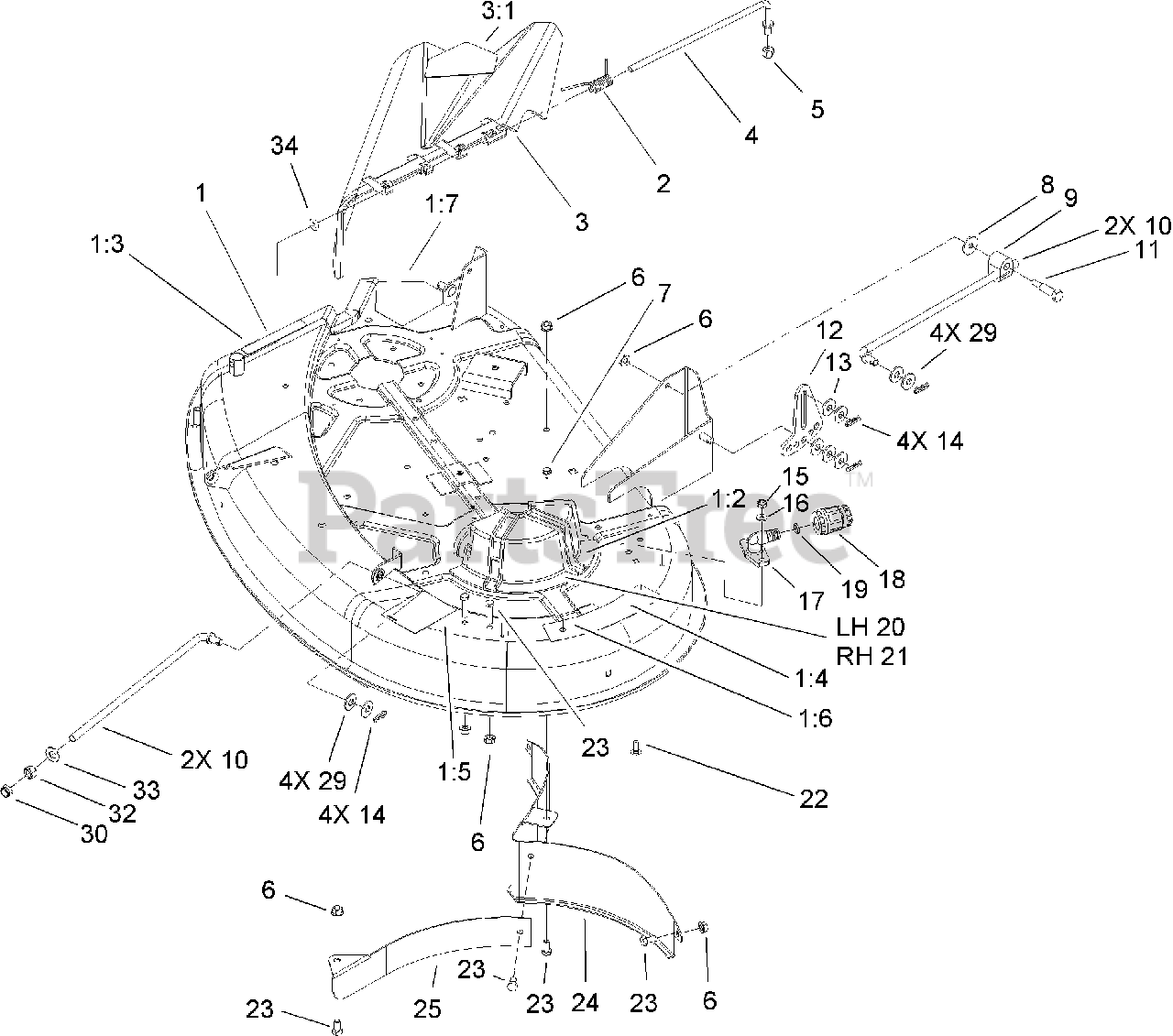

81235 (Z 310) - Lawn-Boy Precision Zero-Turn Mower (SN: 250000001 - 250999999) (2005) DECK ASSEMBLY Parts Diagram

Precision Zero-Turn Mower

DECK ASSEMBLY Parts Diagram

  • Title
1

$

$

Not available

1:2

Lawn-Boy 68-3660

DECAL-DANGER, SHIELD

$12.99

$

In Stock, only 1 left!

0

1:3

Lawn-Boy 68-3650

DECAL-DANGER, DEFLECTOR

$16.99

$

Usually ships in 3-6 days

0

1:4

Lawn-Boy 79-3140

DECAL-DANGER

$19.99

$

Usually ships in 3-6 days

0

1:5

Lawn-Boy 105-7015

DECAL-ROUTING, BELT

$5.49

$

In Stock, Qty 15

0

1:6

Lawn-Boy 3290-282

RIVET-POP

$0.99

$

In Stock, Qty 8

0

1:7

Lawn-Boy 93-1122

DECAL-DANGER

$9.99

$

In Stock, Qty 12

0

2

$26.99

$

In Stock, only 1 left!

0

3

Lawn-Boy 93-0317

DEFLECTOR ASM

$84.99

$

Usually ships in 3-6 days

0

3:1

Lawn-Boy 93-1122

DECAL-DANGER

$9.99

$

In Stock, Qty 12

0

4

Lawn-Boy 95-1661

ROD-PIVOT

$20.99

$

In Stock, only 1 left!

0

5

Lawn-Boy 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

$3.49

$

In Stock, Qty 12

0

$2.99

$

In Stock, Qty 20+

0

8

Lawn-Boy 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 6

0

9

Lawn-Boy 88-4230

TRUNNION-HOC

$15.99

$

In Stock, only 1 left!

0

10

Lawn-Boy 105-3437

ROD-HANGER

$32.99

$

In Stock, only 4 left!

0

11

Lawn-Boy 7-0030

BOLT-SHOULDER

$9.49

$

Usually ships in 3-6 days

0

12

Lawn-Boy 88-5570-03

LINK-ADJUSTING, HOC

$15.99

$

Usually ships in 3-6 days

0

13

Lawn-Boy 80-6990

WASHER-HARDENED

$5.49

$

In Stock, Qty 11

0

14

Lawn-Boy 9335054

PIN-HAIR

$1.99

$

In Stock, Qty 20+

0

15

Lawn-Boy 3296-16

NUT-LOCK, NI

$1.49

$

In Stock, only 3 left!

0

16

Lawn-Boy 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

17

Lawn-Boy 95-2747

FITTING-WASHOUT
(Superseded to 133-9289)

$6.49

$

In Stock, Qty 5

0

18

Lawn-Boy 95-3270

CONNECTOR-HOSE

$23.99

$

In Stock, only 1 left!

0

19

$2.99

$

In Stock, only 4 left!

0

20

Lawn-Boy 88-4030

GUIDE-BELT, LH

$41.99

$

In Stock, only 1 left!

0

21

Lawn-Boy 88-4020

GUIDE-BELT, RH

$41.99

$

In Stock, only 1 left!

0

22

Lawn-Boy 3229-1

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

23

Lawn-Boy 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

0

24

Lawn-Boy 106-7030-03

BAFFLE-REAR

$128.99

$

Usually ships in 3-6 days

0

25

Lawn-Boy 106-7032-03

EXTENSION-BAFFLE

$112.99

$

Usually ships in 3-6 days

0

29

Lawn-Boy 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

30

Lawn-Boy 3296-38

NUT-LOCK, NI

$2.99

$

In Stock, only 4 left!

0

32

Lawn-Boy 3219-4

NUT-HEX

$3.99

$

Usually ships in 3-6 days

0

33

Lawn-Boy 3256-25

WASHER-FLAT

$0.99

$

In Stock, Qty 10

0

34

$1.99

$

In Stock, only 2 left!

0
