81235 (Z 310) - Lawn-Boy Precision Zero-Turn Mower (SN: 250000001 - 250999999) (2005) CARBURETOR OVERHAUL KIT ASSEMBLY BRIGGS AND STRATTON 280H07-0166-E1 Parts Diagram

Precision Zero-Turn Mower

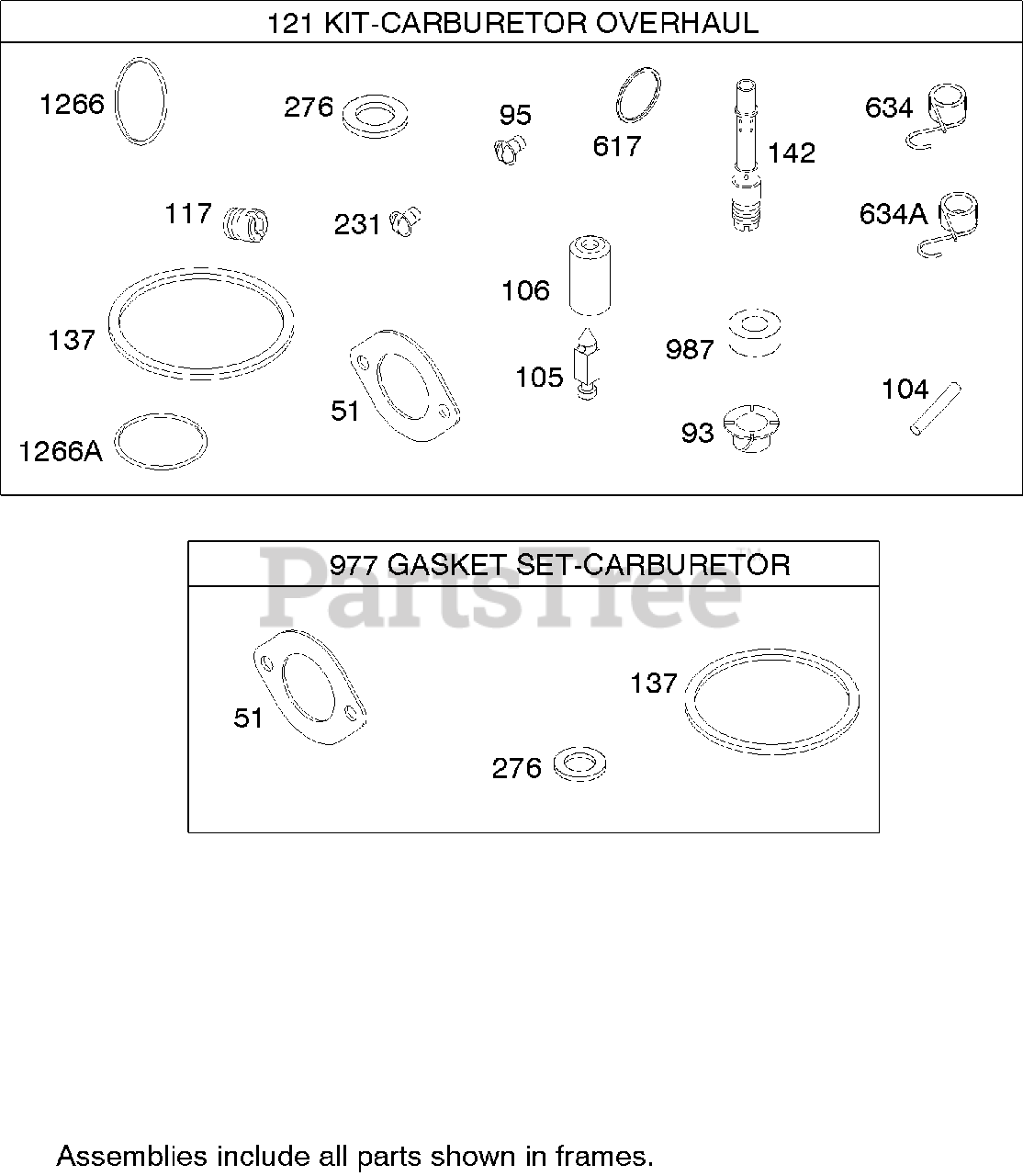

CARBURETOR OVERHAUL KIT ASSEMBLY BRIGGS AND STRATTON 280H07-0166-E1 Parts Diagram

  • Title

51

Lawn-Boy 692137

Gasket-Intake

Note: Included in Carburetor Gasket Set-Ref. 977. Included in Carburetor Overhaul Kit-Ref. 121. Included in Engine Gasket Set-Ref. 358. Included in Valve Gasket Set-Ref. 1095. Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

93

Lawn-Boy 690602

Bushing-Shaft, Throttle

Note: Included in Carburetor Overhaul Kit-Ref. 121. Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

95

Lawn-Boy 691636

Screw

Note: Included in Carburetor Overhaul Kit-Ref. 121. Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

104

Lawn-Boy 690525

Pin-Hinge, Carburetor Float

Note: Included in Carburetor Overhaul Kit-Ref. 121. Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

105

Lawn-Boy 231855

Valve-Needle, Float

Note: Included in Carburetor Overhaul Kit-Ref. 121. Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

106

Lawn-Boy 690577

Seat-Inlet

Note: Included in Carburetor Overhaul Kit-Ref. 121. Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

117

Lawn-Boy 694352

Jet-Main (Std)

Note: Included in Carburetor Overhaul Kit-Ref. 121. Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

121

Lawn-Boy 697154

Carburetor Overhaul Kit

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

137

Lawn-Boy 281165

Gasket-Bowl, Float

Note: Included in Carburetor Gasket Set-Ref. 977. Included in Carburetor Overhaul Kit-Ref. 121. Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

142

Lawn-Boy 697140

Nozzle-Carburetor

Note: Included in Carburetor Overhaul Kit-Ref. 121. Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

231

Lawn-Boy 691636

Screw

Note: Included in Carburetor Overhaul Kit-Ref. 121. Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

276

Lawn-Boy 692255

Washer-Sealing

Note: Included in Carburetor Gasket Set-Ref. 977. Included in Carburetor Overhaul Kit-Ref. 121. Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

617

Lawn-Boy 692138

Seal-O Ring

Note: Included in Carburetor Overhaul Kit-Ref. 121. Included in Engine Gasket Set-Ref. 358. Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

634

Lawn-Boy 690801

Spring / Seal ASM

Note: Included in Carburetor Overhaul Kit-Ref. 121. Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

634A

Lawn-Boy 690802

Spring and Seal Asm

Note: Included in Carburetor Overhaul Kit-Ref. 121. Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

977

Lawn-Boy 690192

Carburetor Gasket Set

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

987

Lawn-Boy 691326

Seal-Shaft, Throttle

Note: Included in Carburetor Overhaul Kit-Ref. 121. Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

1266

Lawn-Boy 691917

Seal-O Ring

Note: Included in Carburetor Overhaul Kit-Ref. 121. Included in Engine Gasket Set-Ref. 358. Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

1266A

Lawn-Boy 697123

Seal-O Ring

Note: Included in Carburetor Overhaul Kit-Ref. 121. Included in Engine Gasket Set-Ref. 358. Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable
