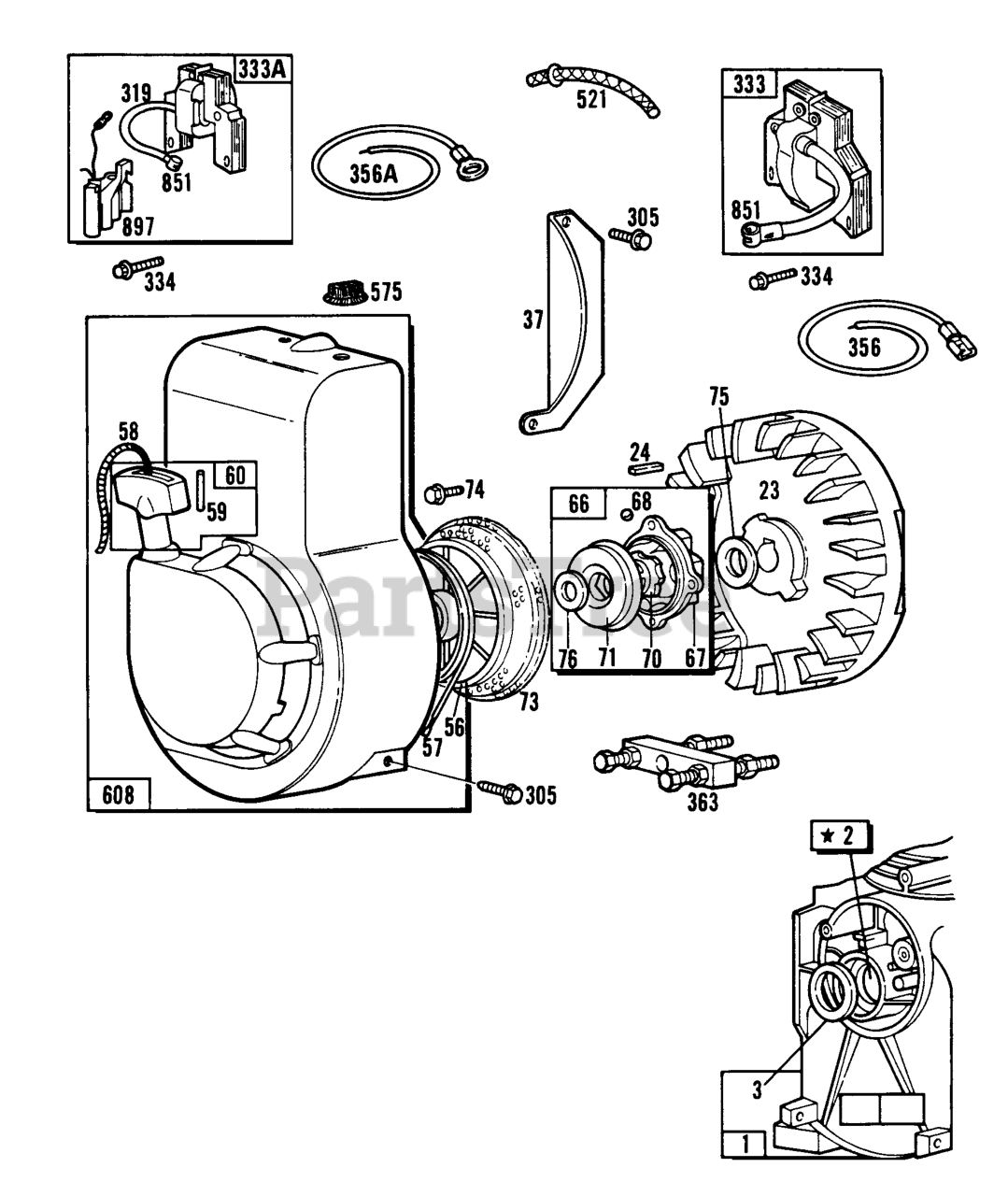

81231-0245-XX - Briggs & Stratton Horizontal Engine Blower Hsg,Rewind,Electrical Parts Diagram

Horizontal Engine

Blower Hsg,Rewind,Electrical Parts Diagram

  • Title

1

Briggs & Stratton 395567

Cylinder Assembly

$310.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 231271

Bushing-Cylinder
(Superseded to 796961)

Note: Requires special tools for installation.

$21.99

$

In Stock, only 1 left!

0

3

Briggs & Stratton 299819

Seal, Oil (Plain Bearing Covers)
(Superseded to 299819S)

$5.49

$

In Stock, Qty 17

0

23

Briggs & Stratton 296884

Flywheel-Magneto

$

$

Not available

24

Briggs & Stratton 222698

Key, Flywheel
(Superseded to 222698S)

$2.99

$

In Stock, Qty 20+

0

37

Briggs & Stratton 220971

Guard-Flywheel

$11.99

$

In Stock, only 1 left!

0

56

Briggs & Stratton 280117

Pulley-Starter
(Superseded to 280439S)

$12.99

$

In Stock, Qty 12

0

57

Briggs & Stratton 294303

Spring-Rewind Starter
(Superseded to 490179)

$

$

Not available

58

Briggs & Stratton 66694

Rope-Starter (47-1/8" Long)
(Superseded to 66734)

$6.49

$

In Stock, Qty 12

0

59

Briggs & Stratton 230228

Pin-Starter Rope
(Superseded to 230228S)

$3.99

$

In Stock, only 4 left!

0

60

Briggs & Stratton 393152

Insert-Starter Handle

$4.99

$

Usually ships in 2-12 days

0

66

Briggs & Stratton 394558

Clutch Assy
(Superseded to 399671)

Note: (For engines w/Ring Gear on Flywheel equipped for Electric Start)

$34.99

$

In Stock, Qty 20+

0

67

Briggs & Stratton 394897

Housing-Starter Clutch

$36.99

$

In Stock, only 1 left!

0

68

Briggs & Stratton 63770

Ball-Clutch
(Superseded to 691604)

$

$

Not available

70

Briggs & Stratton 298799

Ratchet Assy
(Superseded to 691945)

Note: (For engine W/Ring Gear on FW equipped for Elec Start)

$17.99

$

In Stock, only 1 left!

0

71

Briggs & Stratton 221653

Washer, Steel (Non-Coated)
(Superseded to 691359)

$9.99

$

In Stock, Qty 13

0

73

Briggs & Stratton 221661

Screw-Rewind Starter
(Superseded to 691725)

$

$

Not available

74

Briggs & Stratton 93490

Screw-Hex
(Superseded to 691660)

$3.99

$

In Stock, Qty 8

0

75

Briggs & Stratton 220865

Washer, Belleville (Used With Heavy Flywheel)
(Superseded to 690582)

$4.49

$

In Stock, only 4 left!

0

76

Briggs & Stratton 68238

Seal-Ratchet
(Superseded to 691359)

$9.99

$

In Stock, Qty 13

0

305

Briggs & Stratton 93158

Screw, Sem Hex Head (1/4-20 X 5/8")
(Superseded to 692198)

$5.99

$

In Stock, Qty 12

0

319

Briggs & Stratton 395488

Armature-Magneto (Less Trigger Coil)
(Superseded to 591420)

$53.99

$

In Stock, only 1 left!

0

333A

Briggs & Stratton 395489

Ignition Grp (Magnetron Ignition)
(Superseded to 591420)

$53.99

$

In Stock, only 1 left!

0

333

Briggs & Stratton 397316

Ignition Grp
(Superseded to 591420)

$53.99

$

In Stock, only 1 left!

0

334

Briggs & Stratton 93381

Screw, Machine Hex
(Superseded to 691061)

$3.49

$

In Stock, Qty 20+

0

356A

Briggs & Stratton 298693

Wire, Ground Assy (30" long-Cut To Suit)
(Superseded to 398808)

Note: Use with Armature Ref. 333A Only.

$11.99

$

In Stock, only 1 left!

0

356

Briggs & Stratton 398808

WIRE, Stop (30" Cut To Required Length)

$11.99

$

In Stock, only 1 left!

0

363

Briggs & Stratton 19069

Puller-Flywheel (Optional Accessory)

$23.99

$

In Stock, only 1 left!

0

521

Briggs & Stratton 297973

Shielding-Ignition Cable

$17.99

$

Usually ships in 2-12 days

0

575

Briggs & Stratton 396691

Switch, Rotary Stop (Mech. Gov.)
(Superseded to 692309)

$20.99

$

Usually ships in 2-12 days

0

608

Briggs & Stratton 294259

Blower Housing/Star (10 O'clock)

$

$

Not available

851

Briggs & Stratton 221798

Terminal-Spark Plug
(Superseded to 493880S)

$3.49

$

In Stock, Qty 20+

0

897

Briggs & Stratton 394970

Magnetron Ign Kit

$

$

Not available
