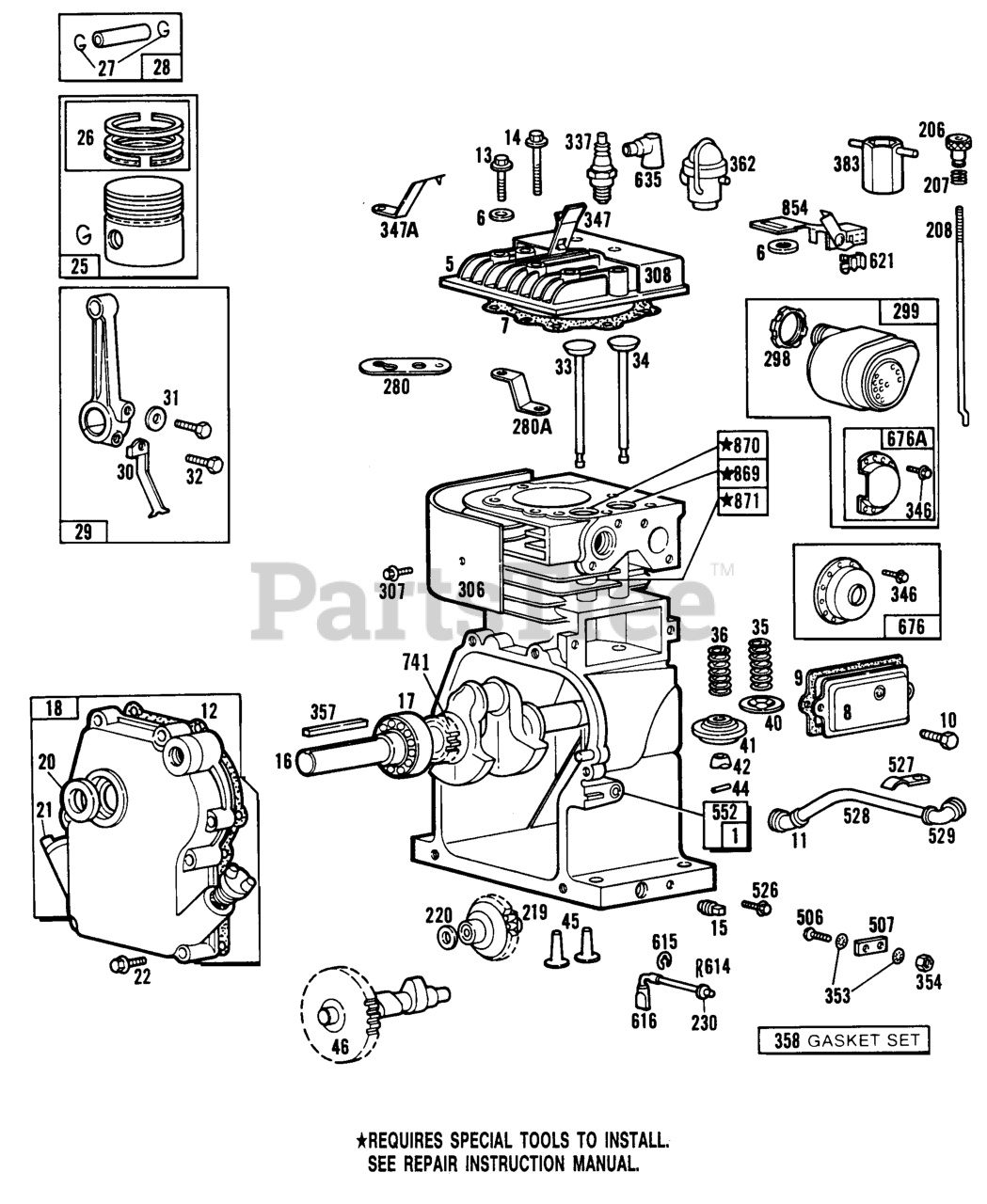

81231-0245-98 - Briggs & Stratton Horizontal Engine Cylinder, Piston, Mufflers Parts Diagram

Horizontal Engine

Cylinder, Piston, Mufflers Parts Diagram

  • Title

1

Briggs & Stratton 395567

Cylinder Assembly

$310.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 210812

Head-Cylinder
(Superseded to 213953)

$

$

Not available

6

Briggs & Stratton 22963

Washer, Flat
(Superseded to 691261)

$3.99

$

In Stock, only 3 left!

0

7

Briggs & Stratton 27670

Gasket-Cylinder Head
(Superseded to 272167)

Note: Included in Gasket Set-Part No. 397144

$7.99

$

In Stock, only 1 left!

0

8

Briggs & Stratton 294178

Cover-Breather
(Superseded to 791779)

$15.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 27549

Gasket, Valve Cover
(Superseded to 27549S)

Note: Included in Gasket Set-Part No. 397144

$3.99

$

In Stock, Qty 10

0

10

Briggs & Stratton 93394

Screw
(Superseded to 691666)

$3.99

$

In Stock, Qty 5

0

11

Briggs & Stratton 66578

Tube-Breather
(Superseded to 692187)

$4.49

$

In Stock, Qty 16

0

12

Briggs & Stratton 270833

Gasket, Crankcase (.015")
(Superseded to 692218)

$

$

Not available

12

Briggs & Stratton 270895

Gasket-Crkcse (.005")

Note: Included in Gasket Set-Part No. 397144

$9.99

$

In Stock, only 1 left!

0

12

Briggs & Stratton 270896

Gasket-Crkcse (.009")

Note: Included in Gasket Set-Part No. 397144

$5.99

$

In Stock, Qty 8

0

13

Briggs & Stratton 93111

Screw, Machine Hex (15/16" Long)
(Superseded to 592840)

$43.99

$

In Stock, only 1 left!

0

13

Briggs & Stratton 93583

Stud, Cylinder Head
(Superseded to 691690)

$

$

Not available

14

Briggs & Stratton 93113

Screw, Machine Hex (2-5/16" Long)
(Superseded to 690912)

$3.99

$

In Stock, Qty 19

0

14

Briggs & Stratton 93583

Stud, Cylinder Head
(Superseded to 691690)

$

$

Not available

15

Briggs & Stratton 91249

Plug, Pipe (Standar (1/4" Square)
(Superseded to 691686)

$5.49

$

In Stock, only 1 left!

0

16

Briggs & Stratton 260932

Crankshaft
(Superseded to 493633)

Note: To Replace Crankshaft Gear Pin, Order Part No. 230978 for Loose Gear Applications

$148.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 99158

Ball Bearing (P.t.o. Side)

$20.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 395259

Cover-Crankcase
(Superseded to 497504)

$167.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 393812

Seal-Oil

$5.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 66768

Plug, Oil Fill
(Superseded to 281658S)

$4.49

$

In Stock, Qty 20+

0

22

Briggs & Stratton 93032

Screw-Tank Mounting
(Superseded to 692551)

$3.99

$

In Stock, only 2 left!

0

25

Briggs & Stratton 295455

Piston Assy-Std

$

$

Not available

25

Briggs & Stratton 295456

Piston Assy-010

$58.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 295457

Piston Assy-020

$145.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 295458

Piston Assy-030

$142.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 295657

Ring, Piston Kit (Std.)
(Superseded to 294232)

$

$

Not available

26

Briggs & Stratton 295658

Ring, Piston Kit (.010" O.S.)

$

$

Not available

26

Briggs & Stratton 295659

Ring, Piston Kit (.020" O.S.)
(Superseded to 294225)

$64.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 295660

Ring, Piston Kit (.030" O.S.)
(Superseded to 294226)

$57.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 297201

Ring Set-Std Chr

$24.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 26026

Lock-Piston Pin
(Superseded to 691588)

$4.99

$

In Stock, only 2 left!

0

28

Briggs & Stratton 298908

Pin-Piston 005 (.005" O.S.)

$4.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 298909

Pin-Piston

$8.99

$

In Stock, only 2 left!

0

29

Briggs & Stratton 294367

Rod-Connecting (Standard)
(Superseded to 699655)

Note: For Connecting Rod with .020" Undersize Crankpin Bore-Order No. 296079

$39.99

$

In Stock, only 3 left!

0

30

Briggs & Stratton 220670

Dipper-Connecting Rod
(Superseded to 691719)

$7.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 222282

Washer

$3.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 92296

Screw-Connecting Rod
(Superseded to 691664)

$4.49

$

In Stock, only 2 left!

0

33

Briggs & Stratton 260443

Valve, Exhaust (Stellite With Hole In Stem)
(Superseded to 296676)

$23.99

$

In Stock, only 1 left!

0

34

Briggs & Stratton 296677

Valve-Intake (Grooved stem-includes Retainer)

Note: Includes Retainer No. 93312)

$24.99

$

In Stock, only 3 left!

0

35

Briggs & Stratton 260552

Spring, Valve
(Superseded to 690520)

$5.49

$

In Stock, only 1 left!

0

36

Briggs & Stratton 26826

Spring-Valve (Exhaust)

$7.99

$

In Stock, only 4 left!

0

40

Briggs & Stratton 93312

Retainer, Spring (Used With Valves With Groove In Stem)
(Superseded to 692194)

$5.99

$

In Stock, Qty 9

0

41

Briggs & Stratton 292259

Retainer-Valve (Exhaust)

$9.99

$

In Stock, only 1 left!

0

42

Briggs & Stratton 230127

Retainer-Valve

$9.49

$

In Stock, only 2 left!

0

44

Briggs & Stratton 230126

Pin-Valve Spring Set

$5.99

$

Usually ships in 2-12 days

0

45

Briggs & Stratton 230173

Tappet-Valve
(Superseded to 691762)

$9.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 394800

Gear, Cam Assy (Metal)
(Superseded to 793149)

$74.99

$

Usually ships in 2-12 days

0

206

Briggs & Stratton 231266

Nut, Hex (#6-32 Thread)
(Superseded to 691771)

$37.99

$

Usually ships in 2-12 days

0

207

Briggs & Stratton 26855

Spring-Governor Control Rod
(Superseded to 692522)

$

$

Not available

208

Briggs & Stratton 261990

Rod-Control

$12.99

$

Usually ships in 2-12 days

0

219

Briggs & Stratton 391737

Gear-Governor

$38.99

$

In Stock, only 2 left!

0

220

Briggs & Stratton 221551

Washer, Steel
(Superseded to 691724)

$5.49

$

In Stock, only 2 left!

0

230

Briggs & Stratton 222450

Washer, Steel Zinc
(Superseded to 691691)

$3.99

$

In Stock, Qty 5

0

280A

Briggs & Stratton 221384

Strap-Control Rod

$

$

Not available

280

Briggs & Stratton 223236

Strap-Control Rod

$6.49

$

Usually ships in 2-12 days

0

298

Briggs & Stratton 220859

Locknut, Muffler/El
(Superseded to 691720)

$5.49

$

Usually ships in 2-12 days

0

299

Briggs & Stratton 392811

Muffler Grp (Lo-Tone)
(Superseded to 493288)

$36.99

$

In Stock, only 1 left!

0

306

Briggs & Stratton 220478

Shield-Cylinder

$16.99

$

Usually ships in 2-12 days

0

307

Briggs & Stratton 93490

Screw-Hex
(Superseded to 691660)

$3.99

$

In Stock, Qty 8

0

308

Briggs & Stratton 220581

Cover-Cylinder Head
(Superseded to 223390)

$7.49

$

Usually ships in 2-12 days

0

337

Briggs & Stratton 293918

Spark Plug,resistor
(Superseded to 796112S)

$4.49

$

In Stock, Qty 20+

0

337

Briggs & Stratton 29693

Spark Plug
(Superseded to 796112S)

$4.49

$

In Stock, Qty 20+

0

337

Briggs & Stratton 298809

Spark Plug
(Superseded to 796112S)

$4.49

$

In Stock, Qty 20+

0

346

Briggs & Stratton 93705

Screw, Tapping Hex (8-32 X 3/8)
(Superseded to 690661)

$3.49

$

In Stock, Qty 8

0

347A

Briggs & Stratton 298926

Sparkplug Stop Sw

$34.99

$

Usually ships in 2-12 days

0

347

Briggs & Stratton 220884

Switch-Stop

$11.99

$

In Stock, Qty 6

0

353

Briggs & Stratton 92791

Lockwasher, Interna
(Superseded to 691077)

$3.49

$

In Stock, only 2 left!

0

354

Briggs & Stratton 90576

Nut, Hex (8-32)
(Superseded to 691612)

$3.49

$

In Stock, only 1 left!

0

357

Briggs & Stratton 91539

Key, Pulley (3/16" Square)
(Superseded to 692191)

$

$

Not available

358

Briggs & Stratton 397144

Gasket Kit (Used With Rotary Choke Carburetors)
(Superseded to 495602)

$

$

Not available

362

Briggs & Stratton 89742

Shield-Sp Plug (With Stop Switch)

$

$

Not available

383

Briggs & Stratton 89838

Wrench-Spark Plugs
(Superseded to 89838S)

$6.49

$

In Stock, only 4 left!

0

506

Briggs & Stratton 90200

Screw-Slotted (8-32 X 1/2")

$3.99

$

Usually ships in 2-12 days

0

507

Briggs & Stratton 66895

Insulator-Terminal

$4.99

$

In Stock, only 2 left!

0

526

Briggs & Stratton 93343

Screw, Tapping Hex
(Superseded to 690297)

$3.49

$

In Stock, Qty 12

0

527

Briggs & Stratton 221514

Tube Clamp (Used With Rotary Choke Carburetors)

$1.49

$

Usually ships in 2-12 days

0

528

Briggs & Stratton 231383

Tube-Breather (Used With Rotary Choke Carburetors)

$26.99

$

Usually ships in 2-12 days

0

529

Briggs & Stratton 67838

Grommet, Cover
(Superseded to 692189)

$4.49

$

In Stock, Qty 8

0

552

Briggs & Stratton 231079

Bushing, Governor S (1/4" I.d.)
(Superseded to 690508)

$9.49

$

Usually ships in 2-12 days

0

614

Briggs & Stratton 93306

Pin, Cotter
(Superseded to 691620)

$4.49

$

In Stock, only 2 left!

0

615

Briggs & Stratton 93307

Retainer-E Ring

$5.99

$

In Stock, only 3 left!

0

616

Briggs & Stratton 231077

Crank, Governor (1/4" Dia.)
(Superseded to 692016)

$

$

Not available

621

Briggs & Stratton 297472

Switch, Stop Assy
(Superseded to 297472S)

$

$

Not available

635

Briggs & Stratton 66538

Elbow-Spark Plug
(Superseded to 66538S)

$3.99

$

In Stock, Qty 5

0

676A

Briggs & Stratton 393760

DEFLECTOR, Muffler

$9.49

$

In Stock, only 1 left!

0

676

Briggs & Stratton 397931

Deflector-Muffler

$14.99

$

Usually ships in 2-12 days

0

741

Briggs & Stratton 261721

Gear-Timing (For Ball Bearing)

$13.99

$

Usually ships in 2-12 days

0

854

Briggs & Stratton 392884

Stop-Switch

$7.49

$

Usually ships in 2-12 days

0

869

Briggs & Stratton 210879

Seat-Valve (Intake)

$6.99

$

Usually ships in 2-12 days

0

870

Briggs & Stratton 211291

Seat-Valve (Exhaust)
(Superseded to 691702)

Note: For Options see Repair Manual.

$8.99

$

Usually ships in 2-12 days

0

871

Briggs & Stratton 262001

Bushing-Guide (Brass)

$13.99

$

Usually ships in 2-12 days

0

871

Briggs & Stratton 63709

Bushing-Guide (Brass)

$14.99

$

Usually ships in 2-12 days

0
