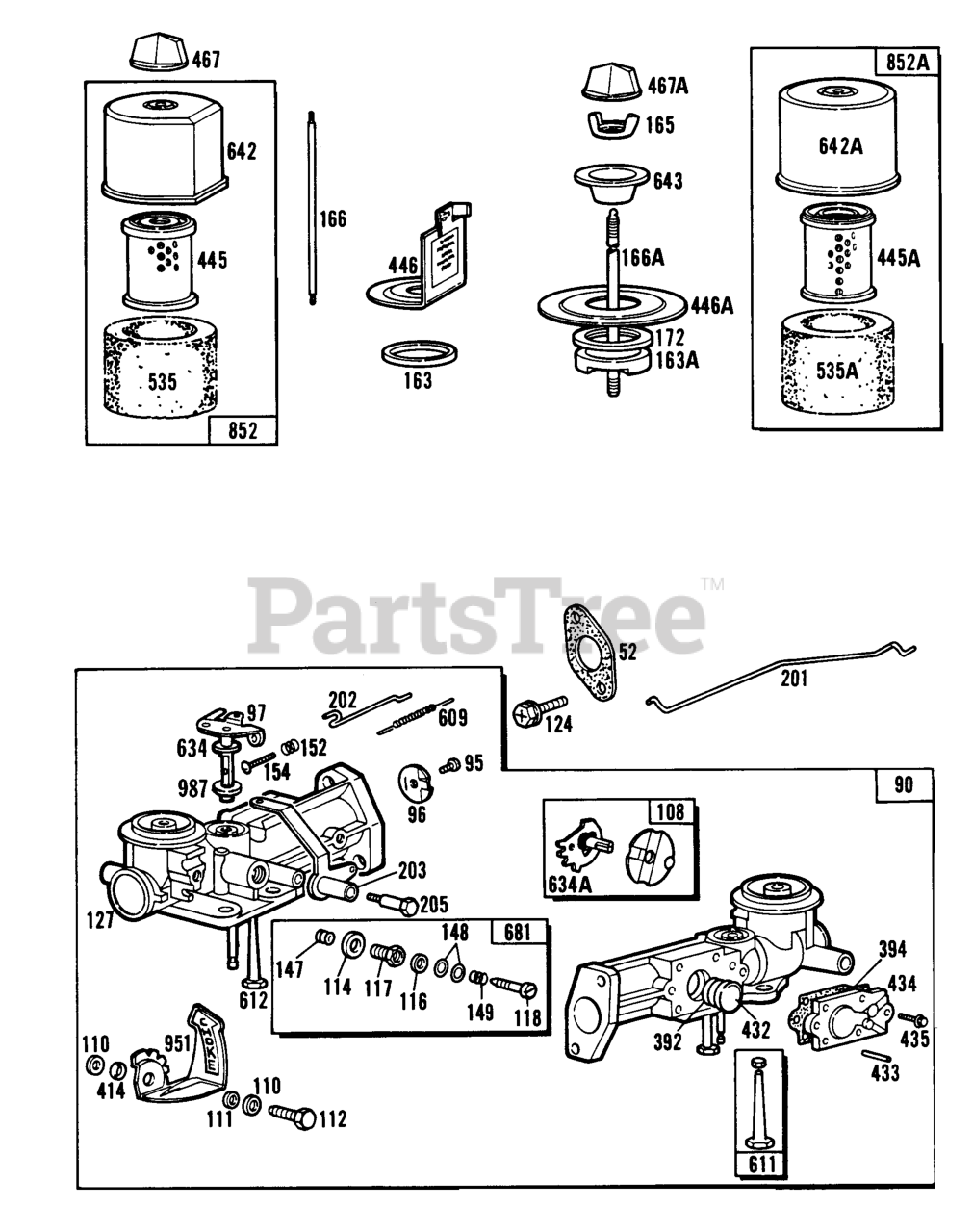

81231-0245-98 - Briggs & Stratton Horizontal Engine Carburetor and Air Cleaners Parts Diagram

Horizontal Engine

Carburetor and Air Cleaners Parts Diagram

  • Title

52

Briggs & Stratton 27355

Gasket, Intake Elbo (2)
(Superseded to 27355S)

Note: Included in Gasket Set-Part No. 397144

$3.99

$

In Stock, Qty 20+

0

90

Briggs & Stratton 398124

Carburetor (Rotary Choke, For 2 Quart Tank)

$121.99

$

Usually ships in 2-12 days

0

95

Briggs & Stratton 93499

Screw, Sem Pan Head (Throttle Valve)
(Superseded to 691437)

$3.99

$

In Stock, only 3 left!

0

96

Briggs & Stratton 211203

Valve-Throttle

$8.49

$

Usually ships in 2-12 days

0

97

Briggs & Stratton 297468

Shaft-Throttle (Mech. Gov.)

$4.49

$

Usually ships in 2-12 days

0

108

Briggs & Stratton 397134

Valve-Choke

$13.99

$

In Stock, Qty 5

0

110

Briggs & Stratton 221226

Washer

$3.49

$

Usually ships in 2-12 days

0

111

Briggs & Stratton 94060

Washer-Wave
(Superseded to 691089)

$3.99

$

Usually ships in 2-12 days

0

112

Briggs & Stratton 93686

Screw, Hex Head Tap (10-32 X 5/8")
(Superseded to 691044)

$3.99

$

In Stock, only 4 left!

0

114

Briggs & Stratton 66594

Sealing Washer (Needle Valve)
(Superseded to 691608)

$5.99

$

In Stock, Qty 20+

0

116

Briggs & Stratton 65978

Seal, O-Ring (Needle Valve)
(Superseded to 691606)

$5.99

$

In Stock, only 3 left!

0

117

Briggs & Stratton 230590

Nut, Hex
(Superseded to 690504)

$3.99

$

Usually ships in 2-12 days

0

118

Briggs & Stratton 23433

Valve-Needle
(Superseded to 690266)

$9.49

$

In Stock, only 3 left!

0

124

Briggs & Stratton 93357

Screw-Sem, Phillips Hex. Hd.
(Superseded to 690953)

$5.99

$

Usually ships in 2-12 days

0

127

Briggs & Stratton 22831

Plug-Welch
(Superseded to 691585)

$6.99

$

In Stock, Qty 5

0

147

Briggs & Stratton 230591

Seat-Needle Valve
(Superseded to 692134)

$9.49

$

In Stock, only 4 left!

0

148

Briggs & Stratton 22235

Washer, Brass
(Superseded to 690257)

$4.99

$

In Stock, only 1 left!

0

149

Briggs & Stratton 26336

Spring-Needle Valve
(Superseded to 691592)

$3.99

$

In Stock, only 4 left!

0

152

Briggs & Stratton 260575

Spring-Throttle Adjustment
(Superseded to 691783)

$7.99

$

In Stock, Qty 10

0

154

Briggs & Stratton 93527

Screw, Tapping Roun (5-40 X 5/8"})
(Superseded to 691624)

$3.99

$

Usually ships in 2-12 days

0

163A

Briggs & Stratton 27660

Gasket-Air Cleaner Mtg.

$

$

Not available

163

Briggs & Stratton 271139

Gasket, Air Cleaner (Above Spacer)
(Superseded to 271139S)

$3.99

$

In Stock, Qty 20+

0

165

Briggs & Stratton 93856

Nut-Wing (#10-32)

$3.99

$

In Stock, Qty 9

0

166A

Briggs & Stratton 231176

Stud-Air Cleaner (3/16" Stud)

$33.99

$

Usually ships in 2-12 days

0

166

Briggs & Stratton 231332

Stud-Air Cleaner (Used With Rotary Choke Carburetors)

$13.99

$

Usually ships in 2-12 days

0

172

Briggs & Stratton 271077

Spacer-Air Cleaner
(Superseded to 270055)

$

$

Not available

201

Briggs & Stratton 261590

Link-Mech Gov (Mech. Gov.)

$3.99

$

Usually ships in 2-12 days

0

202

Briggs & Stratton 260678

Link, Throttle (Mech. Gov.)
(Superseded to 691786)

$

$

Not available

203

Briggs & Stratton 394670

Crank-Bell (Mech. Gov.)

$8.99

$

In Stock, only 1 left!

0

205

Briggs & Stratton 93838

Screw, Shoulder Hex (#6-32 Thread)
(Superseded to 691630)

$10.99

$

In Stock, only 2 left!

0

392

Briggs & Stratton 260455

Spring-Pump Diaphragm
(Superseded to 692206)

$4.49

$

In Stock, Qty 7

0

394

Briggs & Stratton 270026

Diaphragm-Pump

$3.99

$

In Stock, Qty 20+

0

414

Briggs & Stratton 231325

Spacer-Choke Lever

$3.49

$

Usually ships in 2-12 days

0

432

Briggs & Stratton 221377

Cap-Spring
(Superseded to 690766)

$4.99

$

In Stock, only 3 left!

0

433

Briggs & Stratton 93265

Pin-Roll
(Superseded to 690296)

$6.49

$

Usually ships in 2-12 days

0

434

Briggs & Stratton 210959

Cover-Diaphragm
(Superseded to 691713)

$10.99

$

In Stock, only 1 left!

0

435

Briggs & Stratton 93141

Screw, Sem Filliste (Diaphragm Cover)
(Superseded to 691619)

$6.49

$

Usually ships in 2-12 days

0

445A

Briggs & Stratton 392308

Filter-Air
(Superseded to 392308S)

$16.99

$

Usually ships in 2-12 days

0

445

Briggs & Stratton 396424

Filter-Pre Cleaner
(Superseded to 396424S)

$13.99

$

In Stock, only 3 left!

0

446A

Briggs & Stratton 222844

Base-Air Cleaner
(Superseded to 691735)

$17.99

$

Usually ships in 2-12 days

0

446

Briggs & Stratton 395642

Base-Air Cleaner
(Superseded to 223198)

$27.99

$

Usually ships in 2-12 days

0

467A

Briggs & Stratton 212293

Knob-Choke Rod

$6.99

$

Usually ships in 2-12 days

0

467

Briggs & Stratton 212706

Knob-Choke Rod
(Superseded to 691668)

$5.49

$

Usually ships in 2-12 days

0

535A

Briggs & Stratton 270979

Element-Air Cleaner
(Superseded to 271466)

$4.49

$

In Stock, Qty 20+

0

535

Briggs & Stratton 271466

Filter-Air

$4.49

$

In Stock, Qty 20+

0

609

Briggs & Stratton 260564

Spring-Throttle Link

$

$

Not available

611

Briggs & Stratton 391813

Tube-Pick Up (For 2 And 3 Quart Tanks)

$

$

Not available

612

Briggs & Stratton 296811

Pipe/Sleeve Assy
(Superseded to 497413S)

$7.49

$

In Stock, Qty 5

0

634A

Briggs & Stratton 270382

Washer, Felt (Foam)
(Superseded to 691869)

$3.99

$

In Stock, only 3 left!

0

634

Briggs & Stratton 270167

Washer (Felt)

$4.99

$

In Stock, Qty 13

0

634

Briggs & Stratton 271853

Washer, Foam (Foam)
(Superseded to 692279)

$3.99

$

In Stock, only 3 left!

0

642A

Briggs & Stratton 222626

Cover-Air Cleaner

$

$

Not available

642

Briggs & Stratton 223306

Cover-Air Cleaner
(Superseded to 493822)

$

$

Not available

643

Briggs & Stratton 222845

Support-Foam Elemen (1/2" Deep)

$

$

Not available

681

Briggs & Stratton 299060

Valve-High Speed (Threaded)

$21.99

$

In Stock, only 2 left!

0

852A

Briggs & Stratton 392368

Cleaner-Air

$50.99

$

Usually ships in 2-12 days

0

852

Briggs & Stratton 396397

Cleaner-Air
(Superseded to 493822)

$

$

Not available

951

Briggs & Stratton 223286

Lever-Choke
(Superseded to 691180)

$11.99

$

Usually ships in 2-12 days

0

987

Briggs & Stratton 398970

Seal, Throttle Shaf (Lmt 46, 49, 50, 51, 53, 86)
(Superseded to 692279)

Note: Used After Code Date 85081100

$3.99

$

In Stock, only 3 left!

0
