81230 (Z 320 H) - Lawn-Boy Precision Zero-Turn Mower (SN: 260000001 - 260999999) (2006) PISTON ASSEMBLY HONDA GXV390A1 DETR Parts Diagram

Precision Zero-Turn Mower

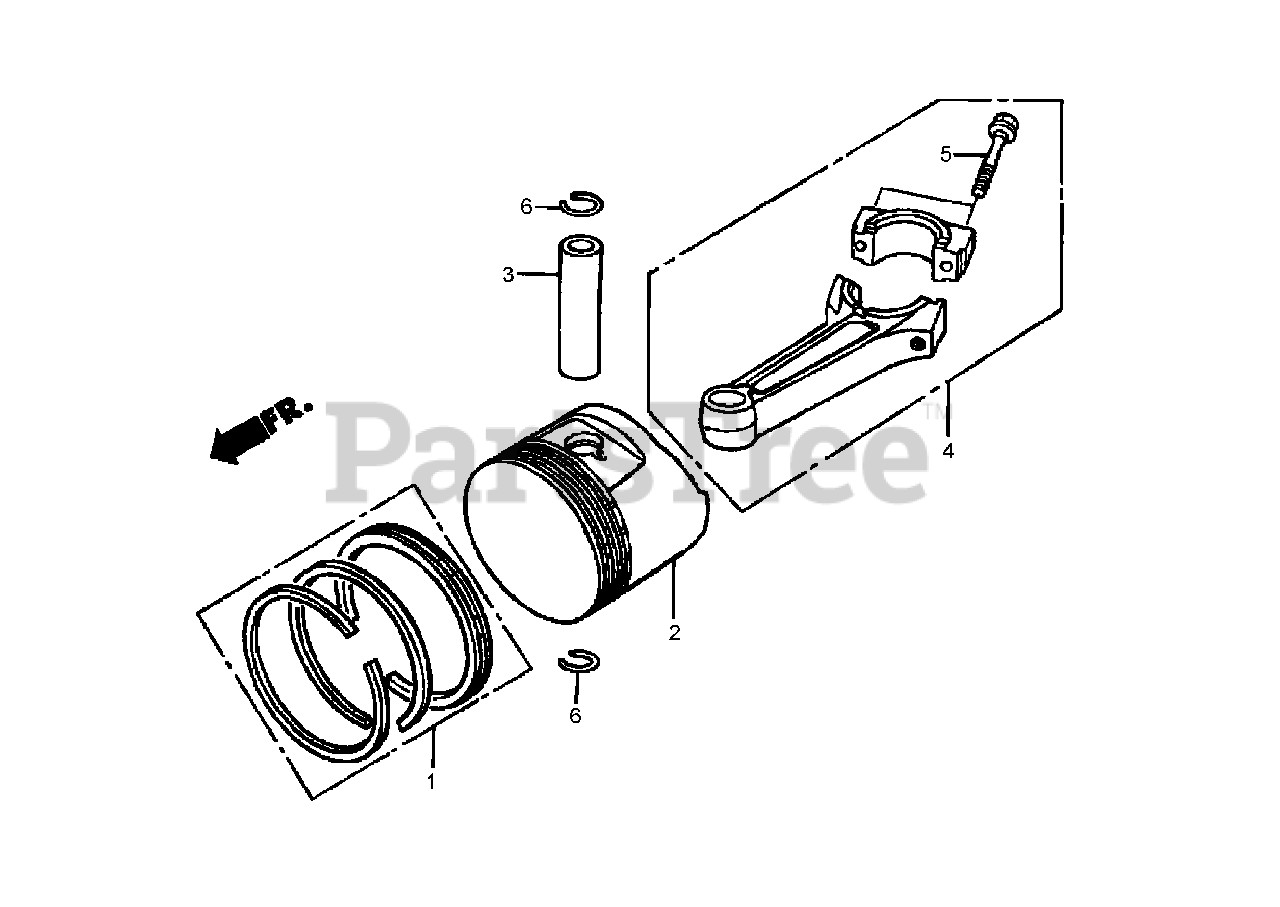

PISTON ASSEMBLY HONDA GXV390A1 DETR Parts Diagram

  • Title

1

Lawn-Boy 13010-Z1C-800

RING SET-PISTON (STD)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

1

Lawn-Boy 13011-Z1C-800

RING SET-PISTON (OS 0.25)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

1

Lawn-Boy 13012-Z1C-800

RING SET-PISTON (OS 0.50)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

1

Lawn-Boy 13013-Z1C-800

RING SET-PISTON (0.75)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

2

Lawn-Boy 13101-ZF6-W00

PISTON (STD)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

2

Lawn-Boy 13102-ZF6-W00

PISTON (OS 0.25)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

2

Lawn-Boy 13103-ZF6-W00

PISTON (OS 0.50)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

2

Lawn-Boy 13104-ZF6-W00

PISTON (0.75)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

3

Lawn-Boy 13111-ZF6-000

PIN-PISTON

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

4

Lawn-Boy 13200-Z1E-000

CONNECTING ROD ASM

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

4

Lawn-Boy 13200-Z1E-305

CONNECTING ROD ASM (0.25 LOWER SIZE)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

5

Lawn-Boy 90001-ZE8-000

BOLT-ROD, CONNECTING

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

6

Lawn-Boy 90601-ZE3-000

CLIP-PIN, PISTON (20MM)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable
