81230 (Z 320 H) - Lawn-Boy Precision Zero-Turn Mower (SN: 260000001 - 260999999) (2006) MUFFLER ASSEMBLY HONDA GXV390A1 DETR Parts Diagram

Precision Zero-Turn Mower

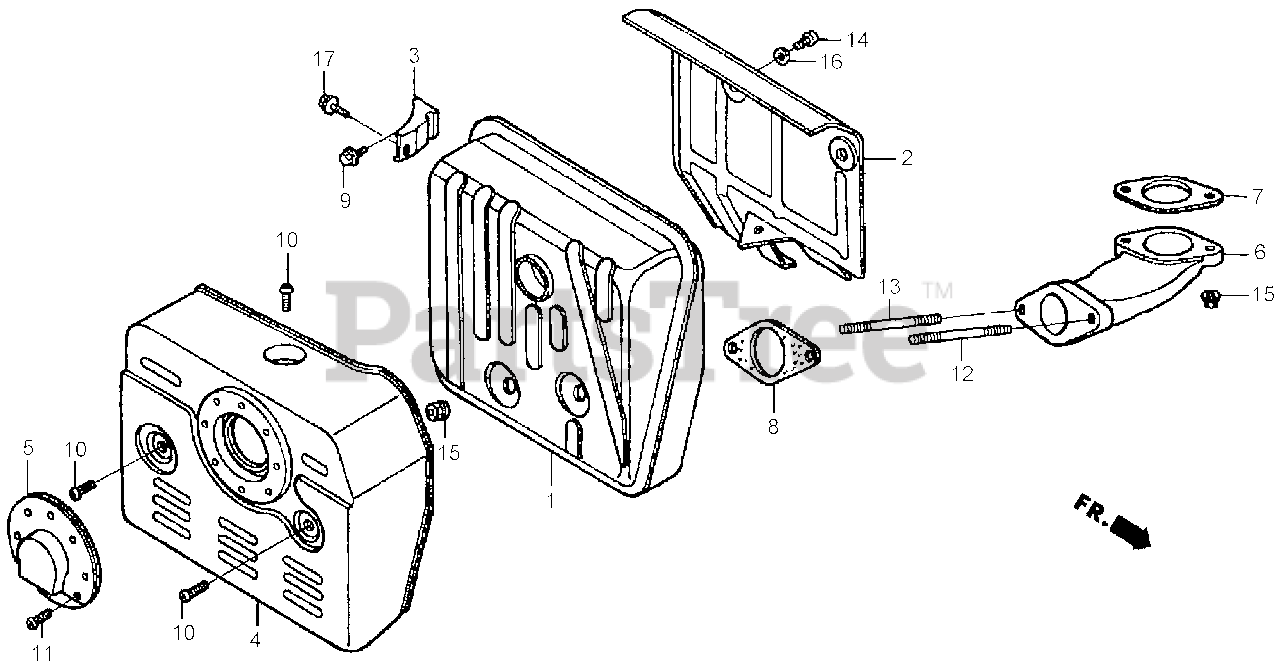

MUFFLER ASSEMBLY HONDA GXV390A1 DETR Parts Diagram

  • Title
1

Lawn-Boy 18310-Z1E-000

MUFFLER

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

2

Lawn-Boy 18316-ZF5-V00

SEPARATOR-MUFFLER

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

3

Lawn-Boy 18318-ZE8-000

STAY-MUFFLER

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

4

Lawn-Boy 18321-ZF5-000

PROTECTOR-MUFFLER

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

5

Lawn-Boy 18331-ZE2-810

CAP-MUFFLER

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

6

Lawn-Boy 18331-ZF5-000

PIPE-EXHAUST

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

7

Lawn-Boy 18333-ZE3-800

GASKET-PIPE, EXHAUST

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

7

Lawn-Boy 18333-ZK6-Y00

GASKET-PIPE, EXHAUST (WACKER)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

8

Lawn-Boy 18382-ZE9-800

GASKET-PIPE, EXHAUST

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

9

Lawn-Boy 90031-883-000

BOLT-FLANGE (8X16)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

10

Lawn-Boy 90050-ZE1-000

SCREW-TAPPING (5X8)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

11

Lawn-Boy 90055-ZE1-000

SCREW-TAPPING (4X6)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

12

Lawn-Boy 92900-08060-1B

BOLT-STUD (8X60)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

13

Lawn-Boy 92900-08070-1B

BOLT-STUD (8X70)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

14

Lawn-Boy 93500-06006-0A

SCREW-PAN (6X6)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

15

Lawn-Boy 94050-08000

NUT-FLANGE (8MM)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

16

Lawn-Boy 94101-06800

WASHER-PLAIN (6MM)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

17

Lawn-Boy 95701-08014-00

BOLT-FLANGE (8X14)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable
