81230 (Z 320 H) - Lawn-Boy Precision Zero-Turn Mower (SN: 260000001 - 260999999) (2006) FAN COVER ASSEMBLY HONDA GXV390A1 DETR Parts Diagram

Precision Zero-Turn Mower

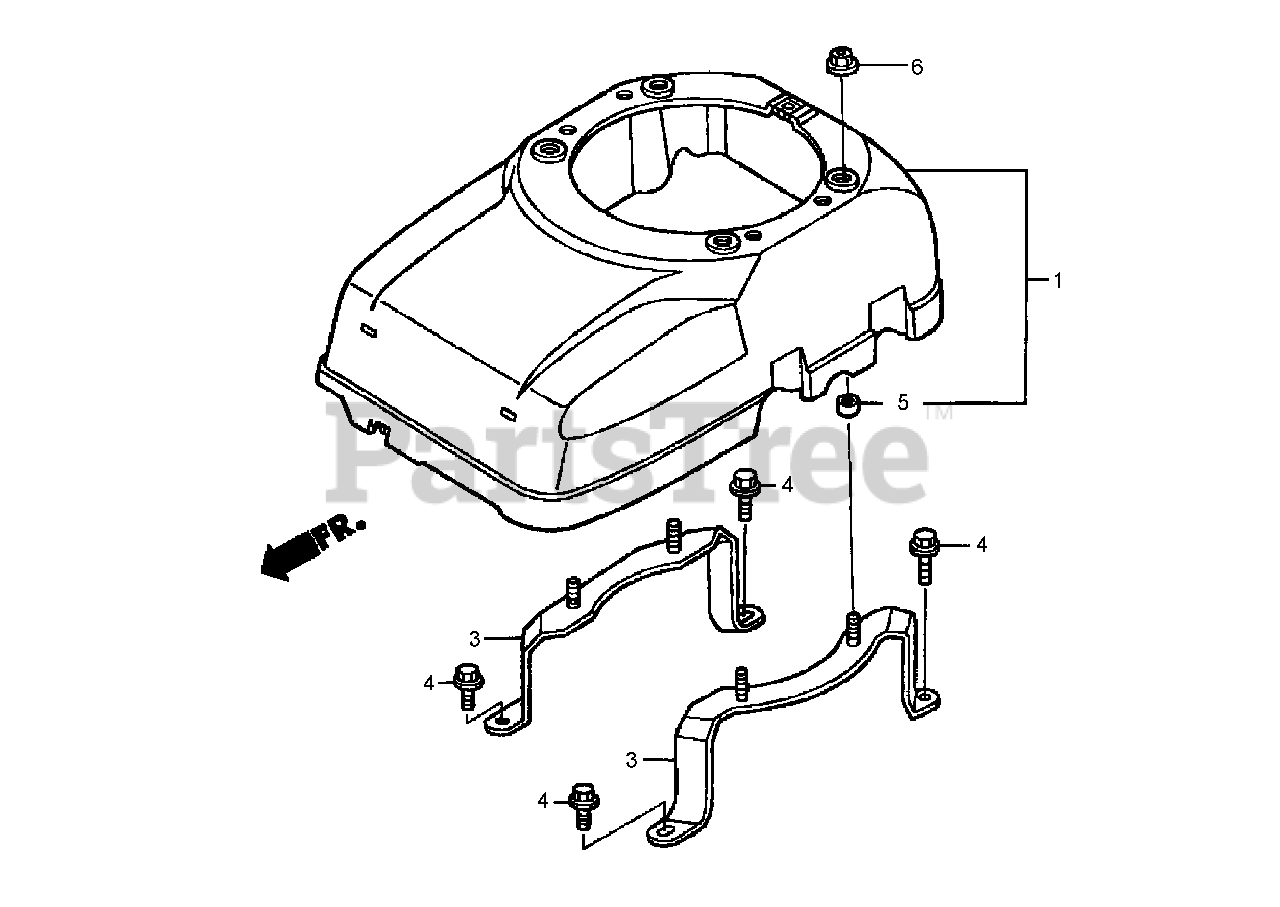

FAN COVER ASSEMBLY HONDA GXV390A1 DETR Parts Diagram

  • Title
1

Lawn-Boy 19610-ZF5-V11ZC

COVER-FAN

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

3

Lawn-Boy 19617-ZF5-V00

BRACKET-COVER, FAN

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

4

Lawn-Boy 90029-888-000

BOLT-FLANGE (6X16) (C T200)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

5

Lawn-Boy 91501-ZF5-V00

COLLAR-COVER, FAN

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

6

Lawn-Boy 94050-06000

NUT-FLANGE (6 mm)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable
