81230 (Z 320 H) - Lawn-Boy Precision Zero-Turn Mower (SN: 260000001 - 260999999) (2006) CRANKSHAFT ASSEMBLY HONDA GXV390A1 DETR Parts Diagram

Precision Zero-Turn Mower

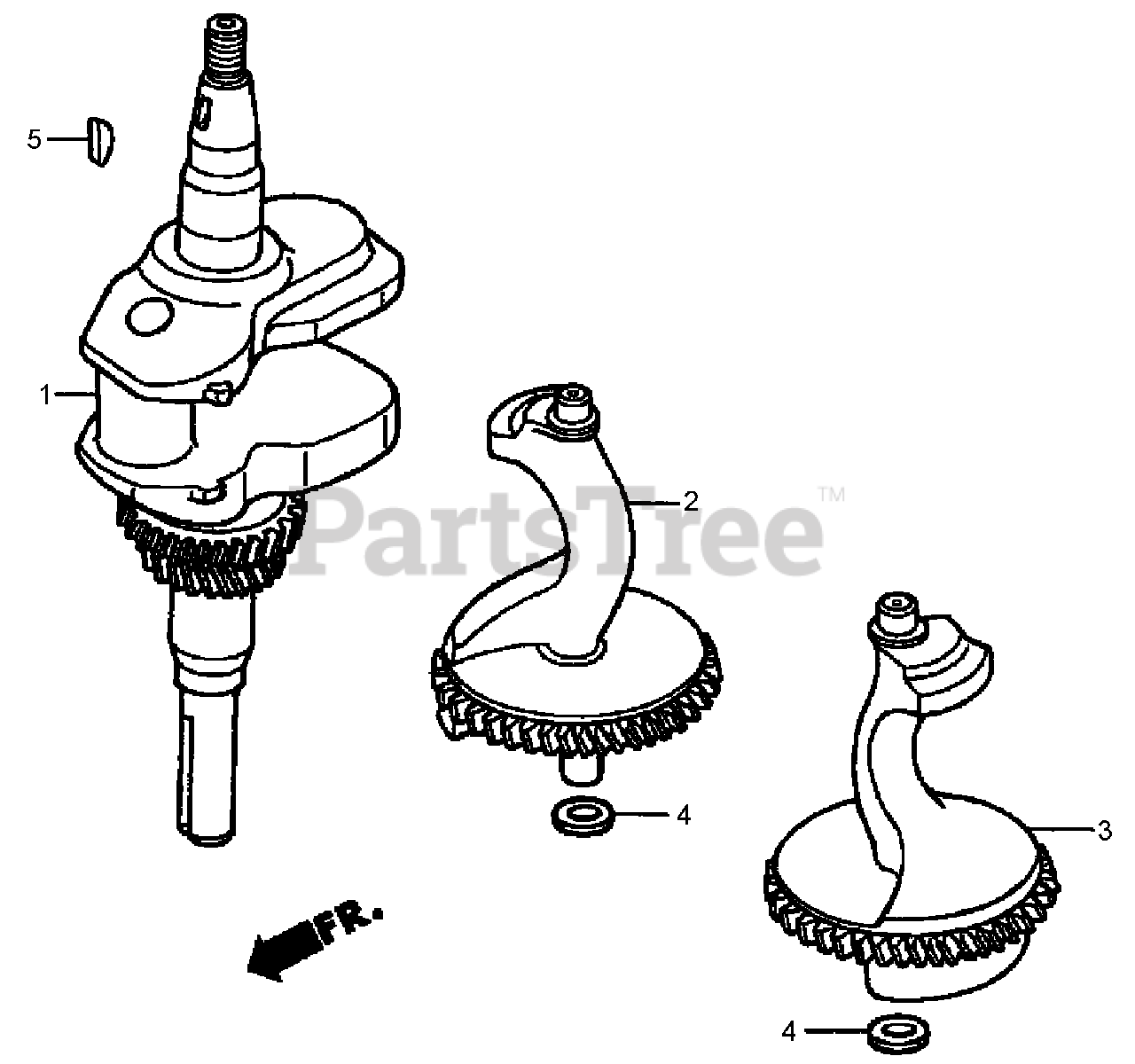

CRANKSHAFT ASSEMBLY HONDA GXV390A1 DETR Parts Diagram

  • Title
1

Lawn-Boy 13310-Z1E-000

CRANKSHAFT

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

2

Lawn-Boy 13351-ZF5-030

BALANCER-WEIGHT A

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

3

Lawn-Boy 13356-ZF5-040

BALANCER-WEIGHT B

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

4

Lawn-Boy 90417-HA0-000

WASHER-THRUST (14MM)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

5

Lawn-Boy 90741-ZE2-000

KEY-WOODRUFF, SPECIAL (25X18)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable
