81230 (Z 320 H) - Lawn-Boy Precision Zero-Turn Mower (SN: 260000001 - 260999999) (2006) AIR CLEANER ASSEMBLY HONDA GXV390A1 DETR Parts Diagram

Precision Zero-Turn Mower

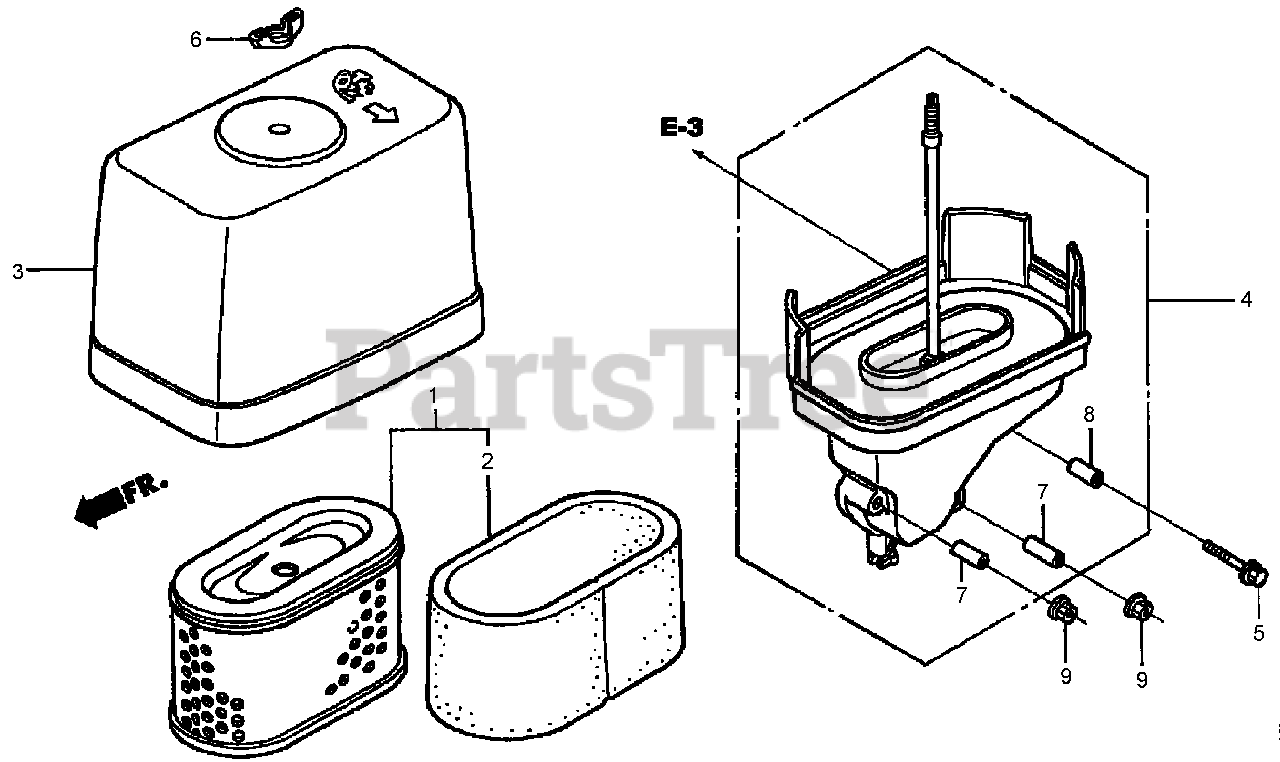

AIR CLEANER ASSEMBLY HONDA GXV390A1 DETR Parts Diagram

  • Title
1

Lawn-Boy 17211-ZF5-V01

ELEMENT-CLEANER, AIR (PLASTIC BASE)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

2

Lawn-Boy 17218-ZF5-V00

FILTER (OUTER)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

3

Lawn-Boy 17231-ZF5-V00

COVER-CLEANER, AIR

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

4

Lawn-Boy 17410-ZF5-V00

ELBOW-CLEANER, AIR

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

5

Lawn-Boy 90014-ZE6-000

BOLT- FLANGE (6X35)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

6

Lawn-Boy 90325-044-000

WINGNUT

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

7

Lawn-Boy 91502-ZF5-V00

COLLAR-CLEANER, AIR

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

8

Lawn-Boy 91503-ZF5-V00

COLLAR-CLEANER, AIR

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

9

Lawn-Boy 94050-06000

NUT-FLANGE (6 mm)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable
