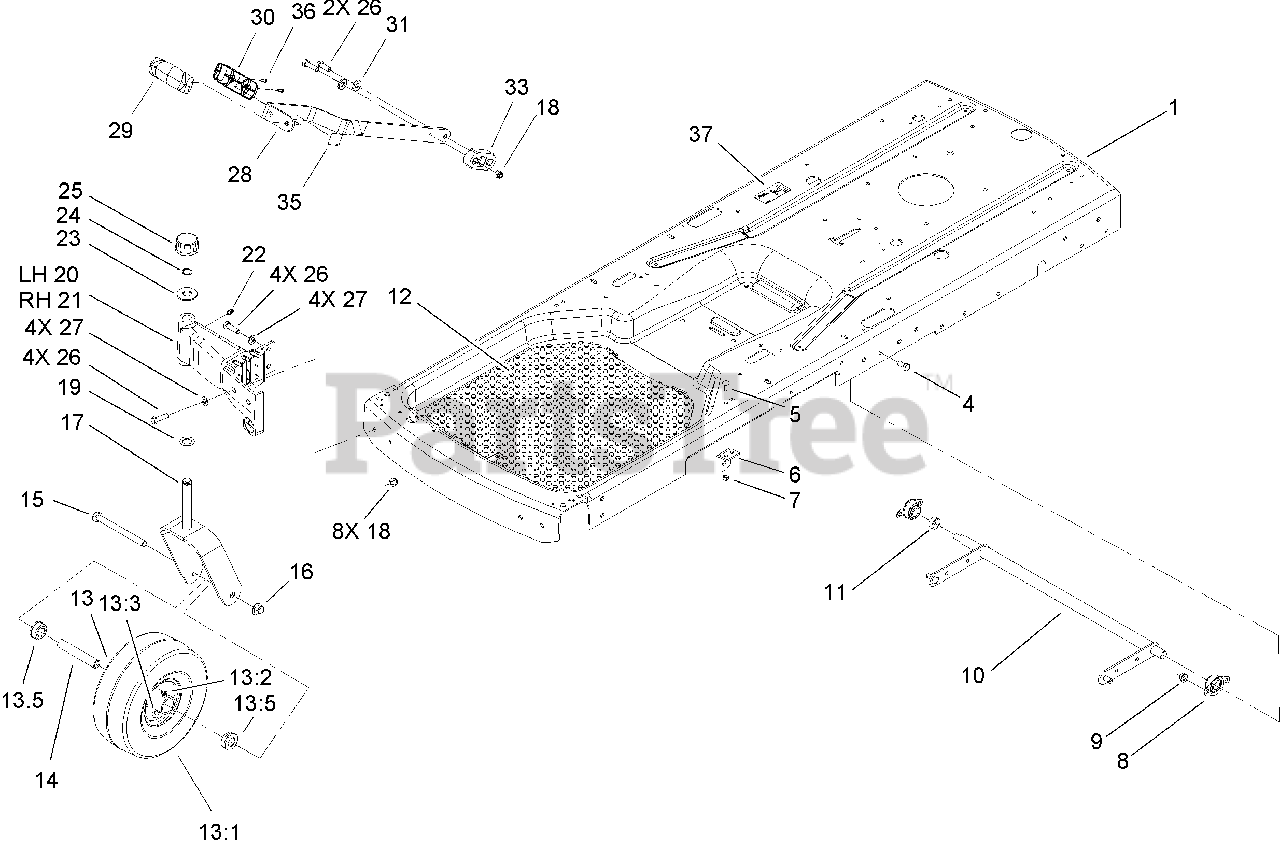

81230 (Z 320 H) - Lawn-Boy Precision Zero-Turn Mower (SN: 250000001 - 250999999) (2005) FRONT FRAME ASSEMBLY Parts Diagram

Precision Zero-Turn Mower

FRONT FRAME ASSEMBLY Parts Diagram

  • Title

$1470.99

$

Usually ships in 3-6 days

0

4

Lawn-Boy 323-4

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

5

Lawn-Boy 3229-1

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

6

Lawn-Boy 105-3439

BRACKET-LIFT

$

$

Not available

7

Lawn-Boy 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

8

Lawn-Boy 1-633102

BEARING-FLANGE, SIDE

$18.99

$

In Stock, only 3 left!

0

9

Lawn-Boy 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

10

Lawn-Boy 105-3499-03

LIFT ARM ASM

$221.99

$

Usually ships in 3-6 days

0

11

$

$

Not available

12

Lawn-Boy 108-6161

FOOTMAT-FRAME

$

$

Not available

13

Lawn-Boy 108-6126

CASTOR WHEEL ASM

$129.99

$

Usually ships in 3-6 days

0

13:1

$62.99

$

In Stock, only 1 left!

0

13:2

Lawn-Boy 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

13:3

Lawn-Boy 232-27

STEM-VALVE
(Superseded to 5108)

$6.99

$

In Stock, Qty 14

0

13:5

Lawn-Boy 114-1640

BUSHING-FLANGE

$12.99

$

In Stock, Qty 20+

0

13:99

Lawn-Boy 93-4244

TUBE-INNER (W/VALVE)

Note: Not illustrated

$16.99

$

In Stock, only 2 left!

0

14

Lawn-Boy 104-3667

SPANNER-WHEEL

$19.99

$

In Stock, Qty 20+

0

15

Lawn-Boy 325-22

SCREW-HH

$8.49

$

In Stock, Qty 7

0

16

$1.99

$

In Stock, only 2 left!

0

17

Lawn-Boy 107-9119-03

CASTOR FORK ASM
(Superseded to 110-6581-03)

$117.99

$

In Stock, only 1 left!

0

18

Lawn-Boy 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

19

Lawn-Boy 3-6498

WASHER-THRUST

$6.99

$

In Stock, Qty 20+

0

20

Lawn-Boy 105-6986-02

CASTOR-LH

Note: Not illustrated

$

$

Not available

21

$

$

Not available

22

Lawn-Boy 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

23

$4.99

$

In Stock, Qty 16

0

24

Lawn-Boy 32151-103

RING-RETAINING, EXT

$3.49

$

In Stock, Qty 20+

0

25

$7.99

$

In Stock, Qty 20+

0

26

Lawn-Boy 323-18

SCREW-HH

$4.99

$

Usually ships in 3-6 days

0

27

Lawn-Boy 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

28

$69.99

$

Usually ships in 3-6 days

0

29

Lawn-Boy 108-2318

HANDLE-TOP

$9.99

$

Usually ships in 3-6 days

0

30

Lawn-Boy 108-2319

HANDLE-BOTTOM

$9.99

$

Usually ships in 3-6 days

0

31

Lawn-Boy 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

33

Lawn-Boy 106-2211

BLOCK-LIFT

$21.99

$

Usually ships in 3-6 days

0

$2.99

$

Usually ships in 3-6 days

0

36

$1.49

$

In Stock, Qty 20+

0

37

Lawn-Boy 108-6109

DECAL-TRANSPORT, CE

$

$

Not available
