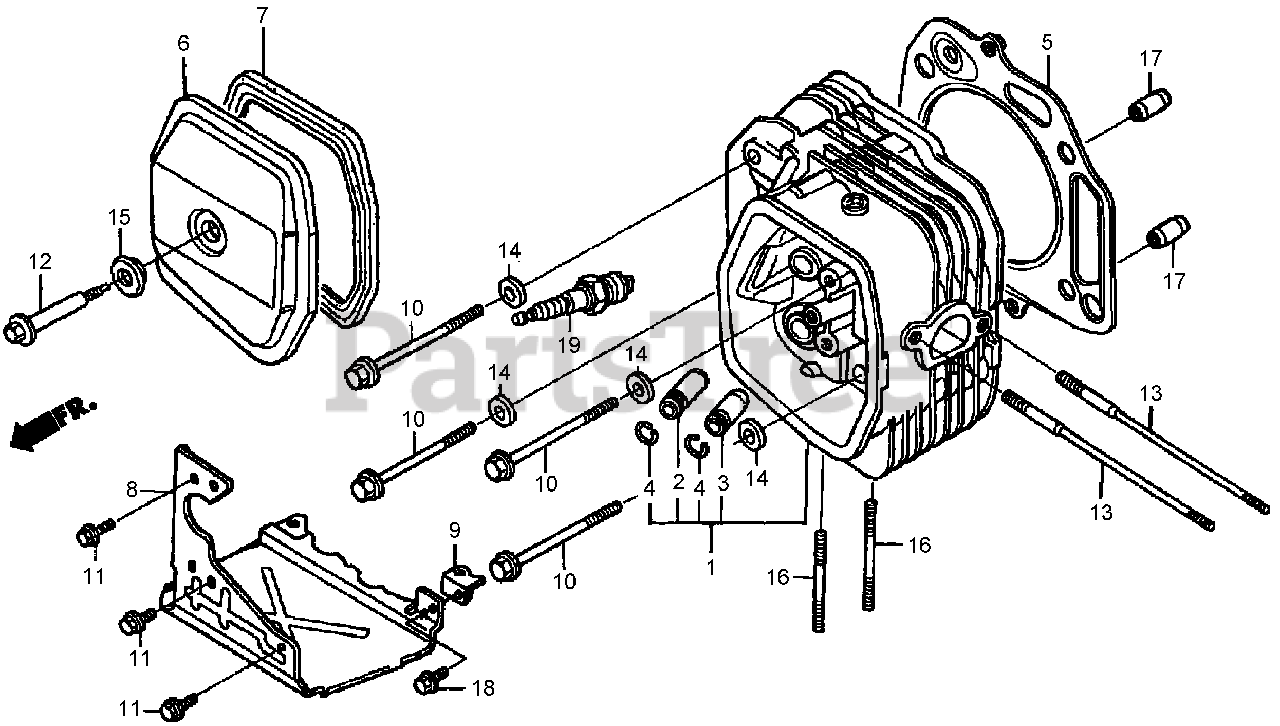

81230 (Z 320 H) - Lawn-Boy Precision Zero-Turn Mower (SN: 250000001 - 250999999) (2005) CYLINDER HEAD ASSEMBLY HONDA GXV390A1 DETR Parts Diagram

Precision Zero-Turn Mower

CYLINDER HEAD ASSEMBLY HONDA GXV390A1 DETR Parts Diagram

  • Title
1

Lawn-Boy 12200-Z1E-405

HEAD-CYLINDER

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

2

Lawn-Boy 12204-ZE2-306

GUIDE-VALVE

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

3

Lawn-Boy 12205-ZE2-305

GUIDE-VALVE, EXHAUST

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

4

Lawn-Boy 12216-ZE2-300

CLIP-GUIDE, VALVE

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

5

Lawn-Boy 12251-ZF5-H03

GASKET-HEAD, CYLINDER

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

6

Lawn-Boy 12310-ZE8-000

COVER-HEAD

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

7

Lawn-Boy 12391-ZE8-000

GASKET-HEAD COVER, CYLINDER

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

8

Lawn-Boy 18345-ZF5-020

COVER (LOWER)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

9

Lawn-Boy 18347-ZE8-000

STAY-COVER (LOWER)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

10

Lawn-Boy 90003-Z1E-000

BOLT-FLANGE (10X85)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

11

Lawn-Boy 90013-883-000

BOLT-FLANGE (6X12) (C T200)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

12

Lawn-Boy 90014-ZE8-000

BOLT-COVER, HEAD

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

13

Lawn-Boy 90042-ZE8-000

BOLT-STUD

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

14

Lawn-Boy 90401-437-000

WASHER-PLAIN (10MM)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

15

Lawn-Boy 90441-ZE2-010

WASHER-HEAD COVER

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

16

Lawn-Boy 92900-08032-0B

BOLT-STUD (8X32)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

17

Lawn-Boy 94301-12200

PIN A-DOWEL

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

18

Lawn-Boy 95701-06012-00

BOLT-FLANGE (6X12)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

19

Lawn-Boy 98079-55846

SPARK PLUG (B P R 5E S) (N G K)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable
