81229 (Z 330 LX) - Lawn-Boy Precision Zero-Turn Mower (SN: 250000001 - 250999999) (2005) SPINDLE AND BELT DRIVE ASSEMBLY Parts Diagram

Precision Zero-Turn Mower

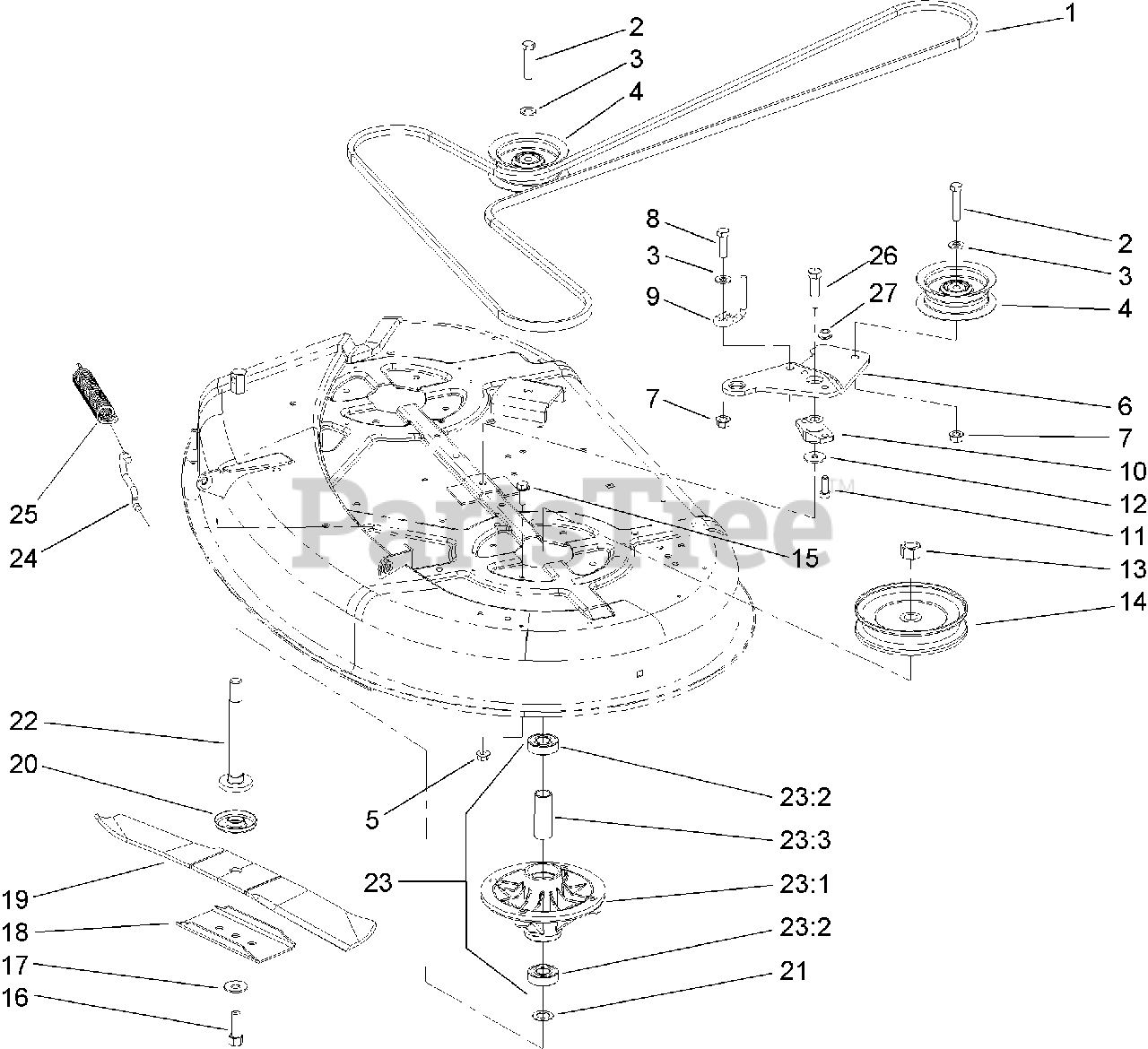

SPINDLE AND BELT DRIVE ASSEMBLY Parts Diagram

  • Title

$94.99

$

In Stock, only 4 left!

0

2

Lawn-Boy 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

3

Lawn-Boy 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 18

0

4

Lawn-Boy 106-2175

PULLEY-IDLER, FLAT
(Superseded to 132-9420)

$34.99

$

In Stock, Qty 20+

0

$3.49

$

In Stock, Qty 12

0

6

$51.99

$

In Stock, only 1 left!

0

$0.99

$

In Stock, Qty 20+

0

8

Lawn-Boy 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

9

Lawn-Boy 107-7307

GUIDE-IDLER, BELT
(Superseded to 138-7270)

$2.99

$

In Stock, Qty 5

0

10

Lawn-Boy 88-4980

BUSHING-ARM, IDLER

$16.99

$

In Stock, only 4 left!

0

11

Lawn-Boy 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

12

Lawn-Boy 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 6

0

13

Lawn-Boy 3219-6

NUT-HEX

$3.99

$

In Stock, Qty 20+

0

14

Lawn-Boy 88-5330

PULLY-DECK

$122.99

$

In Stock, only 2 left!

0

15

Lawn-Boy 32144-41

SCREW-TAPTITE

$5.49

$

In Stock, Qty 20+

0

16

Lawn-Boy 26-0671

SCREW-BLADE

$9.49

$

In Stock, Qty 20+

0

17

Lawn-Boy 3290-465

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

18

Lawn-Boy 106-2248-03

STIFFENER-BLADE

$19.99

$

In Stock, Qty 18

0

$31.99

$

In Stock, Qty 11

0

20

Lawn-Boy 80-4360

SHIELD-BEARING

$18.99

$

In Stock, Qty 13

0

21

$6.99

$

In Stock, Qty 12

0

22

Lawn-Boy 80-4341

SHAFT-SPINDLE

$50.99

$

In Stock, only 1 left!

0

23

Spindle ASM

Note: Not serviced separately

$

$

Not available

23:1

Lawn-Boy 88-4510

HOUSING-SPINDLE

$106.99

$

In Stock, Qty 7

0

23:2

Lawn-Boy 100-1048

BEARING-BALL
(Superseded to 38-7820)

$13.99

$

In Stock, Qty 18

0

23:3

Lawn-Boy 62-3661

SPACER-BEARING

$15.99

$

In Stock, Qty 15

0

24

Lawn-Boy 88-5970

HOOK-RETURN, SPRING
(Superseded to 138-7267)

$2.99

$

In Stock, Qty 8

0

25

Lawn-Boy 106-2177

SPRING-EXTENSION

$14.99

$

In Stock, only 3 left!

0

26

Lawn-Boy 7-0030

BOLT-SHOULDER

$9.49

$

In Stock, only 2 left!

0

27

Lawn-Boy 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0
