81228 (Z 310) - Lawn-Boy Precision Zero-Turn Mower (SN: 250000001 - 250999999) (2005) STYLING ASSEMBLY Parts Diagram

Precision Zero-Turn Mower

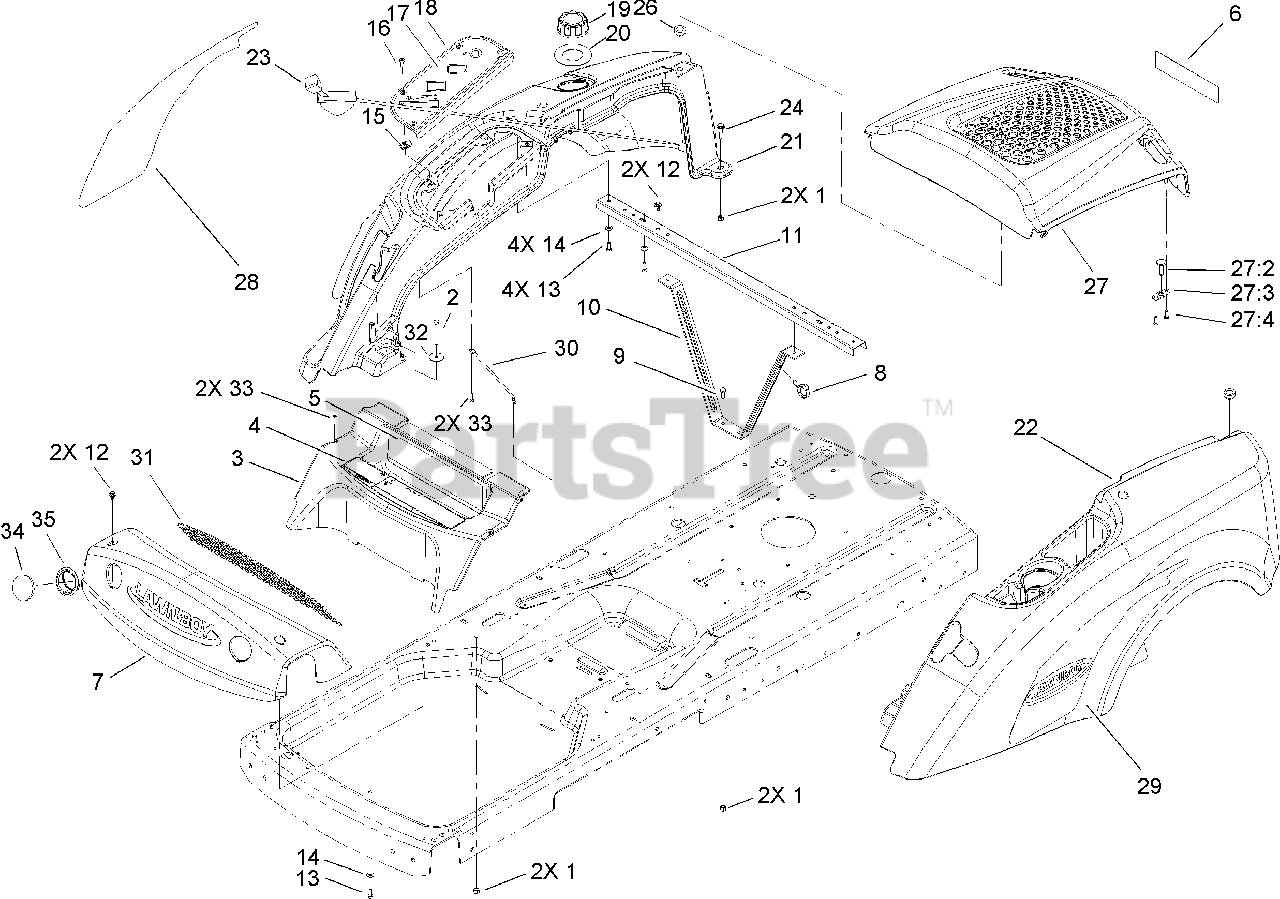

STYLING ASSEMBLY Parts Diagram

  • Title
1

Lawn-Boy 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

2

Lawn-Boy 321-18

SCREW-HH

$2.49

$

In Stock, only 3 left!

0

3

Lawn-Boy 108-2316

PANEL-KICK
(Superseded to 110-6541)

$

$

Not available

4

Lawn-Boy 108-8575

DECAL-DANGER, CE

$

$

Not available

$

$

Not available

6

Lawn-Boy 108-6141

DECAL
(Superseded to 110-6556)

$

$

Not available

7

$

$

Not available

8

Lawn-Boy 105-1853

CLAMP-HOSE

$5.49

$

In Stock, only 4 left!

0

9

Lawn-Boy 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

10

Lawn-Boy 107-9173-03

BRACE-SUPPORT

$

$

Not available

11

Lawn-Boy 108-2313-03

CHANNEL-CROSS

$

$

Not available

12

Lawn-Boy 46-8560

SCREW-HHF

$1.99

$

In Stock, Qty 10

0

13

Lawn-Boy 46-8090

SCREW-PLASTITE

$

$

Not available

14

Lawn-Boy 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

15

$2.99

$

In Stock, Qty 20+

0

16

Lawn-Boy 3258-166

SCREW-PRH

$0.99

$

In Stock, Qty 20+

0

$

$

Not available

18

Lawn-Boy 107-9174-03

PANEL-CONTROL

$

$

Not available

19

Lawn-Boy 93-7198

GAS CAP ASM

$15.99

$

In Stock, only 1 left!

0

20

Lawn-Boy 108-6150

WASHER-SEAL, RUBBER

$3.99

$

In Stock, only 3 left!

0

21

Lawn-Boy 107-9168

COVER-SIDE, RH

$

$

Not available

22

Lawn-Boy 107-9169

COVER-SIDE, LH

$

$

Not available

23

Lawn-Boy 104-3626

CABLE-THROTTLE

$56.99

$

In Stock, only 2 left!

0

24

Lawn-Boy 108-6182

SCREW-SHOULDER

$14.99

$

Usually ships in 3-6 days

0

26

$2.99

$

Usually ships in 3-6 days

0

27

Lawn-Boy 108-2334

HOOD COVER ASM

$

$

Not available

27:2

$12.99

$

Usually ships in 3-6 days

0

27:3

$

$

Not available

27:4

$1.49

$

In Stock, only 3 left!

0

$27.99

$

In Stock, only 1 left!

0

$

$

Not available

30

Lawn-Boy 108-2391

ROD-SUPPORT

$

$

Not available

31

Lawn-Boy 108-6162

FOOTMAT-FOOTREST

$

$

Not available

32

Lawn-Boy 3256-58

WASHER-FLAT
(Superseded to 3256-55)

$5.49

$

In Stock, only 1 left!

0

33

Lawn-Boy 94-4496

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

34

Lawn-Boy 108-7121

DISK-REFLECTOR

$6.49

$

Usually ships in 3-6 days

0

35

Lawn-Boy 107-9178

BEZEL-RUBBER

$

$

Not available
