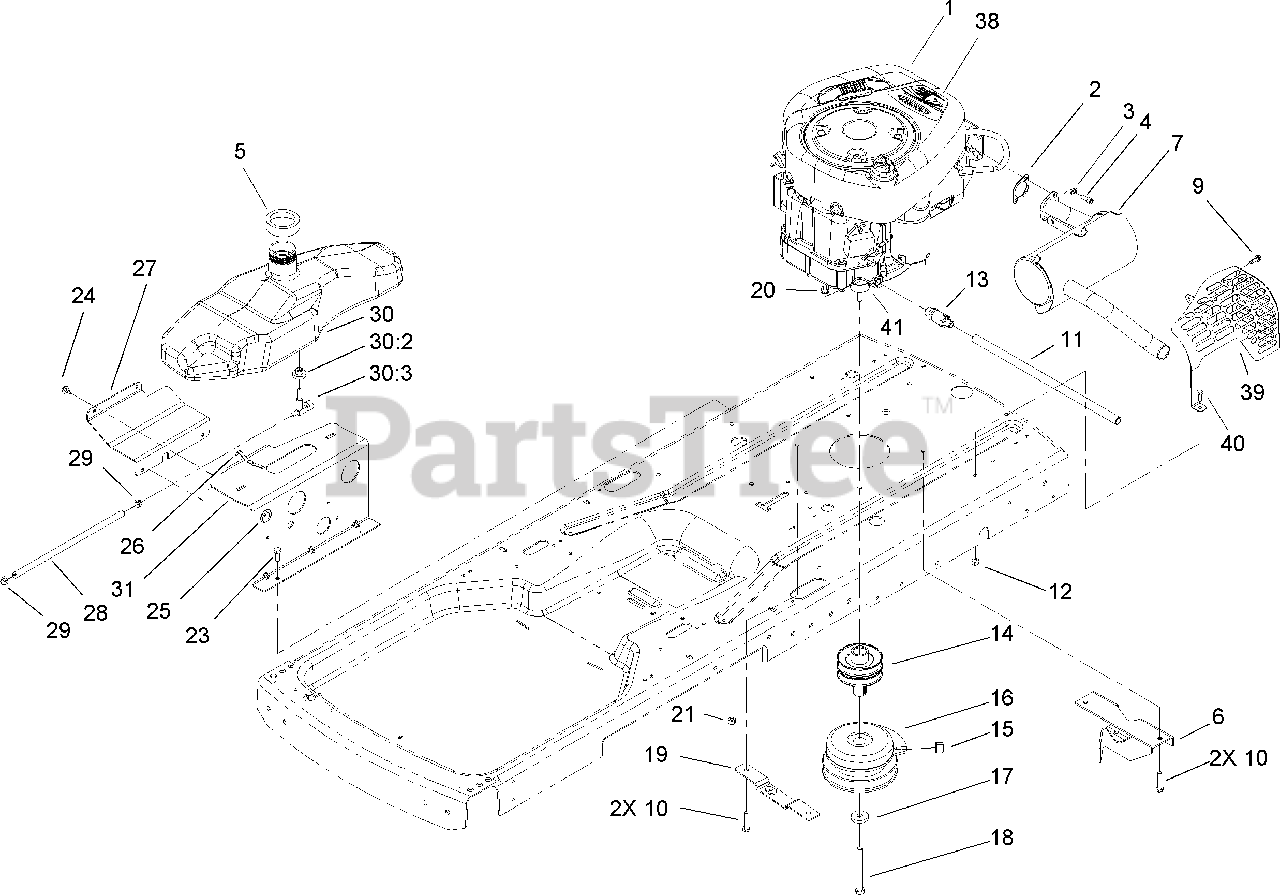

81228 (Z 310) - Lawn-Boy Precision Zero-Turn Mower (SN: 250000001 - 250999999) (2005) ENGINE ASSEMBLY Parts Diagram

Precision Zero-Turn Mower

ENGINE ASSEMBLY Parts Diagram

  • Title
1

ENGINE-BRIGGS and STRATTON, 280H07-0166-E1

Note: Not serviced separately

$

$

Not available

2

Lawn-Boy 88-4410

GASKET-MUFFLER

$16.99

$

In Stock, Qty 6

0

3

Lawn-Boy 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

4

Lawn-Boy 3274-10

SCREW-HSH

$9.99

$

In Stock, Qty 13

0

5

Lawn-Boy 55-9310

SEAL-FOAM

$

$

Not available

6

Lawn-Boy 107-4873

BRACKET-PIVOT

$49.99

$

Usually ships in 3-6 days

0

7

$

$

Not available

9

Lawn-Boy 32144-44

SCREW-HWH

$1.49

$

In Stock, only 3 left!

0

10

Lawn-Boy 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

11

Lawn-Boy 106-7022

TUBE-DRAIN, OIL

$8.99

$

In Stock, only 1 left!

0

12

Lawn-Boy 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

13

Lawn-Boy 92-6877

VALVE-DRAIN, OIL

$39.99

$

In Stock, only 1 left!

0

14

Lawn-Boy 105-3472

PULLEY-ENGINE

$211.99

$

Usually ships in 3-6 days

0

15

$6.99

$

Usually ships in 3-6 days

0

16

Lawn-Boy 105-3462

CLUTCH-ELECTRIC

$911.99

$

Usually ships in 3-6 days

0

17

$3.49

$

In Stock, Qty 12

0

18

Lawn-Boy 3212-16

SCREW-HH

$19.99

$

In Stock, Qty 12

0

19

Lawn-Boy 106-2156

PLATE-MOUNT, IDLER

$32.99

$

Usually ships in 3-6 days

0

20

$3.49

$

In Stock, Qty 12

0

21

Lawn-Boy 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 14

0

23

Lawn-Boy 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

24

Lawn-Boy 46-8560

SCREW-HHF

$1.99

$

In Stock, Qty 10

0

25

$2.99

$

In Stock, only 1 left!

0

26

$5.49

$

In Stock, Qty 6

0

27

Lawn-Boy 108-2315-03

PLATE-SUPPORT

$

$

Not available

28

Lawn-Boy 106-8720

HOSE-FUEL

$

$

Not available

29

$1.49

$

In Stock, Qty 20+

0

30

Lawn-Boy 107-9172

FUEL TANK ASM

$

$

Not available

30:2

$5.99

$

In Stock, Qty 20+

0

30:3

Lawn-Boy 104048

VALVE-FUEL

$31.99

$

In Stock, only 1 left!

0

31

$

$

Not available

38

Lawn-Boy 108-8528

DECAL-ENGINE

$

$

Not available

39

Lawn-Boy 106-7028-03

GUARD-MUFFLER

$217.99

$

Usually ships in 3-6 days

0

40

Lawn-Boy 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

41

Lawn-Boy 88-4490

REDUCER-THROTTLE, RPM

$18.99

$

Usually ships in 3-6 days
