81228 (Z 310) - Lawn-Boy Precision Zero-Turn Mower (SN: 250000001 - 250999999) (2005) CARBURETOR ASSEMBLY BRIGGS AND STRATTON 280H07-0166-E1 Parts Diagram

Precision Zero-Turn Mower

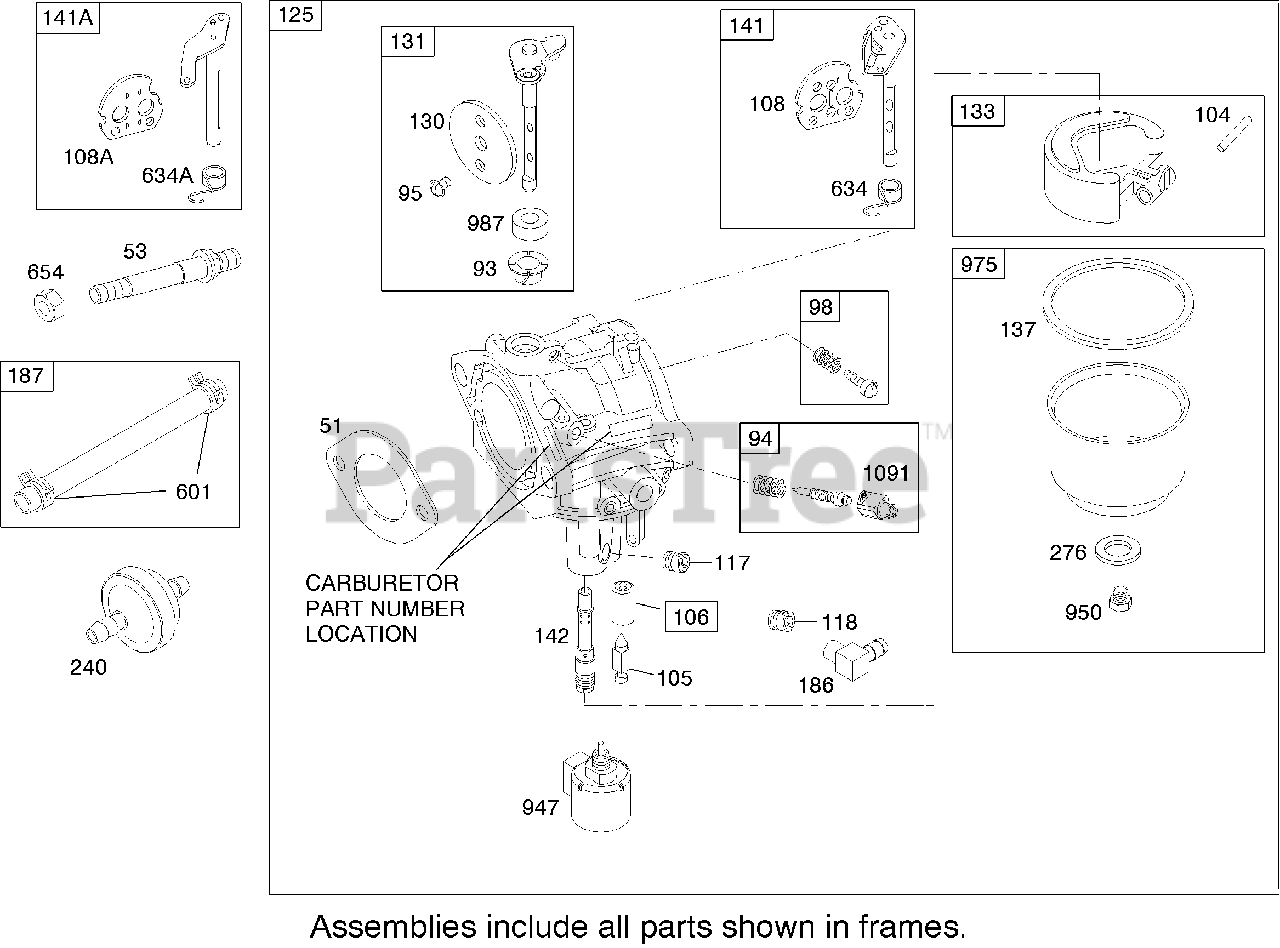

CARBURETOR ASSEMBLY BRIGGS AND STRATTON 280H07-0166-E1 Parts Diagram

  • Title

51

Lawn-Boy 692137

Gasket-Intake

Note: Included in Carburetor Gasket Set-Ref. 977. Included in Carburetor Overhaul Kit-Ref. 121. Included in Engine Gasket Set-Ref. 358. Included in Valve Gasket Set-Ref. 1095. Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

53

Lawn-Boy 690227

Stud

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

93

Lawn-Boy 690602

Bushing-Shaft, Throttle

Note: Included in Carburetor Overhaul Kit-Ref. 121. Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

94

Lawn-Boy 498030

Idle Mixture Kit

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

95

Lawn-Boy 691636

Screw

Note: Included in Carburetor Overhaul Kit-Ref. 121. Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

98

Lawn-Boy 495800

Idle Speed Kit

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

104

Lawn-Boy 690525

Pin-Hinge, Carburetor Float

Note: Included in Carburetor Overhaul Kit-Ref. 121. Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

105

Lawn-Boy 231855

Valve-Needle, Float

Note: Included in Carburetor Overhaul Kit-Ref. 121. Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

106

Lawn-Boy 690577

Seat-Inlet

Note: Included in Carburetor Overhaul Kit-Ref. 121. Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

108

Lawn-Boy 690464

ValveChoke

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

108A

Lawn-Boy 692344

Valve-Choke

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

117

Lawn-Boy 694352

Jet-Main (Std)

Note: Included in Carburetor Overhaul Kit-Ref. 121. Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

118

Lawn-Boy 697228

Jet-Main (High Altitude)

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

125

Lawn-Boy 697190

Carburetor

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

130

Lawn-Boy 691750

Valve-Throttle

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

131

Lawn-Boy 494379

Throttle Shaft Kit

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

133

Lawn-Boy 494381

Float-Carburetor

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

137

Lawn-Boy 281165

Gasket-Bowl, Float

Note: Included in Carburetor Gasket Set-Ref. 977. Included in Carburetor Overhaul Kit-Ref. 121. Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

141

Lawn-Boy 495097

Choke Shaft Kit

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

141A

Lawn-Boy 495931

Choke Shaft Kit

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

142

Lawn-Boy 697140

Nozzle-Carburetor

Note: Included in Carburetor Overhaul Kit-Ref. 121. Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

186

Lawn-Boy 692317

Connector-Hose

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

187

Lawn-Boy 697098

Line-Fuel

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

240

Lawn-Boy 394358

Filter-Fuel

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

276

Lawn-Boy 692255

Washer-Sealing

Note: Included in Carburetor Gasket Set-Ref. 977. Included in Carburetor Overhaul Kit-Ref. 121. Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

601

Lawn-Boy 95162

Clamp-Hose

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

634

Lawn-Boy 690801

Spring / Seal ASM

Note: Included in Carburetor Overhaul Kit-Ref. 121. Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

634A

Lawn-Boy 690802

Spring and Seal Asm

Note: Included in Carburetor Overhaul Kit-Ref. 121. Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

654

Lawn-Boy 690958

Nut

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

947

Lawn-Boy 694393

Solenoid-Fuel

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

950

Lawn-Boy 691657

Screw

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

975

Lawn-Boy 495933

Bowl-Float

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

987

Lawn-Boy 691326

Seal-Shaft, Throttle

Note: Included in Carburetor Overhaul Kit-Ref. 121. Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

1091

Lawn-Boy 691333

Cap-Limiter

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable
