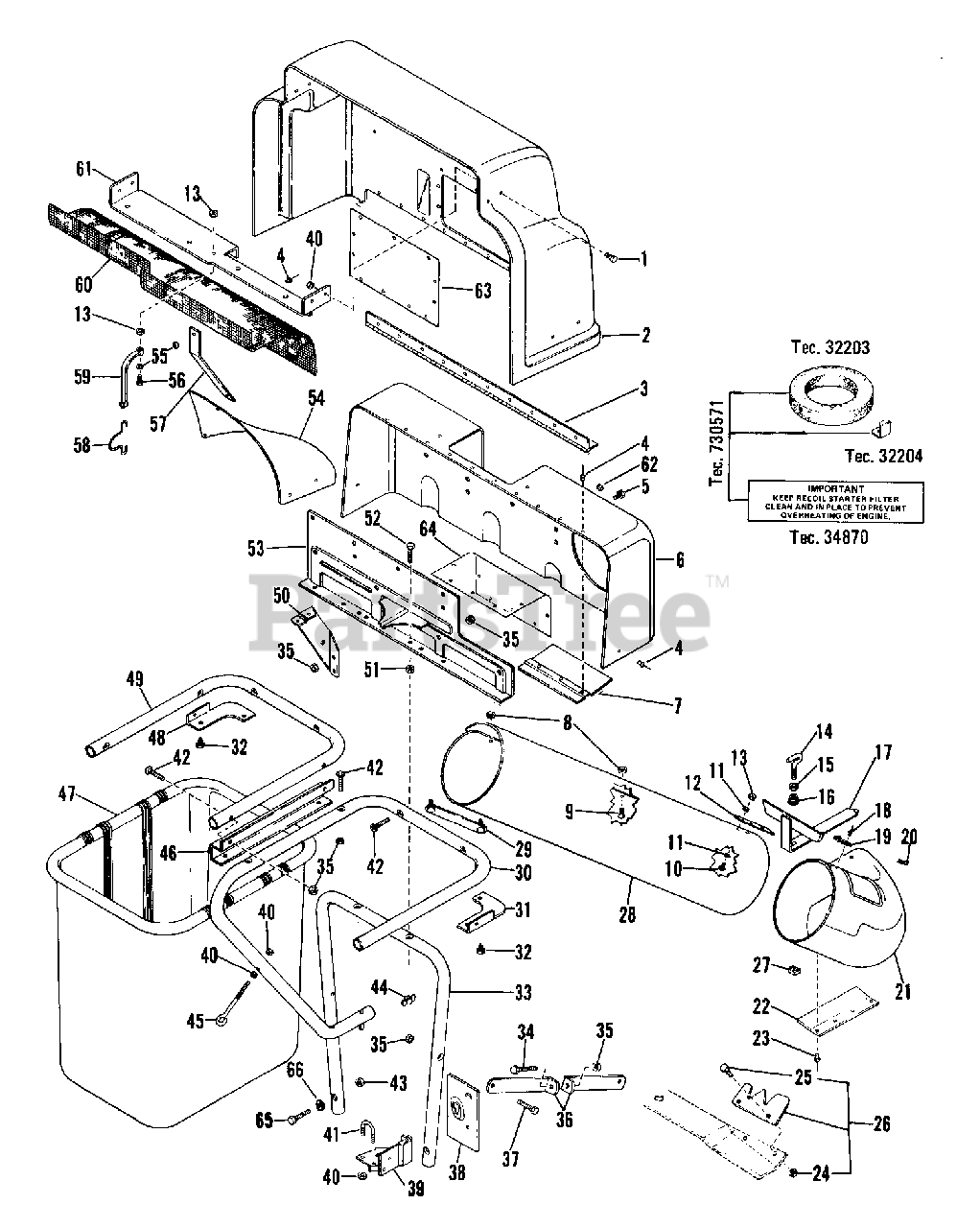

812005 - Ariens FM26 Grass Bagger (SN: 000101 & Above) Bagger 28" Parts Diagram

FM26 Grass Bagger

Bagger 28" Parts Diagram

  • Title

1

Ariens 05902800

BLT-HEX .25-20X.50 PL GR2
(Superseded to 05947900)

$0.99

$

In Stock, Qty 20+

0

2

Ariens 51202200

HINGED COVER W/DECALS
(Superseded to 51202500)

$

$

Not available

3

Ariens 02725300

HINGE

$

$

Not available

4

Ariens 06802500

RVT-POP .187X.402 DOME ST

$1.49

$

In Stock, Qty 10

0

5

Ariens 06104200

SCR-MCH .31-18X.75 TSKBHD PL
(Superseded to 05947000)

$1.49

$

In Stock, Qty 20+

0

6

Ariens 51202700

STATIONARY COVER

$

$

Not available

7

Ariens 03558500

TUBE GUIDE
(Superseded to 53506300)

$

$

Not available

8

Ariens 06505600

NUT-LK-FLG .250-20 PL
(Superseded to 06530100)

$0.99

$

In Stock, Qty 20+

0

9

Ariens 06205300

BLT-RDHDSQNK .25-20X.50 SHT PL
(Superseded to 06220600)

$0.99

$

In Stock, Qty 20+

0

10

Ariens 06101200

SCR-MCH 10-24X.50 SLRH PL
(Superseded to 06117600)

$2.99

$

Usually ships in 4-12 days

0

11

Ariens 06414100

WSHR-FL-STL .219X.500X.049 PL
(Superseded to 06442700)

$0.99

$

Usually ships in 4-12 days

0

12

Ariens 03558400

STRAP

$

$

Not available

13

Ariens 06504100

NUT-LK TOP 10-24 PL

$1.99

$

Usually ships in 4-12 days

0

14

Ariens 03073300

CLAMP SCREW

$

$

Not available

15

Ariens 06509000

NUT-LK-TWIN .312-18 PL

$

$

Not available

16

Ariens 06507800

NUT-FLG. .312-18 PL
(Superseded to 06530400)

$1.49

$

In Stock, Qty 20+

0

17

Ariens 01232800

BRACKET

$

$

Not available

18

Ariens 06806200

RVT-TBLR .187X.375 OH ST PL

$1.49

$

Usually ships in 4-12 days

0

19

Ariens 02539600

RETAINER

$

$

Not available

20

Ariens 06702900

PIN-HAIR INT .09X.188 PL

$2.49

$

Usually ships in 4-12 days

0

21

Ariens 52705400

BOOT ASSEMBLY 32"

$172.99

$

In Stock, only 1 left!

0

22

Ariens 02532200

EXTENSION CHUTE

$

$

Not available

23

Ariens 06805300

RVT .187X.343 TR ST PL

$

$

Not available

24

Ariens 06514500

NUT-LK TOP .312-24 PL GR C

$

$

Not available

25

Ariens 05920600

BLT-HEX .31-24X.75 GR8
(Superseded to 05970500)

$2.49

$

Usually ships in 4-12 days

0

26

Ariens 52701100

SERVICE VANE PACKAGE

$45.99

$

Usually ships in 4-12 days

0

27

Ariens 07009400

NUT-RTNR .31-18 TINRMAN

$

$

Not available

28

Ariens 01236800

TUBE BLANK

$

$

Not available

29

Ariens 02533300

CLIP

$

$

Not available

30

Ariens 02724800

RIGHT TUBE

$

$

Not available

31

Ariens 02725000

RH CORNER BRACKET

$

$

Not available

32

Ariens 07401400

SCR-TAP .312-18X.50 HWH PL TR
(Superseded to 07411500)

$1.49

$

In Stock, Qty 20+

0

33

Ariens 01229700

BAR SUPPORT

$

$

Not available

34

Ariens 05907400

BLT-HEX .31-18X2.75 PL GR2
(Superseded to 05960600)

$2.49

$

In Stock, only 2 left!

0

35

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

36

Ariens 01228300

BRACKET - ADJUSTMENT

$

$

Not available

37

Ariens 05904500

BLT-HEX .31-18X1.50 PL GR2
(Superseded to 05952400)

$1.49

$

In Stock, Qty 13

0

38

Ariens 01226200

BRACKET ADAPTER

$

$

Not available

39

Ariens 01231300

BRACKET MOUNTING

$

$

Not available

40

Ariens 06504000

NUT-LK-CTR .250-20 PL
(Superseded to 06529700)

$0.99

$

In Stock, Qty 20+

0

41

Ariens 00213700

U BOLT

$

$

Not available

42

Ariens 06105200

SCR-MCH .31-18X1.50 CROVCNTRS
(Superseded to 06119100)

$

$

Not available

43

Ariens 06506200

NUT-LK-NYL.312-18 PL
(Superseded to 06530200)

$0.99

$

In Stock, Qty 20+

0

44

Ariens 06511300

NUT-WING W/INSERT .312 - 18
(Superseded to 06537100)

$5.99

$

In Stock, only 1 left!

0

45

Ariens 02432700

EYEBOLT
(Superseded to 02440100)

$10.99

$

Usually ships in 4-12 days

0

46

Ariens 02724700

TUBE BRACKET

$

$

Not available

47

Ariens 02724400

GRASS BAGGER BASKET

$79.99

$

Usually ships in 4-12 days

0

48

Ariens 02725100

LH CORNER BRACKET

$

$

Not available

49

Ariens 02724600

CENTER TUBE
(Superseded to 02724651)

$44.99

$

Usually ships in 4-12 days

0

50

Ariens 02725200

BRACE

$

$

Not available

51

Ariens 06501500

NUT-HEX .312-18
(Superseded to 06529200)

$0.99

$

In Stock, Qty 10

0

52

Ariens 05921500

BLT-HEX .31-18X1.50 GR2 YWZC

$2.49

$

Usually ships in 4-12 days

0

53

Ariens 01232100

MOUNTING BRACKET

$13.99

$

Usually ships in 4-12 days

0

54

Ariens 02731200

BAFFLE

$

$

Not available

55

Ariens 06406800

WSHR-FL-STL .194X.492X.047 PL
(Superseded to 06444400)

$1.99

$

Usually ships in 4-12 days

0

56

Ariens 06101600

SCR-MCH 10-24X.88 SLRH PL
(Superseded to 06119200)

$

$

Not available

57

Ariens 02731100

BRACE

$

$

Not available

58

Ariens 02738100

HOOK

$6.99

$

In Stock, Qty 5

0

59

Ariens 07507500

BATTERY STRAP

$14.99

$

Usually ships in 4-12 days

0

60

Ariens 02730500

SCREEN

$

$

Not available

61

Ariens 02730600

COVER BRACKET

$

$

Not available

62

Ariens 06407900

WSHR-FL-STL .344X1.125X.063PL
(Superseded to 06425500)

$2.49

$

In Stock, only 2 left!

0

63

Ariens 02742700

STATIONARY COVER WINDOW

$

$

Not available

64

Ariens 02724900

STATIONARY COVER

$

$

Not available

65

Ariens 05904500

BLT-HEX .31-18X1.50 PL GR2
(Superseded to 05952400)

$1.49

$

In Stock, Qty 13

0

66

Ariens 06412300

WSHR-FL-STL.344X.688X.065PL
(Superseded to 06437200)

$0.99

$

In Stock, Qty 20+

0
