812 (590-812-100) - Cub Cadet Front End Loader, 48" Bucket Front Loader Hydraulics Parts Diagram

Front End Loader, 48" Bucket

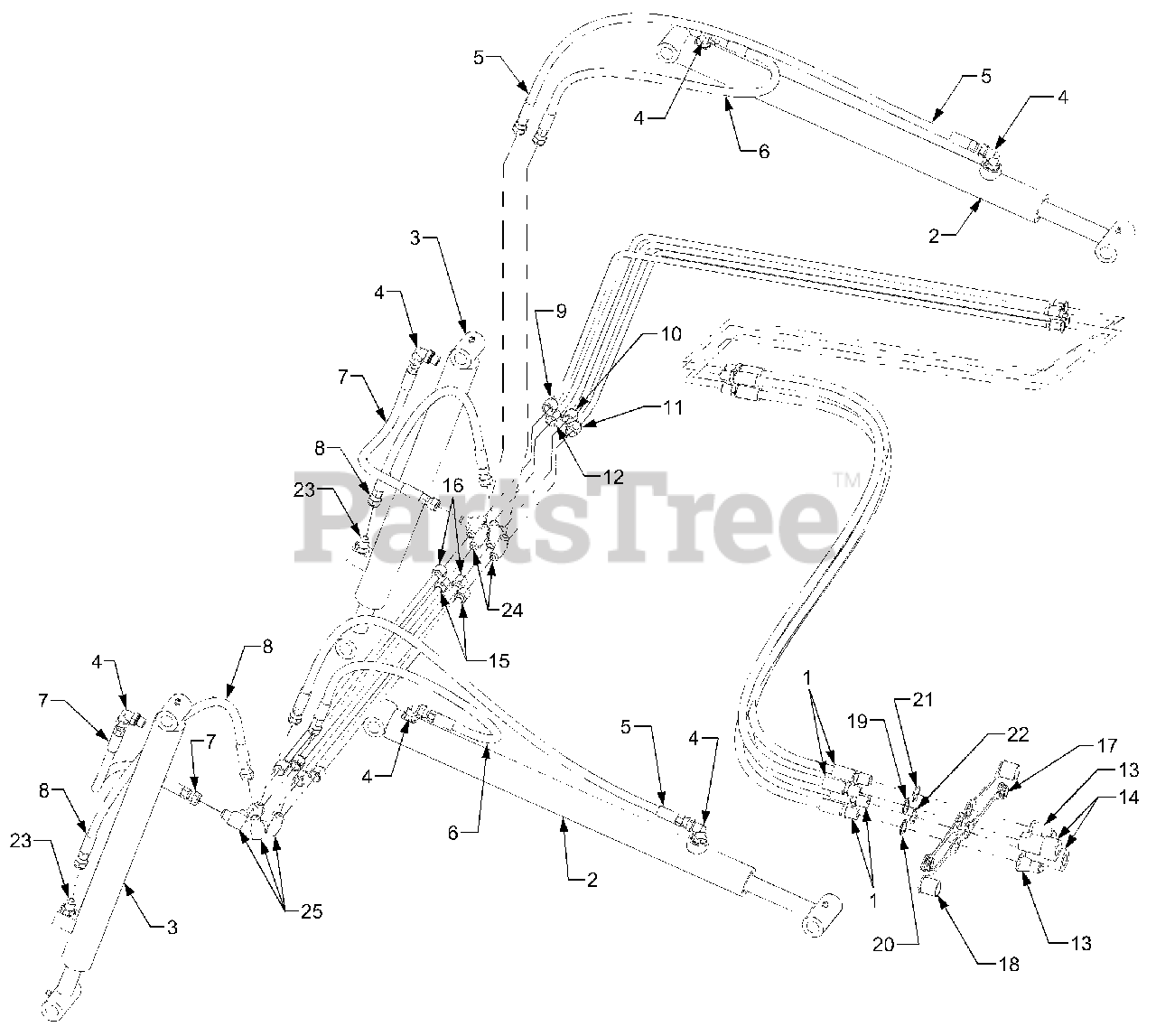

Front Loader Hydraulics Parts Diagram

  • Title
1

Cub Cadet 717-3222

Hose, Hydraulic, 3/8 ID

$

$

Not available

2

Cub Cadet 717-3516

Cylinder, Loader Boom

$968.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 717-3517

Cylinder, Loader Bucket

$

$

Not available

4

Cub Cadet 727-3012

Fitting, 90 Degree Orb

$26.99

$

In Stock, only 4 left!

0

5

Cub Cadet 727-3214

Hose, Hydraulic, 3/8 ID

$

$

Not available

6

Cub Cadet 727-3215

Hose, Hydraulic, 3/8 ID

$84.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 727-3216

Hose, Hydraulic, 3/8 ID

$

$

Not available

8

Cub Cadet 727-3217

Hose, Hydraulic, 3/8 ID

$

$

Not available

9

Cub Cadet 727-3218

Tube, Hydraulic

$

$

Not available

10

Cub Cadet 727-3219

Tube, Hydraulic

$

$

Not available

11

Cub Cadet 727-3220

Tube, Hydraulic

$

$

Not available

12

Cub Cadet 727-3221

Tube, Hydraulic

$

$

Not available

13

Cub Cadet 727-3224

Coupling, Hydraulic, 3/8-18 Male

$118.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 727-3225

Coupling, Hydraulic, 3/8-18 Female

$89.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 727-3246

Tube, Hydraulic

$

$

Not available

16

Cub Cadet 727-3247

Tube, Hydraulic

$

$

Not available

17

Cub Cadet 727-3261

Plug, Hydraulic Coupler, Male

$

$

Not available

18

Cub Cadet 727-3262

Plug, Hydraulic Coupler, Female

$

$

Not available

19

Cub Cadet 731-3374

Washer, Indicator, Red

$11.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 731-3375

Washer, Indicator, Yellow

$

$

Not available

21

Cub Cadet 731-3376

Washer, Indicator, Green

$

$

Not available

22

Cub Cadet 731-3377

Washer, Indicator, Blue

$

$

Not available

23

Cub Cadet 737-3125

Fitting, Straight

$

$

Not available

24

Cub Cadet 737-3137

Fitting, Union Tee

$

$

Not available

25

Cub Cadet 737-3138

Fitting, Union Tee

$

$

Not available
