81191 (LT 13 H) - Lawn-Boy Lawn Tractor (SN: 005900001 - 005999999) (1995) HYDROGEAR TRANSAXLE NO. 92-8783 Parts Diagram

Lawn Tractor

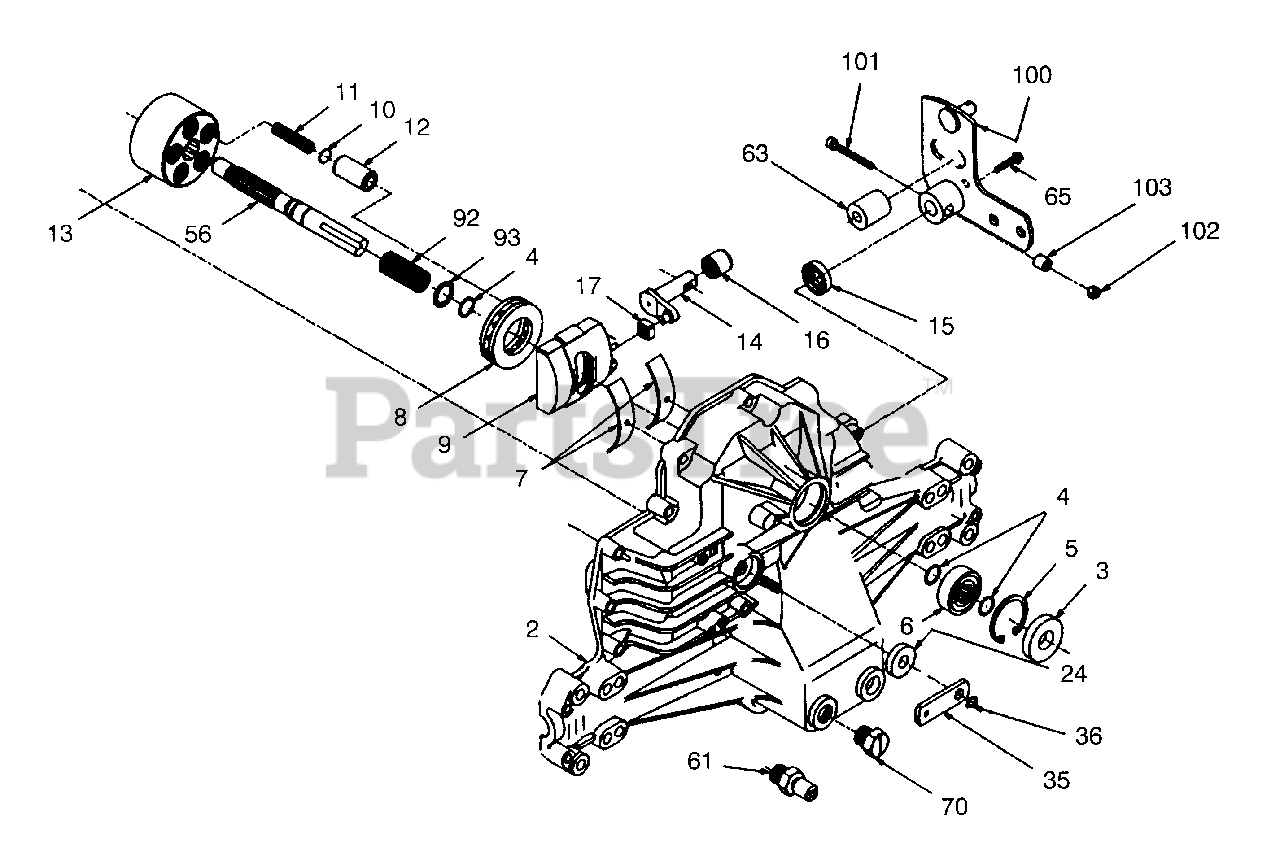

HYDROGEAR TRANSAXLE NO. 92-8783 Parts Diagram

  • Title

2

Housing-Upper

$

$

Not available

3

Lawn-Boy 92-6453

Seal-Lip

$

$

Currently unavailable

4

Ring-Wire Retaining

$

$

Not available

5

Ring-Retaining

$

$

Not available

6

Bearing-Shaft Ball

$

$

Not available

7

Bearing-Cradle

$

$

Not available

8

Bearing-Thrust

$

$

Not available

9

Swashplate-Variable

$

$

Not available

10

Washer-Piston Thrust

$

$

Not available

11

Spring-Piston

$

$

Not available

12

Piston

$

$

Not available

13

Block Cylinder (Motor)

$

$

Not available

14

Arm-Trunnion

$

$

Not available

15

Lawn-Boy 92-6455

Seal-Lip

$

$

Currently unavailable

16

Bearing-Trunnion Journal

$

$

Not available

17

Guide-Slot

$

$

Not available

24

Lawn-Boy 92-6545

Seal-Lip

$17.99

$

Usually ships in 3-6 days

0

26

Plate-Bypass

$

$

Not available

35

Lawn-Boy 92-6547

Arm-Bypass

$

$

Not available

36

Lawn-Boy 936109

Ring-Retaining

$11.99

$

Usually ships in 3-6 days

0

56

Shaft-Input

$

$

Not available

61

Lawn-Boy 92-6548

Breather Ass'y
(Superseded to 94-1945)

$43.99

$

Usually ships in 3-6 days

0

63

Spacer

$

$

Not available

65

Bolt

$

$

Not available

70

Plug-Plastic

$

$

Not available

92

Spring-Block

$

$

Not available

93

Washer-Block Thrust

$

$

Not available

100

Lawn-Boy 92-6015

Control Arm Ass'y
(Superseded to 92-9792)

$

$

Not available

101

Lawn-Boy 3274-59

Socket Head Cap Screw

$1.49

$

Usually ships in 3-6 days

0

102

Lawn-Boy 3296-12

Nut

$1.49

$

In Stock, Qty 6

0

103

Lawn-Boy 86-4270

Spacer

$

$

Not available
